Wilwood Brakes Forged Dynapro 6A Lug Mount 120-14024-N

Wilwood Brakes Forged Dynapro 6A Lug Mount 120-14024-N
Wilwood Brakes Forged Dynapro 6A Lug Mount 120-14024-NWilwood Brakes Forged Dynapro 6A Lug Mount 120-14024-N
$903.99 ea
NEWOut of stock with WILWOOD ENGINEERING as of 09/21/2023
Model: 3924562
Supplier has not provided any fitment data for this product.

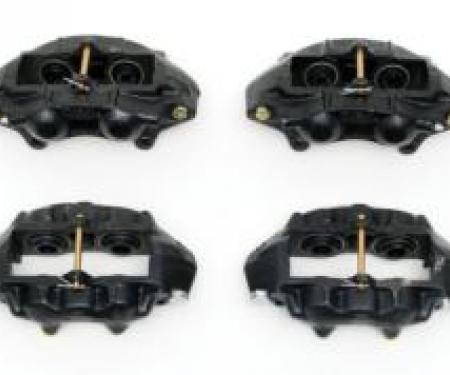

Wilwood's newest DynaPro DP6A Calipers combine pure-bred racing technology with contemporary design to deliver superior braking and high-tech style on a wide range of custom, show, and competition vehicles. This newest model in the DynaPro series features a reinforced triple bridge construction, with five high strength steel bridge bolts, making it the strongest and stiffest DP6 caliper ever built. Offers direct interchange with all 5.25” pattern lug mount DynaPro and Dynalite calipers. With Forged aluminum, six piston differential bore body and stainless steel pistons with high temperature seals. DP6A calipers accommodate rotors up to 13”inch diameter and widths from .38” to 1.10”. DP6A calipers are available in gloss black or red powder coat, Type III Ano, or Wilwood's Quick-Silver nickel plating.

About Wilwood Engineering

Wilwood Engineering designs and manufactures high-performance disc brake systems. Since the company’s inception in 1977 by Bill Wood, we have developed a substantial matrix of brake components and engineering techniques that allow us to quickly and reliably create brake systems for almost any application. Our core ability is the rapid development of custom engineered brake systems using a combination of off-the-shelf and custom components. In addition to designing and manufacturing brakes for all types of competitive motor sports, Wilwood also manufactures brake systems and components for agricultural equipment, industrial applications, utility vehicles, snowmobiles, quads, motorcycles and military vehicles.

With headquarters in Camarillo, California, Wilwood employs approximately 250 people. We have on-shelf stock of more than 300 different brake calipers, 200 rotor designs, 100 master cylinder designs and a wide assortment of brackets, fittings, valves and brake lines. Our off-shelf brake calipers range in size from tiny calipers used on go-carts and light duty industrial equipment, to heavy duty original equipment brakes for the U.S. military Humvee.

Wilwood's engineering department uses the latest computer-aided design and manufacturing techniques in conjunction with finite element analysis, dynamic test and cycle test equipment, to find high-performance and reliability solutions for the most difficult braking tasks. Our extensive inventory of proprietary on-the-shelf components allow us to provide cost-effective solutions for unique brake applications.

Wilwood is ISO 9000 compliant and has extensive experience maintaining quality levels of 100ppm or less for original equipment manufacturers.


Download Name File Size


Parts & Accessories
Bleed Screw Kit 220-0627
Cross-Over O-Ring Kit 130-10540
O-Ring Kit 130-10535
Replacement Piston 1 200-9615
Replacement Piston 2 200-9616
Replacement Piston 3 200-9616
Wear Plate L/H 300-9707
Wear Plate R/H 300-9707
Brake Pad Specifications
Brake Pad Type 1 6712
Total Pad Area (in²) 7.3
Total Pad Volume (in³) 2.4
Colors & Finish
Color Nickel
Finish Nickel Plate
Dust Boot No
Piston Area (in²) 5.06
Piston Count 6
Piston Type Thermlock
Mounting Specifications
Inlet Thread Size 1/8-27 NPT
Mount Center(in) 5.25
Mount Height(in) 2.03
Mount Hole Size(in) 0.39
Mount Side Left Hand
Mount Type Lug
Duty Rating & Material
Material Aluminum
Weight(Lbs) 4.9
Rotor Compatibility
Maximum Rotor Diameter(in) 13.00
Maximum Rotor Width (in) 0.38
Minimum Rotor Diameter(in) 10.00
Minimum Rotor Width (in) 0.25
Rotor Width (in) 0.38
Mount Center(in) 5.25
Mount Side Left Hand
Mount Type Lug
Pad Dimensions
Pad Area (in²) 7.3
Pad Volume (in³) 2.4
Piston Specifications
Piston 1 Bore (in) 1.62
Piston 2 Bore (in) 1.38
Piston 3 Bore (in) 1.38
Total Piston Area (in²) 5.06
Rotor Dimensions
Rotor Diameter(in) 13.00
Rotor Width (in) 0.38
