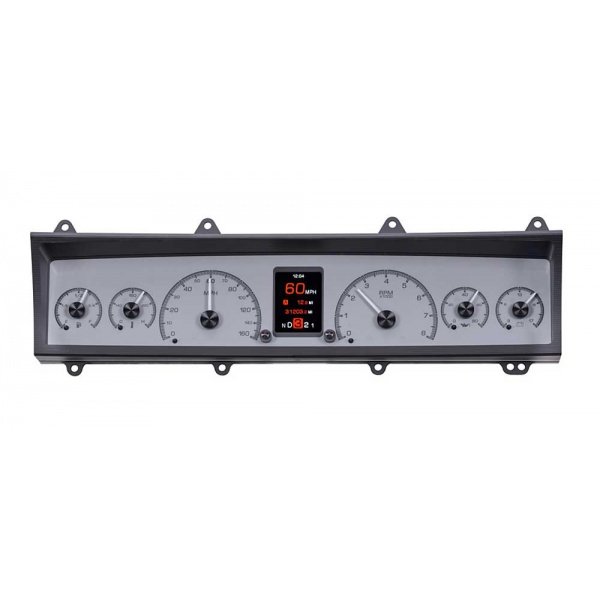

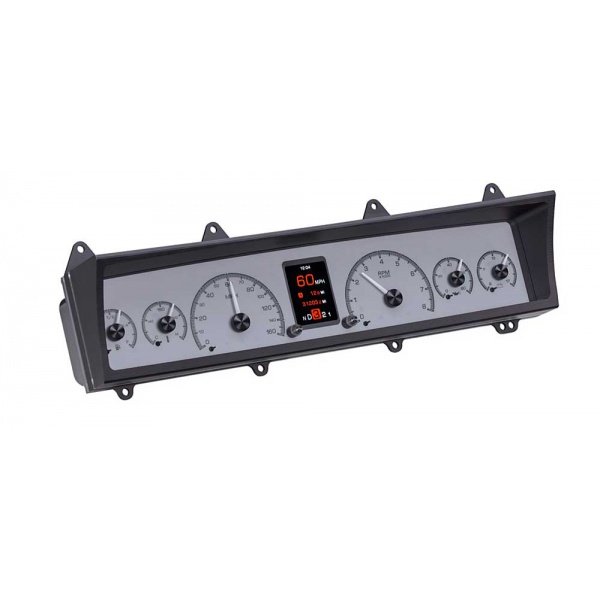

Available In Black Or Silver Alloy Gauge-Face Style
Select 12 Pre-Set Illumination Colors For Gauge Readings And Needles, And The Message Centers Or Customize Each Zone Yourself!
Speedometer : 0 -160 MPH
Split Scale Provides Resolution Of A 120MPH Speedometer, With A Top End Range Of 160MPH.
Tachometer: 0- 8,000 RPM
Oil Pressure: 0- 80 psi
Water Temperature: 100- 260ºF (optional metric version 40- 120ºC)
Fuel Level: E, 1/4, 1/2, 3/4, F
Voltmeter: 9- 17 VDC
Clock: 12 Hr Analog Clock Movement
Odometer (One Time User Settable, Million Mile)
Dual (A/B) Trip Meter (0- 9,999.9)
Clock (12 hour)
Estimated Range/ Miles to Empty
Performance Meters Include:
0- 60 MPH Timer (0- 100 kmh)
1/4 and 1/8 mile time
1/4 and 1/8 mile end speed (trap speed)
High speed recall
High RPM recall
Additional Features:
Turn Signals (Left/ Right)
High Beam
Check Engine
Parking Brake
Two Auxiliary Input Indicators With User-Programmable Labels
Each Analog Gauge Sweep Contains A Red Led Indicator For Quick Notice Of A Warning Condition (Except Speedometer)

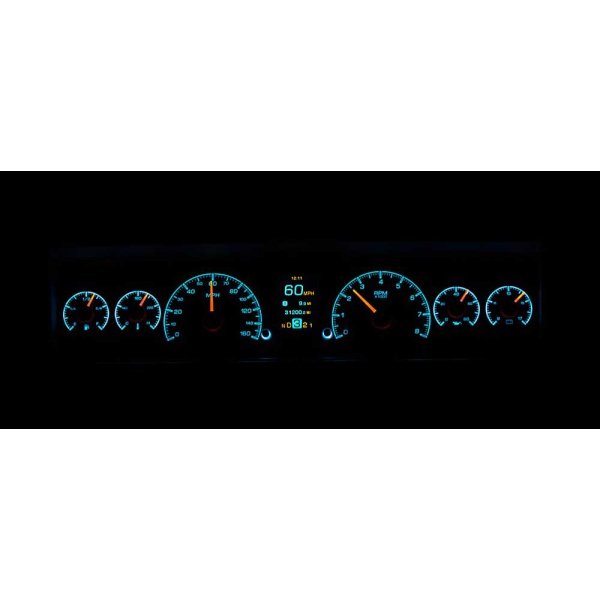

12 factory preset color themes (Yellow Flare Night And Wild Aqua Night Pictured)

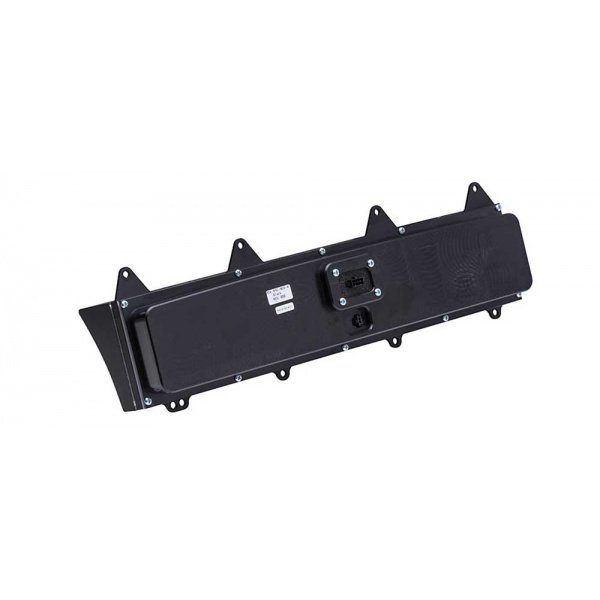

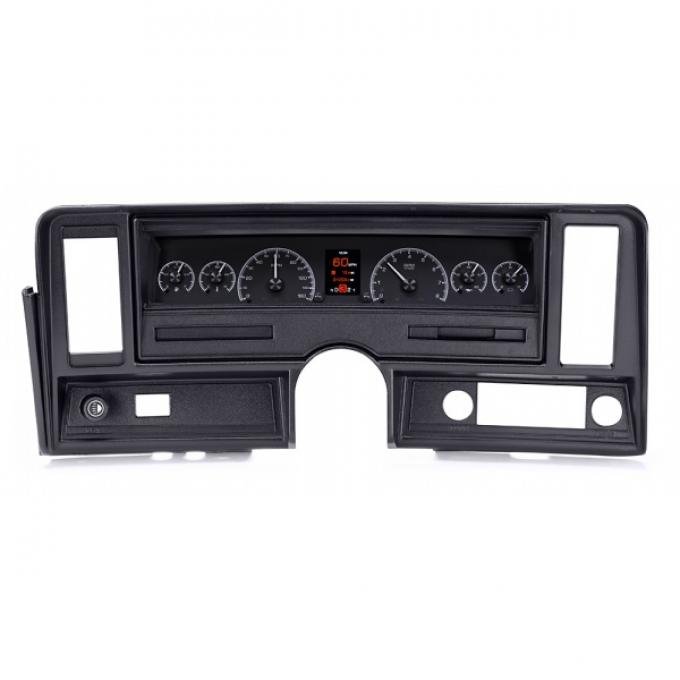

NOTE: Gauge Bezels Are Not Included Gauges are the focal point of any interior. Available with your choice of black or silver alloy gauge-face styling, each HDX system allows you to select independent illumination colors for the gauge readings and needles, as well as the message centers. Calibration and personal settings are manipulated with the built-in, capacitive-touch buttons, or the available Bluetooth app for Apple and Android devices. Each needle hub is black nickel plated spun-aluminum to match the buttons. All HDX instrument systems feature dead-faced indicators (turn signals, high beam, check engine, cruise control, parking brake, plus two user-definable), and a red, settable warning light for each gauge. With our central control box, installation is greatly simplified with vehicle-harness sourced signals and supplied, solid state sending units connecting cleanly to their respective terminal. Click the tabs below for a more in-depth look at the HDX series! Designed for 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976 Nova
Vehicle Fitment:
The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
