1978-84 Chevrolet Blazer, GMC Jimmy, Chevrolet, GMC Suburban, Fuel Tank Sending Unit, 4-Line, With Evaporative Emissions Control, With Fuel Return Line, For 31, 40 Gallon Fuel Tank, Gasoline
$87.99 ea
NEWARRIVING SOONEstimated Ship Date 09/01/2026 (If Ordered Today)21 Available from our supplier as of 08/13/2026

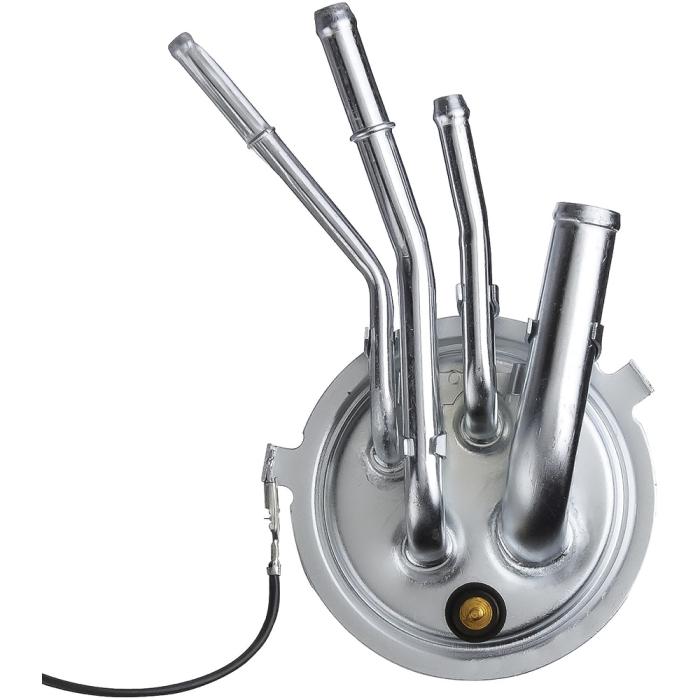

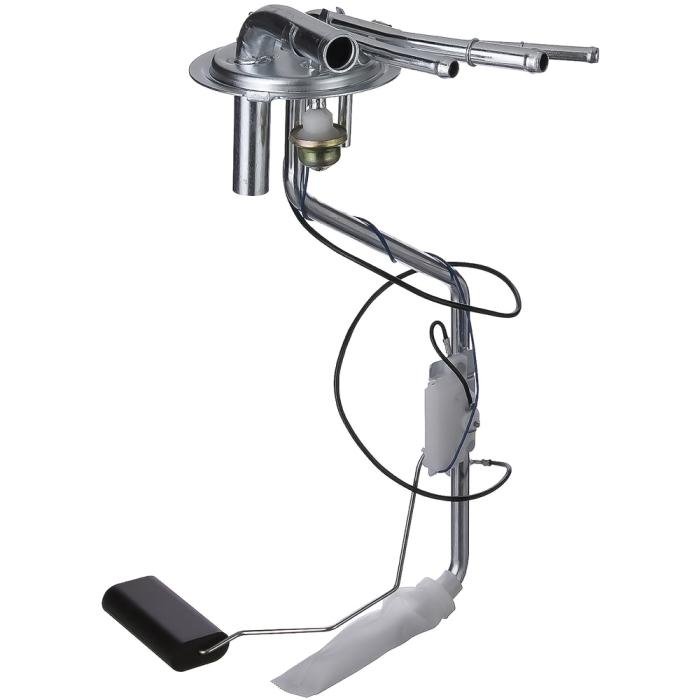

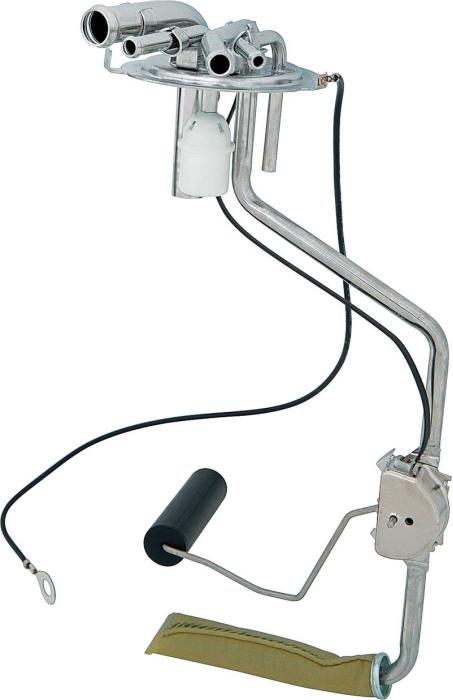

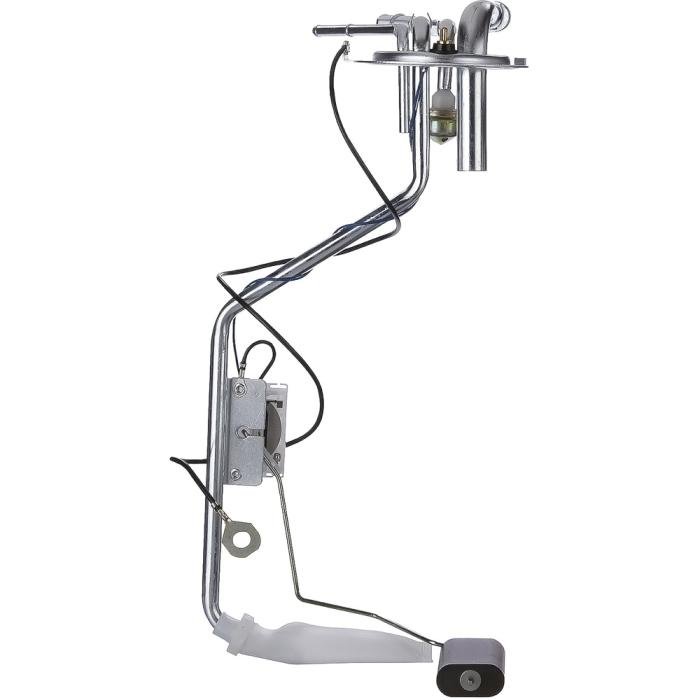

Reproduction 4-line fuel sending unit for 1978-84 Chevrolet Blazer, GMC Jimmy, and Chevrolet and GMC Suburban models with applicable 31- or 40-gallon fuel tanks, Evaporative Emissions Control (EEC), and a fuel return line. Manufactured to factory specifications for proper fit and function, this sending unit features a 0-90 ohm resistance range for compatibility with the factory fuel gauge and four connections for the applicable fuel, return, and vapor lines. An ideal replacement for a worn, corroded, or inoperative sender that can cause inaccurate or intermittent fuel level readings. For gasoline engine applications. Replaces GM part numbers 19111384, 25001486, and 25002019.
Features and Benefits:
Helps restore accurate and consistent fuel gauge operation
Manufactured to factory specifications for proper fit and function
Replaces a worn or inoperative sender that can cause inaccurate fuel level readings
4-line configuration accommodates applicable factory fuel, return, and vapor connections
Correct configuration for applicable 31- and 40-gallon fuel tanks
Additional Information:
Application: Fuel tank sending unit
Fuel Type: Gasoline
Fuel Tank Capacity: 31 or 40 gallons
Resistance Range: 0-90 ohms (Empty-Full)
Configuration: 4 outlets
Fuel Return Line: Yes
Emissions: Evaporative Emissions Control (EEC)
Connection: 1/4" barbed fitting
Connection: 5/16" barbed fitting
Connection: 3/8" barbed fitting
Connection: 5/8" barbed fitting
Includes fuel sender, gasket, and float
Replaces GM part numbers: 19111384, 25001486, 25002019
Sold individually
Blazer/Jimmy with Evaporative Emissions Controls (EEC)
1978-1980 Blazer/Jimmy 1/2-3/4 ton 305ci or 350ci w/Automatic Transmission
1978-1980 Blazer/Jimmy 1/2-3/4 ton 400ci or 454ci
1981-1981 Blazer/Jimmy 1/2-3/4 ton 305ci, 350ci or 454ci
1982-1982 Blazer/Jimmy 1/2 ton 305ci, 350ci or 454ci
1983-1984 Blazer/Jimmy 1/2-3/4 ton 305ci, 350ci or 454ci
Suburban with Evaporative Emissions Controls (EEC))
1978-1980 Suburban 1/2-3/4 ton 305ci or 350ci
1981-1981 Suburban 1/2-3/4 ton 305ci or 350ci w/Automatic Transmission
1981-1984 Suburban 1/2-3/4 ton 305ci, 350ci or 454ci
Note: For applicable gasoline engine models with a 31- or 40-gallon fuel tank, Evaporative Emissions Control (EEC), fuel return line, and 4-outlet sending unit. Verify fuel tank capacity, engine, transmission, emissions equipment, and sending unit connection configuration before ordering.
1978-84 Chevrolet Blazer, GMC Jimmy, Chevrolet, GMC Suburban, Fuel Tank Sending Unit, 4-Line, With Evaporative Emissions Control, With Fuel Return Line, For 31, 40 Gallon Fuel Tank, Gasoline:
IMPORTANT: Electrical items are covered by a 30 day EXCHANGE ONLY WARRANTY. There are no returns or refunds on such items.
