American Autowire Classic Update Kit - 1971-80 International Scout 510838

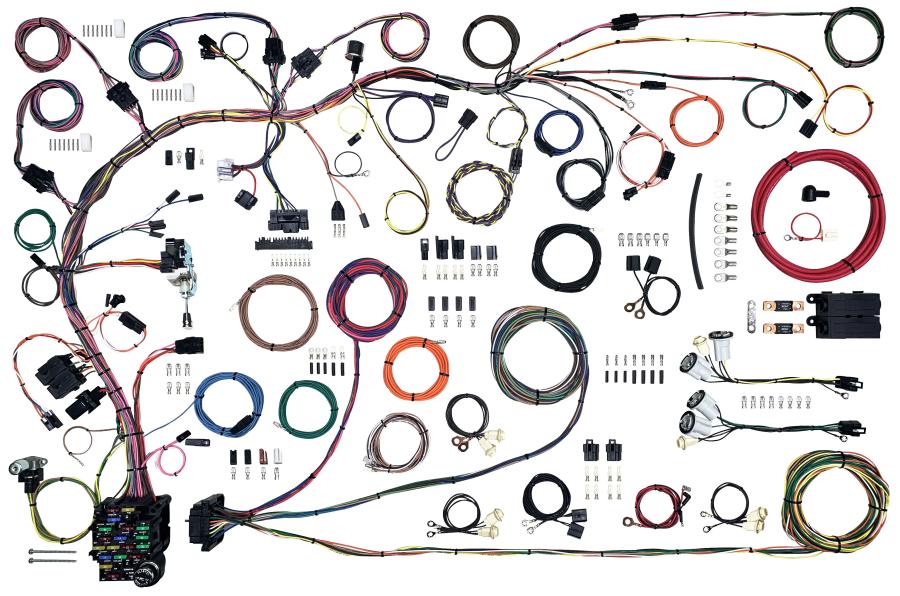

The Classic Update Series provides you with the most complete kits on the market. The 1971-80 Scout II Classic Update Kit is no exception. The kit boasts many features and connectors, making it the most complete system of its type in the industry. Each kit includes:

• A new ATC fuse box and bulkhead assembly designed to fit in the stock firewall mounting location with no modification for 1978-80 models. A firewall modification template is supplied for 1971-77 vehicles.

• Dash wiring is laid out to allow for nearly all accessories, such as stock or aftermarket gauge packages and heat/air conditioning systems. The steering column connection plugs directly into 1971-80 Scout II models, and will support most aftermarket columns with an included adapter and terminal set. Terminals and printed circuit board connector are included for use with stock clusters.

• Factory style under dash courtesy lamp assemblies are included for use along with your original dome/interior lighting feeds. Plug and play heater switch, wiper/washer switch, blower resistor wiring and motor connections and are standard.

• Stop/tail, back-up and side marker lamp connectors attach to factory rear lamps. Stop/tail and back-up lamp sockets are included for the 1978-80 models. Fuel tank sender and ground harness plugs directly onto the gauge sender. Body pass-through wiring is also included.

• Engine compartment wiring includes feeds for coil, tach, water temperature, oil pressure, electric choke, 4WD warning lamp switch, starter solenoid feeds, A/C compressor lead, electric fuel pump lead, alternator exciter feed and neutral safety and backup feeds. A high-powered 6 gauge 1-wire alternator connection with Mega-Fuse protection is also supplied.

• New factory-style headlight switch, along with fog lamp relays, wiring and fog lamp switch connector. Front light wiring includes extra-long leads that can be routed for stock or custom applications. Front light harness circuits include headlight, parking/directional light, side marker light pigtails and brake warning differential. A switched trigger wire for an electric fan relay is also provided.

This product covers the following year/make/model combinations:

• 1971-80 Scout II and Scout Traveler, all models
