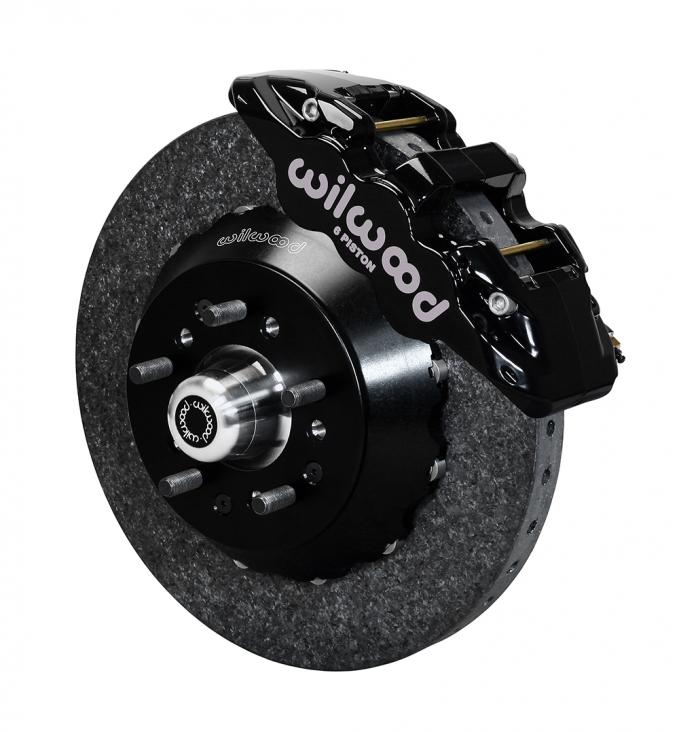

Wilwood Brakes AERO6 WCCB Carbon-Ceramic Big Brake Front Brake Kit 140-13144-CSIC

Wilwood Brakes AERO6 WCCB Carbon-Ceramic Big Brake Front Brake Kit 140-13144-CSIC
Wilwood Brakes AERO6 WCCB Carbon-Ceramic Big Brake Front Brake Kit 140-13144-CSICWilwood Brakes AERO6 WCCB Carbon-Ceramic Big Brake Front Brake Kit 140-13144-CSICWilwood Brakes AERO6 WCCB Carbon-Ceramic Big Brake Front Brake Kit 140-13144-CSICWilwood Brakes AERO6 WCCB Carbon-Ceramic Big Brake Front Brake Kit 140-13144-CSICWilwood Brakes AERO6 WCCB Carbon-Ceramic Big Brake Front Brake Kit 140-13144-CSICWilwood Brakes AERO6 WCCB Carbon-Ceramic Big Brake Front Brake Kit 140-13144-CSICWilwood Brakes AERO6 WCCB Carbon-Ceramic Big Brake Front Brake Kit 140-13144-CSIC
$10,171.99 ea
NEWARRIVING SOONEstimated Ship Date 10/26/2022 (If Ordered Today)Out of stock with WILWOOD ENGINEERING as of 05/04/2020
Model: 3924656
Supplier has not provided any fitment data for this product.
STANDARD
DELIVERY
STORE PICKUP
[More Info]

AERO6 WCCB Carbon-Ceramic Rotor Front Brake Kits offer an extreme performance upgrade featuring WCCB Carbon-Ceramic Dynamic Mount Rotors with Wilwood’s exclusive Bobbin Mounting System. AERO6 WCCB kits are engineered to maximize braking capacity inside custom wheels. These brake kits offer a simple bolt-on installation with minor modifications required to the front spindle only and are fully compatible with ABS and OE master cylinder output. W6AR calipers are a competition proven and offer fully detail machined forged caliper body demonstrates superior strength and resistance to deflection and separation under high load. A high temperature, fluid resistant “Quick-Silver“ Nickel plate is the standard for performance, other colors (Black and Red powder coat) are available as options. 14.00” WCCB rotors are made from a proprietary blend ceramic matrix composite material commonly known as Carbon-Ceramic and dynamically using Wilwood’s proprietary integrated anti-rattle Bobbin Mounting System. WCCB rotors offer higher thermal conductivity and heat capacity in excess of conventional iron or titanium rotors of similar or even greater weight and have been developed to withstand extreme temperatures with the highest possible degree of resistance against distortion, warping, cracking and wear.

Fitment Notes

1. 14" Rotor

About Wilwood Engineering

Wilwood Engineering designs and manufactures high-performance disc brake systems. Since the company’s inception in 1977 by Bill Wood, we have developed a substantial matrix of brake components and engineering techniques that allow us to quickly and reliably create brake systems for almost any application. Our core ability is the rapid development of custom engineered brake systems using a combination of off-the-shelf and custom components. In addition to designing and manufacturing brakes for all types of competitive motor sports, Wilwood also manufactures brake systems and components for agricultural equipment, industrial applications, utility vehicles, snowmobiles, quads, motorcycles and military vehicles.

With headquarters in Camarillo, California, Wilwood employs approximately 250 people. We have on-shelf stock of more than 300 different brake calipers, 200 rotor designs, 100 master cylinder designs and a wide assortment of brackets, fittings, valves and brake lines. Our off-shelf brake calipers range in size from tiny calipers used on go-carts and light duty industrial equipment, to heavy duty original equipment brakes for the U.S. military Humvee.

Wilwood's engineering department uses the latest computer-aided design and manufacturing techniques in conjunction with finite element analysis, dynamic test and cycle test equipment, to find high-performance and reliability solutions for the most difficult braking tasks. Our extensive inventory of proprietary on-the-shelf components allow us to provide cost-effective solutions for unique brake applications.

Wilwood is ISO 9000 compliant and has extensive experience maintaining quality levels of 100ppm or less for original equipment manufacturers.

Downloads:

Download Name File Size
ds987.pdf475.27KB

Specifications:

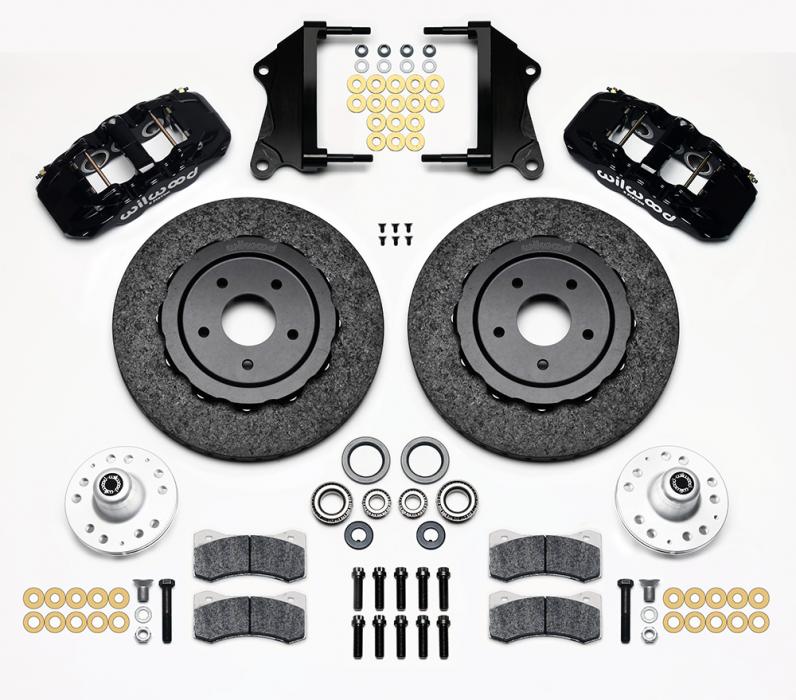

Kit Components & Specs / Rotors
Bedded No
Design Type C/SiC
Dynamically Balanced No
Left Hand - Part No 160-12442
Material C/SiC
Outside Diameter (in) 14.00
Right Hand - Part No 160-12442
Style Plain Face
Surface Finish Plain
Type WCCD Carbon-Ceramic
Vane Count 24 V
Width (in) 1.25
Parts & Accessories / Caliper Parts
Bleed Screw Kit 220-0627
O-ring Kit 130-5972
Replacement Piston 1 200-7519
Replacement Piston 2 200-7513
Replacement Piston 3 200-7513
Wear Plate - Left Hand 300-5876
Wear Plate - Right Hand 300-5876
Kit Components & Specs / Rotor Hats
Bolt Circle 1 5 x 4.75
Finish Color Type III Anodize
Hat - Part No 170-13136
Hat Offset Dimension (in) 1.740
Material Aluminum
Stud Diameter - BC 1 0.520
Stud Diameter - BC 2 0.000
Stud Diameter - BC 3 0.000
Type Big Brake Dynamic Bobbin Mount Hat - Flared Bell
Kit Components & Specs / Hubs
Bolt Circle 1 5 x 4.50
Bolt Circle 2 5 x 4.75
Finish Color Bare
Hub - Part No 270-7037
Material Aluminum
Mount Style Hat
Stud Diameter - BC 1 1/2-20
Stud Diameter - BC 2 1/2-20
Type Hub - Hat Mount
Parts & Accessories / Hub
Bolt Kit 230-7032
Parts & Accessories / Hat
Bolt Kit Call
Kit Components & Specs / Calipers
Brake Pad Area (In²) 11.1
Brake Pad Plate 6617
Brake Pad Volume (In³) 5.2
Finish Color Black Powder Coat
Left Hand - Part No 120-13290-BK
Mount Type Radial
Pad Compound PCM
Piston 1 Bore (in) 1.62
Piston 2 Bore (in) 1.12
Piston 3 Bore (in) 1.12
Piston Area (In²) 4.04
Piston Count 6
Piston Type Stainless
Right Hand - Part No 120-13289-BK
Type AERO6
(Increase / Decrease Track Width)
Caliper Type 6 - Black Powder Coat

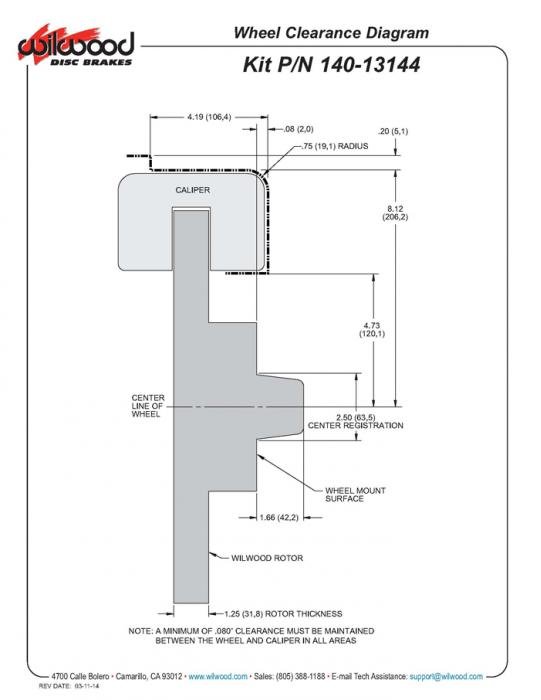

Min Wheel Diameter Req'd* 18
Mount Type Radial
Rotor Diameter 14.00

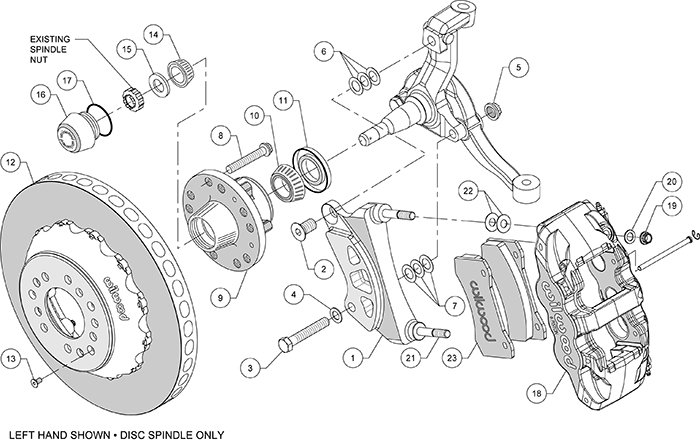

Spindle Type Factory Disc Spindle
Parts & Accessories / *Brake Lines Needed
Front Line Kit 220-7056
Kit Summary
OE Hub Offset +.38
