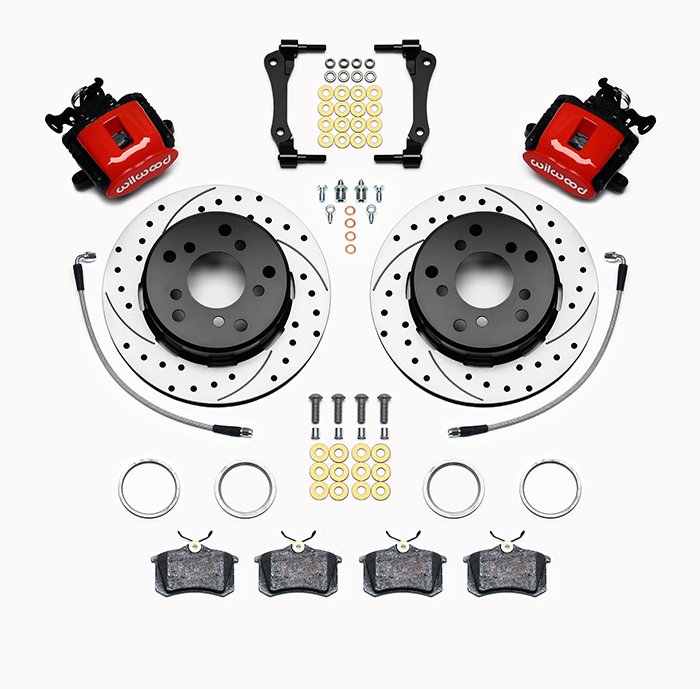

Wilwood Brakes Combination Parking Brake Caliper 1Pc Rotor Rear Brake Kit 140-12363-DR

Wilwood Brakes Combination Parking Brake Caliper 1Pc Rotor Rear Brake Kit 140-12363-DR
Wilwood Brakes Combination Parking Brake Caliper 1Pc Rotor Rear Brake Kit 140-12363-DRWilwood Brakes Combination Parking Brake Caliper 1Pc Rotor Rear Brake Kit 140-12363-DRWilwood Brakes Combination Parking Brake Caliper 1Pc Rotor Rear Brake Kit 140-12363-DRWilwood Brakes Combination Parking Brake Caliper 1Pc Rotor Rear Brake Kit 140-12363-DRWilwood Brakes Combination Parking Brake Caliper 1Pc Rotor Rear Brake Kit 140-12363-DR
$1,320.99 ea
NEWOut of stock with WILWOOD ENGINEERING as of 10/01/2022
Model: 3924638
Supplier has not provided any fitment data for this product.
STANDARD
DELIVERY
STORE PICKUP
[More Info]

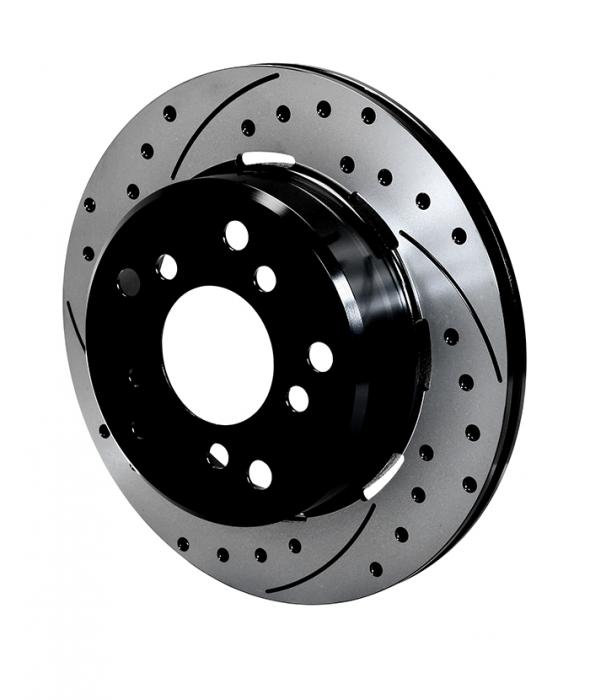

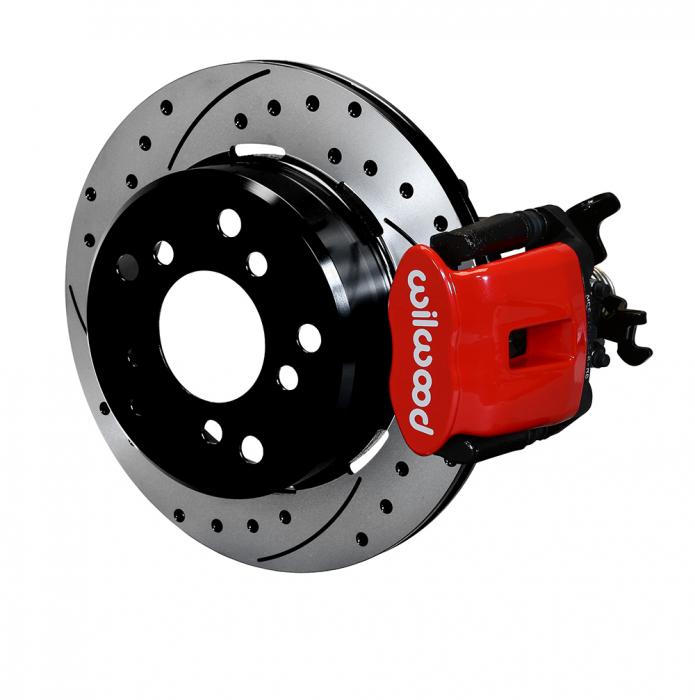

Combination hydro-mechanical Parking Brake calipers use hydraulic pressure from the master cylinder for stopping power, and an internal mechanical lock within the caliper for a parking brake. CPB kits are built primarily for select rear wheel drive axles that are not well suited for internal shoe style parking brakes. The calipers are coupled with 12.19 inch one-piece rotor assemblies with integral hats and high friction BP-10 compound pads. CPB kits provide the correct balanced brake performance and matching style to compliment front big brake upgrade kits.

Fitment Notes

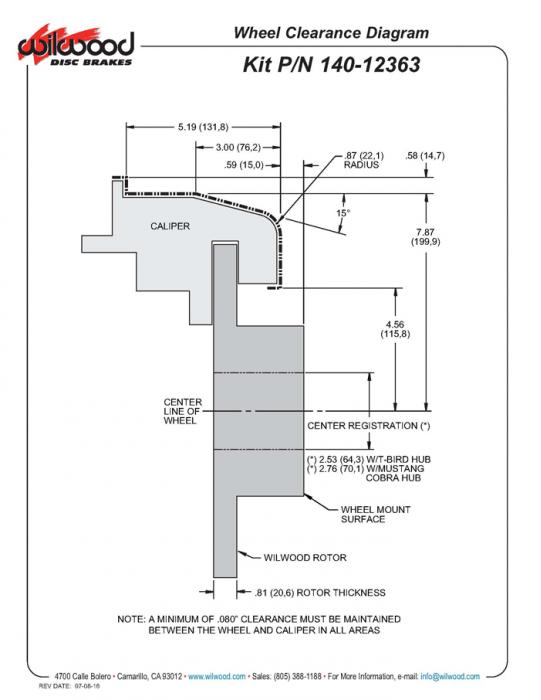

1. Kit may fit some 16" wheels. Check wheel clearance diagram in kit installation instructions before purchase.

About Wilwood Engineering

Wilwood Engineering designs and manufactures high-performance disc brake systems. Since the company’s inception in 1977 by Bill Wood, we have developed a substantial matrix of brake components and engineering techniques that allow us to quickly and reliably create brake systems for almost any application. Our core ability is the rapid development of custom engineered brake systems using a combination of off-the-shelf and custom components. In addition to designing and manufacturing brakes for all types of competitive motor sports, Wilwood also manufactures brake systems and components for agricultural equipment, industrial applications, utility vehicles, snowmobiles, quads, motorcycles and military vehicles.

With headquarters in Camarillo, California, Wilwood employs approximately 250 people. We have on-shelf stock of more than 300 different brake calipers, 200 rotor designs, 100 master cylinder designs and a wide assortment of brackets, fittings, valves and brake lines. Our off-shelf brake calipers range in size from tiny calipers used on go-carts and light duty industrial equipment, to heavy duty original equipment brakes for the U.S. military Humvee.

Wilwood's engineering department uses the latest computer-aided design and manufacturing techniques in conjunction with finite element analysis, dynamic test and cycle test equipment, to find high-performance and reliability solutions for the most difficult braking tasks. Our extensive inventory of proprietary on-the-shelf components allow us to provide cost-effective solutions for unique brake applications.

Wilwood is ISO 9000 compliant and has extensive experience maintaining quality levels of 100ppm or less for original equipment manufacturers.

Downloads:

Download Name File Size
ds888.pdf506.04KB

Specifications:

Kit Summary
Axle Offset 0.00
Caliper Type 1 - Red Powder Coat
Min Wheel Diameter Req'd* 17
Mount Type Radial
Rear End Axle OEM
Rotor Diameter 12.19
Kit Components & Specs / Rotors
Bedded No
Design Type SRP-BLK
Dynamically Balanced No
Left Hand - Part No 160-13337-BK
Material Iron
Outside Diameter (in) 12.19
Right Hand - Part No 160-13336-BK
Style SRP Drilled & Slotted
Surface Finish Black Electro Coat
Type SRP Drilled Rotor & Hat
Vane Count 32 V
Width (in) 0.81
Kit Components & Specs / Calipers
Brake Pad Area (In²) 4
Brake Pad Plate D340
Brake Pad Volume (In³) 1.5
Finish Color Red Powder Coat
Left Hand - Part No 120-10113-13-RD
Mount Type Radial
Pad Compound BP-10
Piston 1 Bore (in) 1.62
Piston Area (In²) 2.06
Piston Count 1
Piston Type Steel
Right Hand - Part No 120-10112-13-RD
Type Combination Parking Brake
Parts & Accessories / Brake Lines
Front Line Kit 220-12093
Parts & Accessories / Caliper Parts
O-ring Kit Call
Replacement Piston 1 Call
