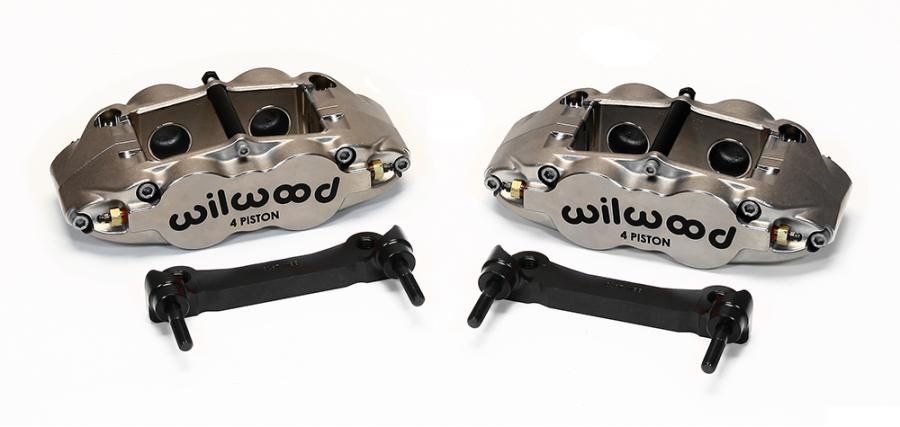

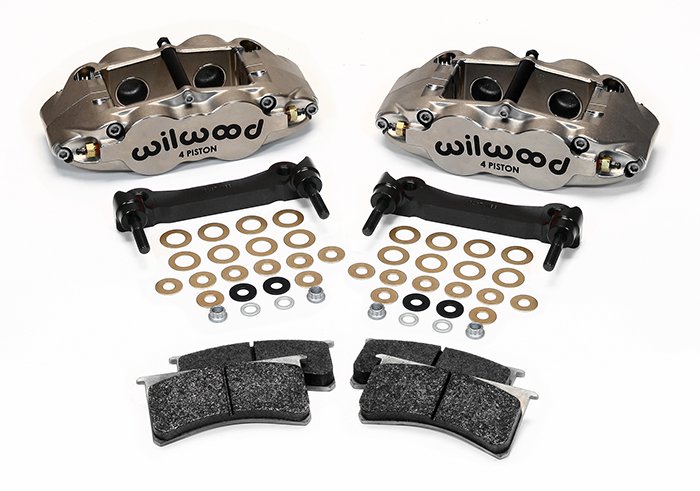

Wilwood Brakes Forged Narrow Superlite 4R Caliper and Bracket Upgrade Kit for Corvette C5-C6 140-14026-N

Wilwood Brakes Forged Narrow Superlite 4R Caliper and Bracket Upgrade Kit for Corvette C5-C6 140-14026-N
Wilwood Brakes Forged Narrow Superlite 4R Caliper and Bracket Upgrade Kit for Corvette C5-C6 140-14026-NWilwood Brakes Forged Narrow Superlite 4R Caliper and Bracket Upgrade Kit for Corvette C5-C6 140-14026-NWilwood Brakes Forged Narrow Superlite 4R Caliper and Bracket Upgrade Kit for Corvette C5-C6 140-14026-NWilwood Brakes Forged Narrow Superlite 4R Caliper and Bracket Upgrade Kit for Corvette C5-C6 140-14026-N
$1,671.99 ea
NEWOut of stock with WILWOOD ENGINEERING as of 09/30/2022
Model: 3924668
Supplier has not provided any fitment data for this product.
STANDARD
DELIVERY
STORE PICKUP
[More Info]

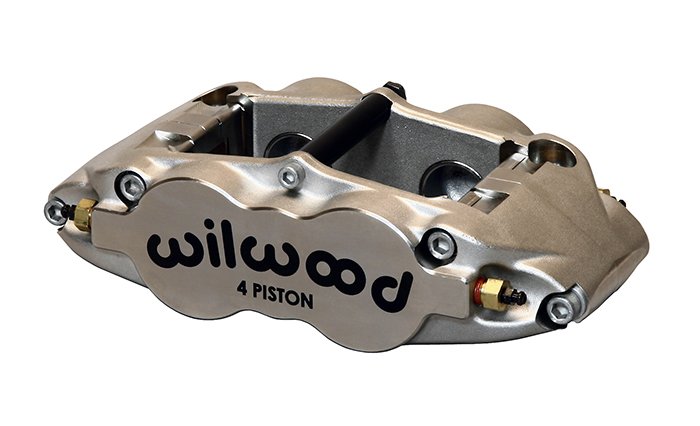

Superlite 4R four piston radial mount rear caliper kits add big brake stopping power and style to any 1997-2013 C5 or C6 Corvette rear suspension. These caliper kits mount in the stock location and replace the OE calipers on all models that have been updated with 13.00” rotors from the 2005-09 C6 Z51 models. Superlite 4R calipers incorporate race proven technology in a high strength, center bridge reinforced forged body design. They provide positive and confident pedal response that is matched to the OE master cylinder output and fully compatible with the ABS system. BP-20 dual-sport compound Smart Pads provide clean and quiet driving on the street, with improved friction and high temperature fade resistance for auto-cross and other sport driving applications.

Fitment Notes

1. Use flexline kit 220-8177 for all 1997-04 C5
2. Use flexline kit 220-9101 for all 2005-13 C6
3. Requires 2005-09 J55 code Z51 13.00” rear rotor.

About Wilwood Engineering

Wilwood Engineering designs and manufactures high-performance disc brake systems. Since the company’s inception in 1977 by Bill Wood, we have developed a substantial matrix of brake components and engineering techniques that allow us to quickly and reliably create brake systems for almost any application. Our core ability is the rapid development of custom engineered brake systems using a combination of off-the-shelf and custom components. In addition to designing and manufacturing brakes for all types of competitive motor sports, Wilwood also manufactures brake systems and components for agricultural equipment, industrial applications, utility vehicles, snowmobiles, quads, motorcycles and military vehicles.

With headquarters in Camarillo, California, Wilwood employs approximately 250 people. We have on-shelf stock of more than 300 different brake calipers, 200 rotor designs, 100 master cylinder designs and a wide assortment of brackets, fittings, valves and brake lines. Our off-shelf brake calipers range in size from tiny calipers used on go-carts and light duty industrial equipment, to heavy duty original equipment brakes for the U.S. military Humvee.

Wilwood's engineering department uses the latest computer-aided design and manufacturing techniques in conjunction with finite element analysis, dynamic test and cycle test equipment, to find high-performance and reliability solutions for the most difficult braking tasks. Our extensive inventory of proprietary on-the-shelf components allow us to provide cost-effective solutions for unique brake applications.

Wilwood is ISO 9000 compliant and has extensive experience maintaining quality levels of 100ppm or less for original equipment manufacturers.

Downloads:

Download Name File Size
ds1084.pdf363.99KB

Specifications:

Kit Summary
Axle Offset 0.00
Caliper Type 4 - Nickel Plate
Min Wheel Diameter Req'd* 17
Mount Type Radial
Rear End Axle OEM
Rotor Diameter 13.00
Parts & Accessories / Caliper Parts
Bleed Screw Kit 220-0627
Bridge Bolt Kit 230-7710
CrossOver O-Ring Kit 130-10540
O-ring Kit 130-2479
Replacement Piston 1 200-7515
Replacement Piston 2 200-7515
Wear Plate - Left Hand 300-6596
Wear Plate - Right Hand 300-6595
Kit Components & Specs / Calipers
Brake Pad Area (In²) 8.2
Brake Pad Plate 7416
Brake Pad Volume (In³) 3.8
Finish Color Nickel Plate
Left Hand - Part No 120-11783-N
Mount Type Radial
Pad Compound BP-20
Piston 1 Bore (in) 1.25
Piston 2 Bore (in) 1.25
Piston Area (In²) 2.46
Piston Count 4
Piston Type Stainless
Right Hand - Part No 120-11783-N
Type Forged Narrow Superlite 4R
Parts & Accessories / Brake Lines
Front Line Kit 220-8177, 220-9101
