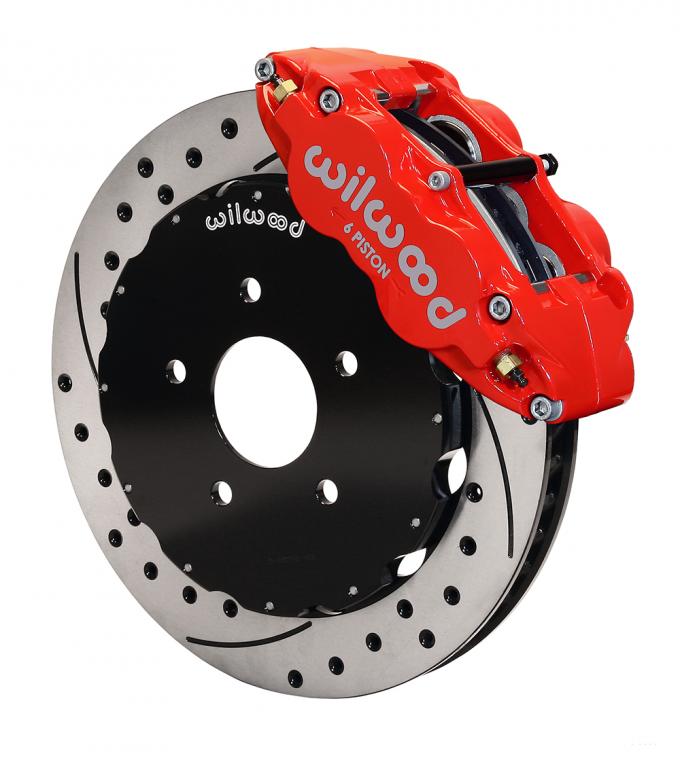

Wilwood Brakes Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hat) 140-8230-DR

Wilwood Brakes Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hat) 140-8230-DR
Wilwood Brakes Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hat) 140-8230-DRWilwood Brakes Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hat) 140-8230-DRWilwood Brakes Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hat) 140-8230-DRWilwood Brakes Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hat) 140-8230-DRWilwood Brakes Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hat) 140-8230-DRWilwood Brakes Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hat) 140-8230-DR
$2,857.99 ea
NEWOut of stock with WILWOOD ENGINEERING as of 09/30/2022
Model: 3924611
Supplier has not provided any fitment data for this product.
STANDARD
DELIVERY
STORE PICKUP
[More Info]

The unsurpassed braking capacity of the Forged Narrow Superlite 6R six-piston caliper serves as the base of this group of 13”-14” big rotor kits for these popular late model vehicles. FNSL6R kits are engineered application specific for simplified installation and full compatibility with OE master cylinder output and ABS functions where used. Big brake kits provide increased brake capacity and complimentary style with wheel, tire, and suspension upgrades on show cars and high performance street/track machines. Optional caliper finishes and rotor designs simplify personalizing the style and braking requirements of any application.

Fitment Notes

1. 14" Rotor

About Wilwood Engineering

Wilwood Engineering designs and manufactures high-performance disc brake systems. Since the company’s inception in 1977 by Bill Wood, we have developed a substantial matrix of brake components and engineering techniques that allow us to quickly and reliably create brake systems for almost any application. Our core ability is the rapid development of custom engineered brake systems using a combination of off-the-shelf and custom components. In addition to designing and manufacturing brakes for all types of competitive motor sports, Wilwood also manufactures brake systems and components for agricultural equipment, industrial applications, utility vehicles, snowmobiles, quads, motorcycles and military vehicles.

With headquarters in Camarillo, California, Wilwood employs approximately 250 people. We have on-shelf stock of more than 300 different brake calipers, 200 rotor designs, 100 master cylinder designs and a wide assortment of brackets, fittings, valves and brake lines. Our off-shelf brake calipers range in size from tiny calipers used on go-carts and light duty industrial equipment, to heavy duty original equipment brakes for the U.S. military Humvee.

Wilwood's engineering department uses the latest computer-aided design and manufacturing techniques in conjunction with finite element analysis, dynamic test and cycle test equipment, to find high-performance and reliability solutions for the most difficult braking tasks. Our extensive inventory of proprietary on-the-shelf components allow us to provide cost-effective solutions for unique brake applications.

Wilwood is ISO 9000 compliant and has extensive experience maintaining quality levels of 100ppm or less for original equipment manufacturers.

Downloads:

Download Name File Size
ds459.pdf366.35KB

Specifications:

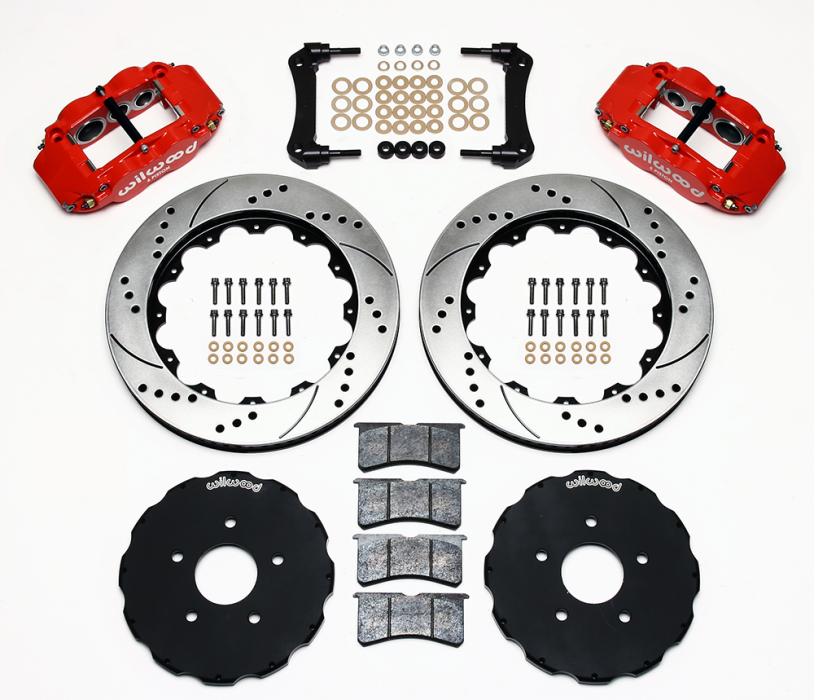

Kit Components & Specs / Rotors
Bedded No
Design Type SRP-BLK
Dynamically Balanced Yes
Left Hand - Part No 160-8397-BK
Material Spec-37 Iron
Outside Diameter (in) 14.00
Right Hand - Part No 160-8396-BK
Style SRP Drilled & Slotted
Surface Finish Black Electro Coat
Type SRP Drilled Rotor
Vane Count 72 CV
Width (in) 1.25
Parts & Accessories / Caliper Parts
Bleed Screw Kit 220-0627
Bridge Bolt Kit 230-7049
CrossOver O-Ring Kit 130-10540
O-ring Kit 130-5972
Replacement Piston 1 200-7520
Replacement Piston 2 200-8439
Replacement Piston 3 200-8439
Wear Plate - Left Hand 300-6596
Wear Plate - Right Hand 300-6595
Kit Components & Specs / Rotor Hats
Bolt Circle 1 5 x 4.75
Finish Color Black E-Coat
Hat - Part No 170-8132
Hat Offset Dimension (in) 0.410
Material Aluminum
Stud Diameter - BC 1 0.520
Stud Diameter - BC 2 0.000
Stud Diameter - BC 3 0.000
Type Big Brake Hat - Short Offset
Parts & Accessories / Hat
Bolt Kit 230-4572
Kit Components & Specs / Calipers
Brake Pad Area (In²) 8.2
Brake Pad Plate 7416
Brake Pad Volume (In³) 3.8
Finish Color Red Powder Coat
Left Hand - Part No 120-11779-RD
Mount Type Radial
Pad Compound BP-10
Piston 1 Bore (in) 1.62
Piston 2 Bore (in) 1.12
Piston 3 Bore (in) 1.12
Piston Area (In²) 4.04
Piston Count 6
Piston Type Stainless
Right Hand - Part No 120-11778-RD
Type Forged Narrow Superlite 6R
Caliper Type 6 - Red Powder Coat
Min Wheel Diameter Req'd* 18
Mount Type Radial
Rotor Diameter 14.00
Parts & Accessories / *Brake Lines Needed
Front Line Kit 220-8176
