Wilwood Brakes TX6R Big Brake Truck Front Brake Kit 140-15807-R

Wilwood Brakes TX6R Big Brake Truck Front Brake Kit 140-15807-R
Wilwood Brakes TX6R Big Brake Truck Front Brake Kit 140-15807-RWilwood Brakes TX6R Big Brake Truck Front Brake Kit 140-15807-RWilwood Brakes TX6R Big Brake Truck Front Brake Kit 140-15807-R
$4,598.99 ea
NEWARRIVING SOONEstimated Ship Date 10/26/2022 (If Ordered Today)Out of stock with WILWOOD ENGINEERING as of 09/24/2022
Model: 3924716
Supplier has not provided any fitment data for this product.
STANDARD
DELIVERY
STORE PICKUP
[More Info]

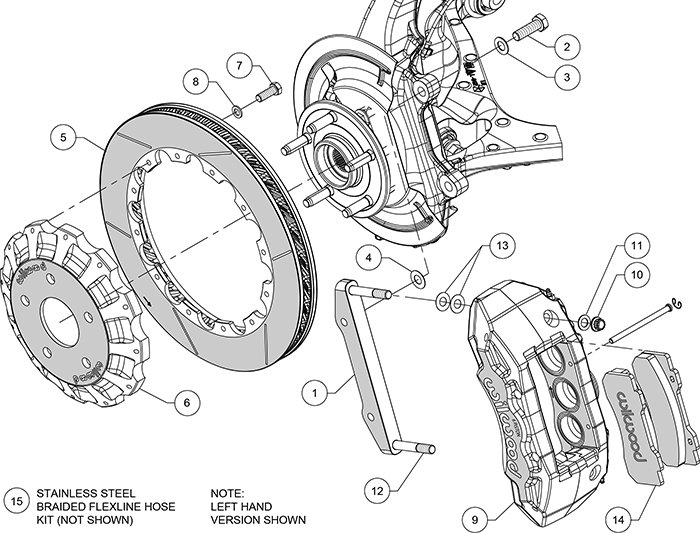

Wilwood’s Tactical Extreme TX6R Big Brake kits are ultimate in braking performance for Truck, SUV and Armored Vehicles. Using TX6R radial mount six-piston calipers and massive 15.00” to 16.00” GT-60 directional vane Spec-37 alloy rotors, these kits deliver consistent stopping power and extreme duty durability under sustained high heat with this ready to bolt-on kit. The calipers are volume matched for compatibility with original equipment power brake system output. Kits include radial mount caliper brackets, and all the necessary hardware to complete the installation. Braided stainless steel flex lines will need to be purchased for some applications.

About Wilwood Engineering

Wilwood Engineering designs and manufactures high-performance disc brake systems. Since the company’s inception in 1977 by Bill Wood, we have developed a substantial matrix of brake components and engineering techniques that allow us to quickly and reliably create brake systems for almost any application. Our core ability is the rapid development of custom engineered brake systems using a combination of off-the-shelf and custom components. In addition to designing and manufacturing brakes for all types of competitive motor sports, Wilwood also manufactures brake systems and components for agricultural equipment, industrial applications, utility vehicles, snowmobiles, quads, motorcycles and military vehicles.

With headquarters in Camarillo, California, Wilwood employs approximately 250 people. We have on-shelf stock of more than 300 different brake calipers, 200 rotor designs, 100 master cylinder designs and a wide assortment of brackets, fittings, valves and brake lines. Our off-shelf brake calipers range in size from tiny calipers used on go-carts and light duty industrial equipment, to heavy duty original equipment brakes for the U.S. military Humvee.

Wilwood's engineering department uses the latest computer-aided design and manufacturing techniques in conjunction with finite element analysis, dynamic test and cycle test equipment, to find high-performance and reliability solutions for the most difficult braking tasks. Our extensive inventory of proprietary on-the-shelf components allow us to provide cost-effective solutions for unique brake applications.

Wilwood is ISO 9000 compliant and has extensive experience maintaining quality levels of 100ppm or less for original equipment manufacturers.

Downloads:

Download Name File Size
ds1343.pdf681.24KB

Specifications:

Kit Components & Specs / Rotors
Bedded No
Design Type GT-BLK
Dynamically Balanced Yes
Left Hand - Part No 160-8954-GTB
Material Spec-37 Iron
Outside Diameter (in) 16.00
Right Hand - Part No 160-8953-GTB
Style GT Slotted
Surface Finish Black Electro Coat
Type GT 60 Curved Vane
Vane Count 60 CV
Width (in) 1.38
Parts & Accessories / Caliper Parts
Bleed Screw Kit 220-0627
CrossOver O-Ring Kit 130-10540
O-ring Kit 130-14278
Pad Retainer 180-9874
Replacement Piston 1 200-7531
Replacement Piston 2 200-7519
Replacement Piston 3 200-7519
Wear Plate - Left Hand 300-5922
Wear Plate - Right Hand 300-5923
Kit Components & Specs / Rotor Hats
Bolt Circle 1 5 x 5.50
Finish Color Black E-Coat
Hat - Part No 170-15803
Hat Offset Dimension (in) 1.180
Material Aluminum
Stud Diameter - BC 1 0.640
Stud Diameter - BC 2 0.000
Stud Diameter - BC 3 0.000
Type Truck Hat - Standard
Parts & Accessories / Hat
Bolt Kit 230-14086
Kit Components & Specs / Calipers
Brake Pad Area (In²) 12.69
Brake Pad Plate 10120
Brake Pad Volume (In³) 6.81
Finish Color Red Powder Coat
Left Hand - Part No 120-13818-RD
Mount Type Radial
Pad Compound BP-20
Piston 1 Bore (in) 1.75
Piston 2 Bore (in) 1.62
Piston 3 Bore (in) 1.62
Piston Area (In²) 6.52
Piston Count 6
Piston Type Stainless
Right Hand - Part No 120-13817-RD
Type TX6R
Caliper Type 6 - Red Powder Coat
Min Wheel Diameter Req'd* 20
Mount Type Radial
Rotor Diameter 16.00
Spindle Type Factory Disc Spindle
Parts & Accessories / Brake Lines
Front Line Kit 220-15806
