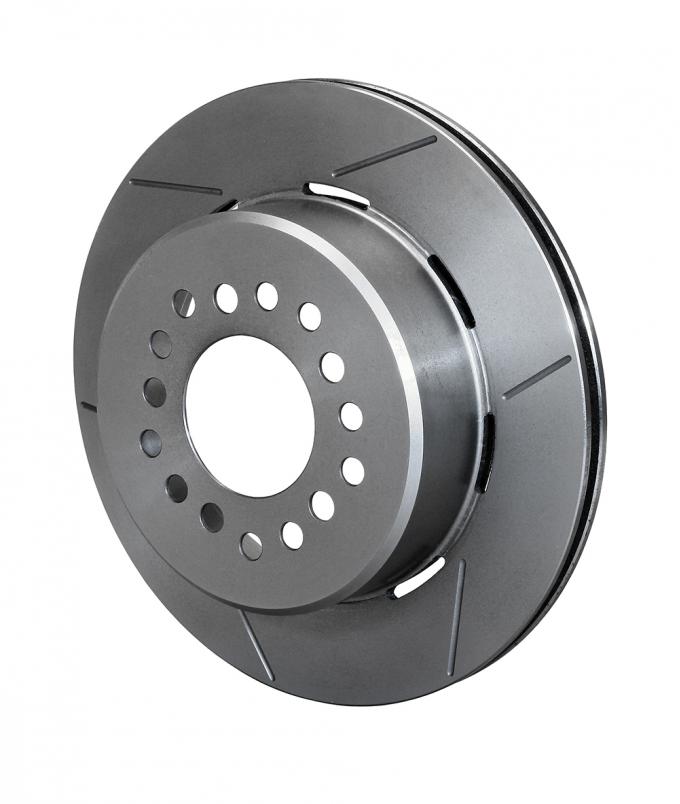

Wilwood Brakes Ultralite HPS 32 Vane Rotor & Hat 160-12150

Wilwood Brakes Ultralite HPS 32 Vane Rotor & Hat 160-12150
Wilwood Brakes Ultralite HPS 32 Vane Rotor & Hat 160-12150
$409.99 ea
NEWARRIVING SOONEstimated Ship Date 12/22/2022 (If Ordered Today)18 available from WILWOOD ENGINEERING as of 11/26/2022
Model: 3922982
Supplier has not provided any fitment data for this product.
[More Info]

HPS rotors are close tolerance machined with turned grooved pad faces. The additional mass of the HP series extends service life on heavier competition vehicles and other severe duty applications. They are also the base model for every day use.

Additional Notes
Each rotor is precision machined to less than .001" tolerance for overall flatness, parallelism, and radial run-out on long grain carbon iron castings. Long grain carbon iron is used for its superior thermal conductivity and stability properties that resist distortion and fatigue.

About Wilwood Engineering

Wilwood Engineering designs and manufactures high-performance disc brake systems. Since the company’s inception in 1977 by Bill Wood, we have developed a substantial matrix of brake components and engineering techniques that allow us to quickly and reliably create brake systems for almost any application. Our core ability is the rapid development of custom engineered brake systems using a combination of off-the-shelf and custom components. In addition to designing and manufacturing brakes for all types of competitive motor sports, Wilwood also manufactures brake systems and components for agricultural equipment, industrial applications, utility vehicles, snowmobiles, quads, motorcycles and military vehicles.

With headquarters in Camarillo, California, Wilwood employs approximately 250 people. We have on-shelf stock of more than 300 different brake calipers, 200 rotor designs, 100 master cylinder designs and a wide assortment of brackets, fittings, valves and brake lines. Our off-shelf brake calipers range in size from tiny calipers used on go-carts and light duty industrial equipment, to heavy duty original equipment brakes for the U.S. military Humvee.

Wilwood's engineering department uses the latest computer-aided design and manufacturing techniques in conjunction with finite element analysis, dynamic test and cycle test equipment, to find high-performance and reliability solutions for the most difficult braking tasks. Our extensive inventory of proprietary on-the-shelf components allow us to provide cost-effective solutions for unique brake applications.

Wilwood is ISO 9000 compliant and has extensive experience maintaining quality levels of 100ppm or less for original equipment manufacturers.


Rotor Upgrades
Balanced No
Bedded No

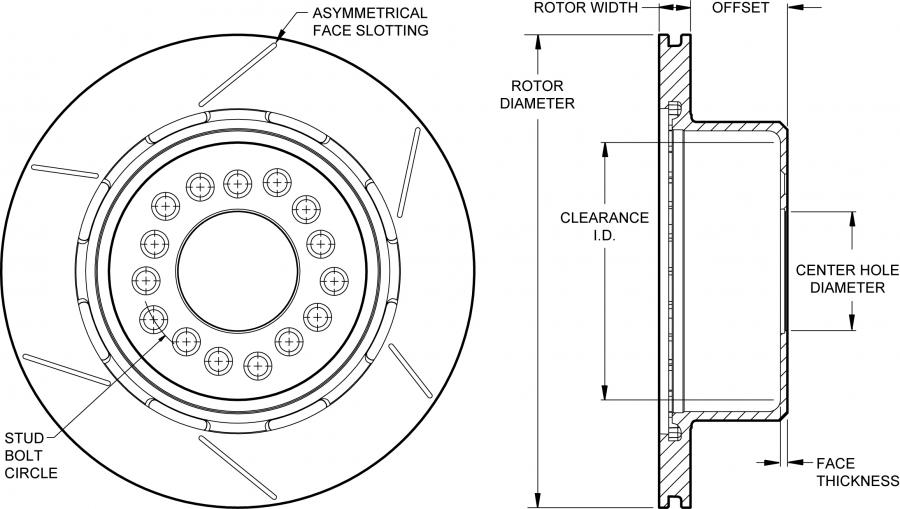

Additional Rotor Dimensions
Clearance Inside Diameter (in) 7.16
Face Thickness (in) 0.18
Far Side Inside Diameter (in) 8.38
Lug ID / Registration (in) 3.06
Offset Dimension (in) 1.910
Shoe Inside Dimension (in) 7.24
Stud Diameter (in) .56/.52/.52
Wheel Bolt Circle (in 5 x 4.50/4.75/5.00
Rotor Dimensions
Diameter (in) 12.19
Width (in) 0.81
Rotor Design
Material Iron
Vane Count 32 V
Weight(Lbs) 14.40
Rotor Style & Finish
Style GT Slotted
Surface Finish Plain
