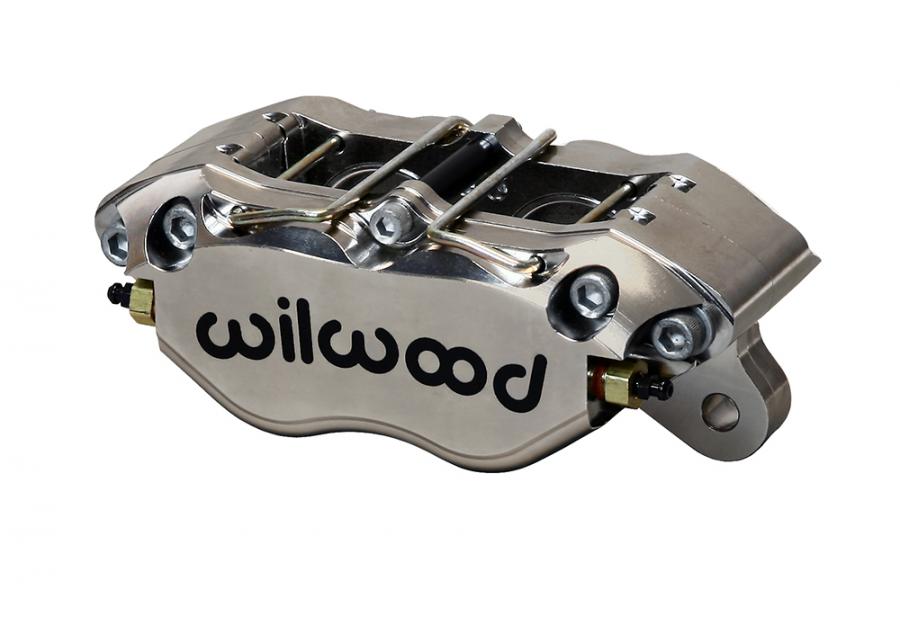

Wilwood Brakes Dynapro Lug Mount 120-14182-N

Wilwood Brakes Dynapro Lug Mount 120-14182-N
Wilwood Brakes Dynapro Lug Mount 120-14182-NWilwood Brakes Dynapro Lug Mount 120-14182-N
$392.99 ea
NEWARRIVING SOONEstimated Ship Date 11/02/2022 (If Ordered Today)5 available from WILWOOD ENGINEERING as of 10/01/2022
Model: 3924571
Supplier has not provided any fitment data for this product.
STANDARD
DELIVERY
STORE PICKUP
[More Info]

The DynaPro Lug Mount (DP) forged billet caliper represents the newest generation of calipers available as an upgrade or replacement for applications previously using the long-standing Dynalite model series. DP calipers combine pure race technology with several new exclusive Wilwood performance enhancements. A sleek profile with superior strength and a fully detail machined finish provide the performance and looks for competition or show.

The strength of the DynaPro is a combination of process and design. The DynaPro is stress-flow forged from premium grade billet. Stress-flow forging realigns the grain structure of the metal within the contour of the body design. This process produces a part with superior strength over parts simply machined from straight grained blocks of billet. The FEA generated body design incorporates a highly fortified radial transition that eliminates steps and shoulders between the piston housings and the bridges. Incorporating a radius in this critical area substantially increases resistance to deflection and caliper body separation under load. Structural deflection and volume displacement testing have proven the efficiency of this innovative design. Reductions in overall deflection, and the subsequent decreases in fluid volume displacement, translate to increased clamping efficiency with less pedal travel. The bottom line is a firm, responsive pedal with outstanding stopping power.

The DynaPro is loaded with other enhancements for performance and wider application. The calipers feature Quick-E-Clip pad retainers that support a 7812 type brake pad from the top. Not only does it allow for fast pad service without caliper removal, the bottom pad supports have been removed to create a slimmer profile that can be more easily fitted into tight clearance applications.

Additional Notes
Heavy wall stainless steel pistons are used to resist corrosion and slow the heat transfer from the pads. The heavy wall sectional thickness also provides additional strength against backside deflection to provide a firm pedal feel and efficient clamping, even at the high pressures generated by power boost systems. For additional strength, all DP calipers can be fitted with a center bridge bolt kit to provide even greater resistance against body separation under high load. Center bridge bolts are included with all side inlet "SI" models and available as an upgrade option on all other models.

About Wilwood Engineering

Wilwood Engineering designs and manufactures high-performance disc brake systems. Since the company’s inception in 1977 by Bill Wood, we have developed a substantial matrix of brake components and engineering techniques that allow us to quickly and reliably create brake systems for almost any application. Our core ability is the rapid development of custom engineered brake systems using a combination of off-the-shelf and custom components. In addition to designing and manufacturing brakes for all types of competitive motor sports, Wilwood also manufactures brake systems and components for agricultural equipment, industrial applications, utility vehicles, snowmobiles, quads, motorcycles and military vehicles.

With headquarters in Camarillo, California, Wilwood employs approximately 250 people. We have on-shelf stock of more than 300 different brake calipers, 200 rotor designs, 100 master cylinder designs and a wide assortment of brackets, fittings, valves and brake lines. Our off-shelf brake calipers range in size from tiny calipers used on go-carts and light duty industrial equipment, to heavy duty original equipment brakes for the U.S. military Humvee.

Wilwood's engineering department uses the latest computer-aided design and manufacturing techniques in conjunction with finite element analysis, dynamic test and cycle test equipment, to find high-performance and reliability solutions for the most difficult braking tasks. Our extensive inventory of proprietary on-the-shelf components allow us to provide cost-effective solutions for unique brake applications.

Wilwood is ISO 9000 compliant and has extensive experience maintaining quality levels of 100ppm or less for original equipment manufacturers.

Downloads:

Download Name File Size
fl195.pdf110.81KB

Specifications:

Parts & Accessories
Bleed Screw Kit 220-0627
Bridge Bolt Kit 230-10117
Cross-Over O-Ring Kit 130-10540
O-Ring Kit 130-2658
Pad Retainer 300-9634
Replacement Piston 1 200-7518
Replacement Piston 2 200-7518
Wear Plate L/H 300-5875
Wear Plate R/H 300-5875
Brake Pad Specifications
Brake Pad Type 1 7812
Total Pad Area (in²) 6.36
Total Pad Volume (in³) 2.1
Colors & Finish
Color Nickel
Finish Nickel Plate
Pistons
Dust Boot No
Piston Area (in²) 3.00
Piston Count 4
Piston Type Stainless
Mounting Specifications
Inlet Thread Size 1/8-27 NPT
Mount Center(in) 5.25
Mount Height(in) 2.10
Mount Hole Size(in) 0.39
Mount Side Universal
Mount Type Lug
Duty Rating & Material
Material Aluminum
Weight(Lbs) 3.8
Rotor Compatibility
Maximum Rotor Diameter(in) 13.06
Maximum Rotor Width (in) 0.38
Minimum Rotor Diameter(in) 10.00
Minimum Rotor Width (in) 0.25
Rotor Width (in) 0.38
Mounting
Mount Center(in) 5.25
Mount Side Universal
Mount Type Lug
Pad Dimensions
Pad Area (in²) 6.36
Pad Volume (in³) 2.1
Piston Specifications
Piston 1 Bore (in) 1.38
Piston 2 Bore (in) 1.38
Total Piston Area (in²) 3.00
Rotor Dimensions
Rotor Diameter(in) 13.06
Rotor Width (in) 0.38
