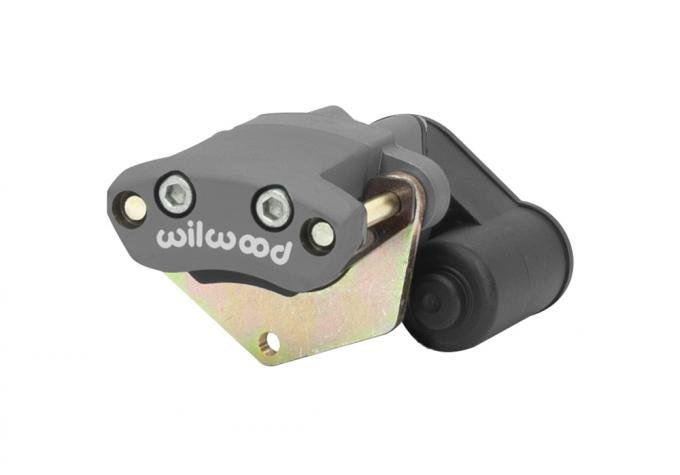

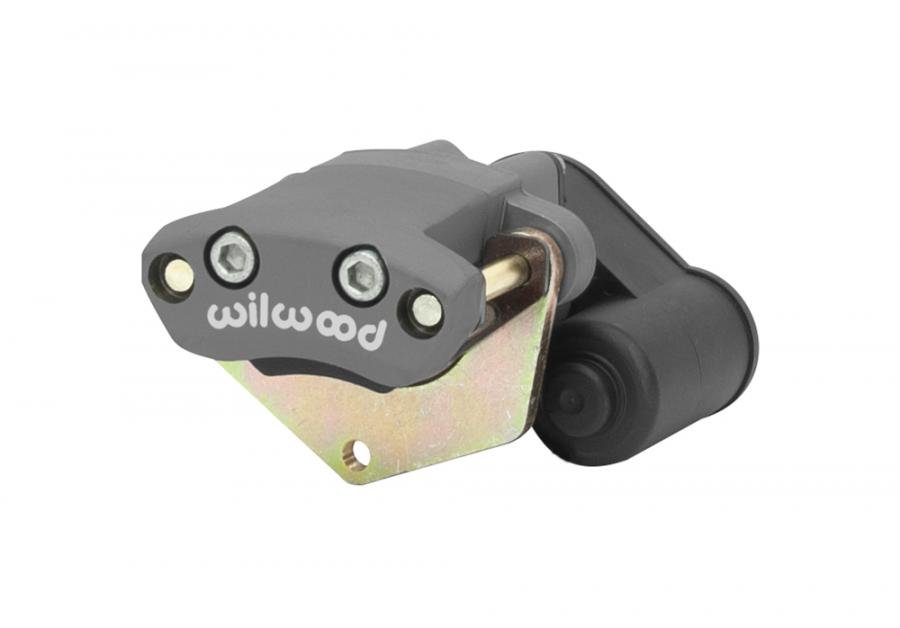

Wilwood Brakes Electric Parking Brake 120-15688

Wilwood Brakes Electric Parking Brake 120-15688
Wilwood Brakes Electric Parking Brake 120-15688
$549.99 ea
NEWARRIVING SOONEstimated Ship Date 10/05/2023 (If Ordered Today)16 available from WILWOOD ENGINEERING as of 09/21/2023
Model: 3924583
Supplier has not provided any fitment data for this product.

Wilwood’s new Electronic Parking Brake Caliper (EPB), is a high-torque alternative to manual cable actuated brakes. Offering a simplified installation with additional electronic control systems also available from Wilwood. Available in popular rotor widths of 0.81”, 1.10” and 1.25”.

About Wilwood Engineering

Wilwood Engineering designs and manufactures high-performance disc brake systems. Since the company’s inception in 1977 by Bill Wood, we have developed a substantial matrix of brake components and engineering techniques that allow us to quickly and reliably create brake systems for almost any application. Our core ability is the rapid development of custom engineered brake systems using a combination of off-the-shelf and custom components. In addition to designing and manufacturing brakes for all types of competitive motor sports, Wilwood also manufactures brake systems and components for agricultural equipment, industrial applications, utility vehicles, snowmobiles, quads, motorcycles and military vehicles.

With headquarters in Camarillo, California, Wilwood employs approximately 250 people. We have on-shelf stock of more than 300 different brake calipers, 200 rotor designs, 100 master cylinder designs and a wide assortment of brackets, fittings, valves and brake lines. Our off-shelf brake calipers range in size from tiny calipers used on go-carts and light duty industrial equipment, to heavy duty original equipment brakes for the U.S. military Humvee.

Wilwood's engineering department uses the latest computer-aided design and manufacturing techniques in conjunction with finite element analysis, dynamic test and cycle test equipment, to find high-performance and reliability solutions for the most difficult braking tasks. Our extensive inventory of proprietary on-the-shelf components allow us to provide cost-effective solutions for unique brake applications.

Wilwood is ISO 9000 compliant and has extensive experience maintaining quality levels of 100ppm or less for original equipment manufacturers.


Brake Pad Specifications
Brake Pad Type 1 6407
Total Pad Area (in²) 1.7
Total Pad Volume (in³) 0.26
Colors & Finish
Color Ano
Finish Type III Ano
Dust Boot No
Piston Area (in²) 0.00
Piston Count 1
Piston Type Steel
Duty Rating & Material
Material Aluminum
Weight(Lbs) 5.1
Rotor Compatibility
Maximum Rotor Diameter(in) 12.88
Maximum Rotor Width (in) 1.25
Minimum Rotor Diameter(in) 11.00
Minimum Rotor Width (in) 1.19
Rotor Width (in) 1.25
Mounting Specifications
Mount Center(in) 2.00
Mount Height(in) 1.18
Mount Side Left Hand
Mount Type Lug
Mount Center(in) 2.00
Mount Side Left Hand
Mount Type Lug
Pad Dimensions
Pad Area (in²) 1.7
Pad Volume (in³) 0.26
Piston Specifications
Piston 1 Bore (in) 1.25
Total Piston Area (in²) 0.00
Rotor Dimensions
Rotor Diameter(in) 12.88
Rotor Width (in) 1.25
