Wilwood Brakes SC1 Single Piston 120-9851

Wilwood Brakes SC1 Single Piston 120-9851
Wilwood Brakes SC1 Single Piston 120-9851Wilwood Brakes SC1 Single Piston 120-9851
$91.99 ea
NEWARRIVING SOONEstimated Ship Date 10/26/2022 (If Ordered Today)8 available from WILWOOD ENGINEERING as of 09/24/2022
Model: 3924483
Supplier has not provided any fitment data for this product.
STANDARD
DELIVERY
STORE PICKUP
[More Info]

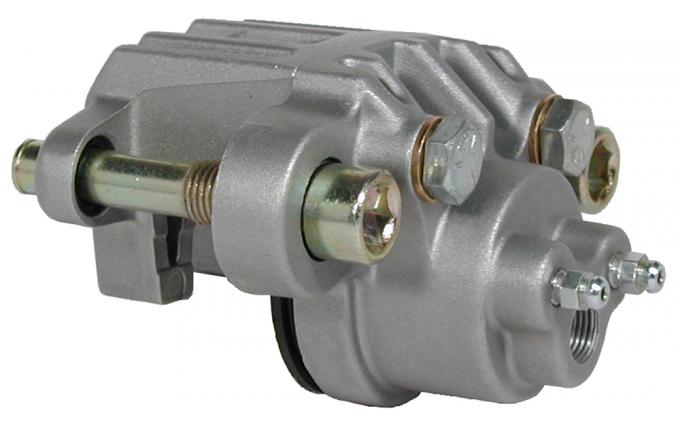

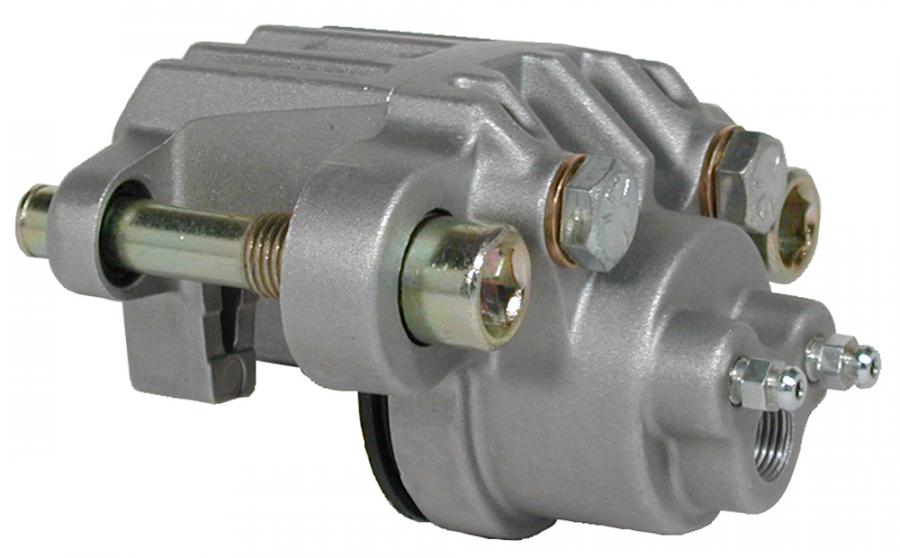

Designed, engineered and manufactured in the U.S.A., this floating die cast aluminum caliper is a strong, compact, inexpensive answer to the braking needs of recreational, agricultural and industrial vehicles. Features of this single piston design include availability of either 1.06”, 1.19” or 1.25” bore size, fitted dust seal to prevent ingress of environmental contamination, dual bleed fittings for versatility in mounting position and fluid inlets in M10 x 1.0 banjo.

The mounting system features corrosion resistant slide pins floating in viscoelastic rings mounted in the ears of the body for smooth, rattle-free operation. This system controls pad knock-back to retain a consistent pedal or hand lever feel throughout the life of the pads. Weight: from 1.1 pounds. Rotor thickness range: .15” to .25”

About Wilwood Engineering

Wilwood Engineering designs and manufactures high-performance disc brake systems. Since the company’s inception in 1977 by Bill Wood, we have developed a substantial matrix of brake components and engineering techniques that allow us to quickly and reliably create brake systems for almost any application. Our core ability is the rapid development of custom engineered brake systems using a combination of off-the-shelf and custom components. In addition to designing and manufacturing brakes for all types of competitive motor sports, Wilwood also manufactures brake systems and components for agricultural equipment, industrial applications, utility vehicles, snowmobiles, quads, motorcycles and military vehicles.

With headquarters in Camarillo, California, Wilwood employs approximately 250 people. We have on-shelf stock of more than 300 different brake calipers, 200 rotor designs, 100 master cylinder designs and a wide assortment of brackets, fittings, valves and brake lines. Our off-shelf brake calipers range in size from tiny calipers used on go-carts and light duty industrial equipment, to heavy duty original equipment brakes for the U.S. military Humvee.

Wilwood's engineering department uses the latest computer-aided design and manufacturing techniques in conjunction with finite element analysis, dynamic test and cycle test equipment, to find high-performance and reliability solutions for the most difficult braking tasks. Our extensive inventory of proprietary on-the-shelf components allow us to provide cost-effective solutions for unique brake applications.

Wilwood is ISO 9000 compliant and has extensive experience maintaining quality levels of 100ppm or less for original equipment manufacturers.

Downloads:

Download Name File Size
fl114.pdf1.09MB

Specifications:

Parts & Accessories
Bleed Screw Kit 220-7496
O-Ring Kit 130-10539
Replacement Dust Boot 210-6391
Replacement Piston 1 200-5790
Brake Pad Specifications
Brake Pad Type 1 6407
Total Pad Area (in²) 1.7
Total Pad Volume (in³) 0.26
Colors & Finish
Color Clear
Finish Clear Anodize
Pistons
Dust Boot Yes
Piston Area (in²) 1.23
Piston Count 1
Piston Type Aluminum

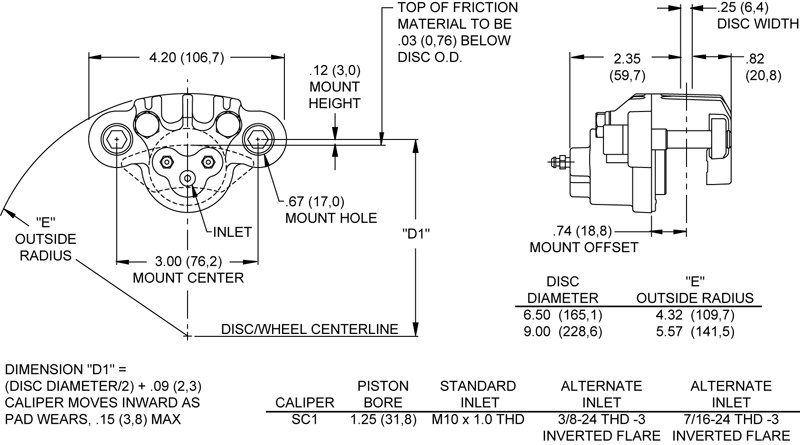

Mounting Specifications
Inlet Thread Size M10 x 1.00
Mount Center(in) 3.00
Mount Height(in) 0.12
Mount Hole Size(in) 0.67
Mount Side Universal
Mount Type Floating
Duty Rating & Material
Material Aluminum
Weight(Lbs) 1.3
Rotor Compatibility
Maximum Rotor Diameter(in) 9.00
Maximum Rotor Width (in) 0.25
Minimum Rotor Diameter(in) 6.50
Minimum Rotor Width (in) 0.15
Rotor Width (in) 0.25
Mounting
Mount Center(in) 3.00
Mount Side Universal
Mount Type Floating
Pad Dimensions
Pad Area (in²) 1.7
Pad Volume (in³) 0.26
Piston Specifications
Piston 1 Bore (in) 1.25
Total Piston Area (in²) 1.23
Rotor Dimensions
Rotor Diameter(in) 9.00
Rotor Width (in) 0.25
