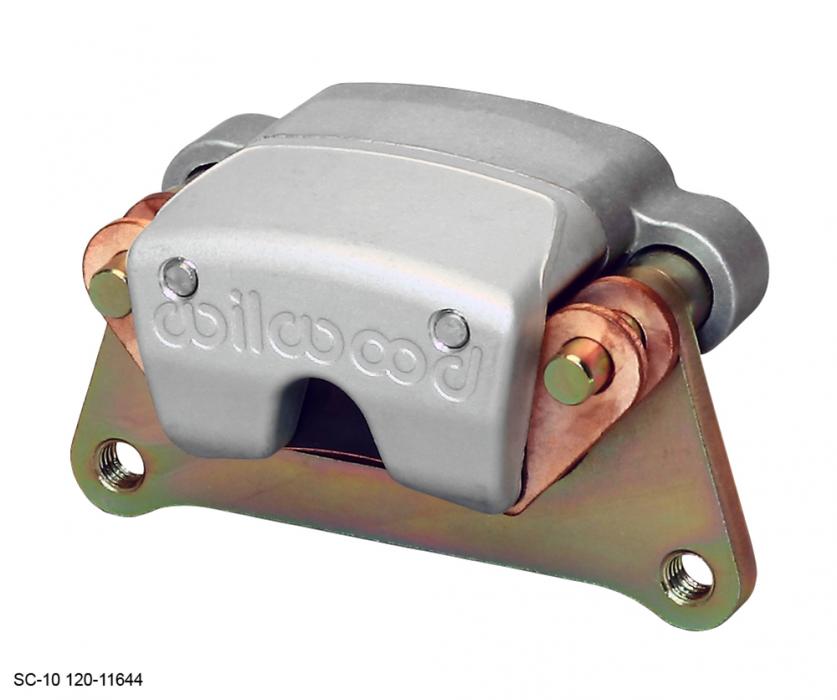

Wilwood Brakes SC10 2 Piston 120-11644

Wilwood Brakes SC10 2 Piston 120-11644
Wilwood Brakes SC10 2 Piston 120-11644Wilwood Brakes SC10 2 Piston 120-11644
$155.99 ea
NEWARRIVING SOONEstimated Ship Date 11/02/2022 (If Ordered Today)50 available from WILWOOD ENGINEERING as of 10/01/2022
Model: 3924492
Supplier has not provided any fitment data for this product.
STANDARD
DELIVERY
STORE PICKUP
[More Info]

Designed, engineered and manufactured in the U.S.A., this floating die cast aluminum caliper is a strong, compact, inexpensive answer to the braking needs of recreational, agricultural and industrial vehicles. Features of this dual piston design with 1.06” bore size, dual inlet/ outlet fittings for versatility in mounting position by swapping the bleed screw and banjo bolt inlet. Inlets are threaded 10mm x 1.00. Sintered metallic brake pads and brackets are included.

About Wilwood Engineering

Wilwood Engineering designs and manufactures high-performance disc brake systems. Since the company’s inception in 1977 by Bill Wood, we have developed a substantial matrix of brake components and engineering techniques that allow us to quickly and reliably create brake systems for almost any application. Our core ability is the rapid development of custom engineered brake systems using a combination of off-the-shelf and custom components. In addition to designing and manufacturing brakes for all types of competitive motor sports, Wilwood also manufactures brake systems and components for agricultural equipment, industrial applications, utility vehicles, snowmobiles, quads, motorcycles and military vehicles.

With headquarters in Camarillo, California, Wilwood employs approximately 250 people. We have on-shelf stock of more than 300 different brake calipers, 200 rotor designs, 100 master cylinder designs and a wide assortment of brackets, fittings, valves and brake lines. Our off-shelf brake calipers range in size from tiny calipers used on go-carts and light duty industrial equipment, to heavy duty original equipment brakes for the U.S. military Humvee.

Wilwood's engineering department uses the latest computer-aided design and manufacturing techniques in conjunction with finite element analysis, dynamic test and cycle test equipment, to find high-performance and reliability solutions for the most difficult braking tasks. Our extensive inventory of proprietary on-the-shelf components allow us to provide cost-effective solutions for unique brake applications.

Wilwood is ISO 9000 compliant and has extensive experience maintaining quality levels of 100ppm or less for original equipment manufacturers.

Downloads:

Download Name File Size
fl242.pdf262.75KB

Specifications:

Parts & Accessories
Bleed Screw Kit 220-5933
O-Ring Kit 130-10539
Replacement Dust Boot 210-13419
Replacement Piston 1 200-11647

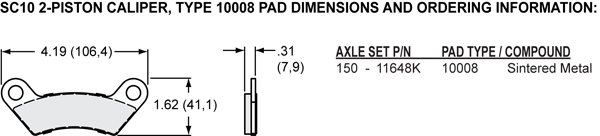

Brake Pad Specifications
Brake Pad Type 1 10008
Colors & Finish
Color Clear
Finish Clear Anodize
Pistons
Dust Boot No
Piston Area (in²) 1.06
Piston Count 2
Piston Type Aluminum

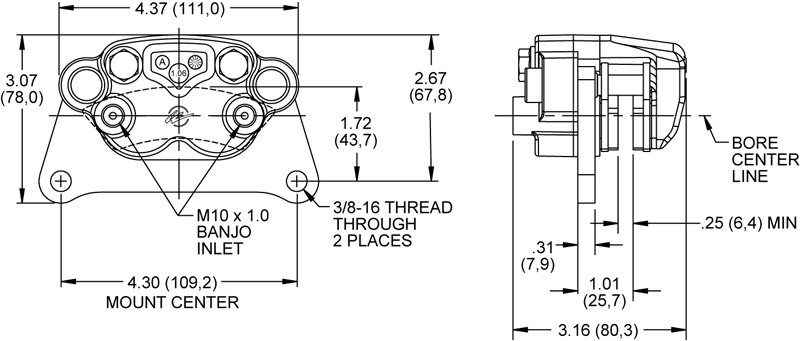

Mounting Specifications
Inlet Thread Size M10 x 1.00
Mount Center(in) 4.30
Mount Height(in) 1.72
Mount Side Universal
Mount Type Floating
Duty Rating & Material
Material Aluminum
Weight(Lbs) 1.8
Rotor Compatibility
Maximum Rotor Diameter(in) 9.00
Maximum Rotor Width (in) 0.25
Minimum Rotor Diameter(in) 6.50
Minimum Rotor Width (in) 0.15
Rotor Width (in) 0.25
Mounting
Mount Center(in) 4.30
Mount Side Universal
Mount Type Floating
Piston Specifications
Piston 1 Bore (in) 1.06
Piston 2 Bore (in) 1.06
Total Piston Area (in²) 1.06
Rotor Dimensions
Rotor Diameter(in) 9.00
Rotor Width (in) 0.25
