Wilwood Brakes TX6R Forged Radial Mount 120-14600

Wilwood Brakes TX6R Forged Radial Mount 120-14600
Wilwood Brakes TX6R Forged Radial Mount 120-14600Wilwood Brakes TX6R Forged Radial Mount 120-14600
$864.99 ea
NEWARRIVING SOONEstimated Ship Date 10/06/2023 (If Ordered Today)7 available from WILWOOD ENGINEERING as of 09/22/2023
Model: 3924577
Supplier has not provided any fitment data for this product.

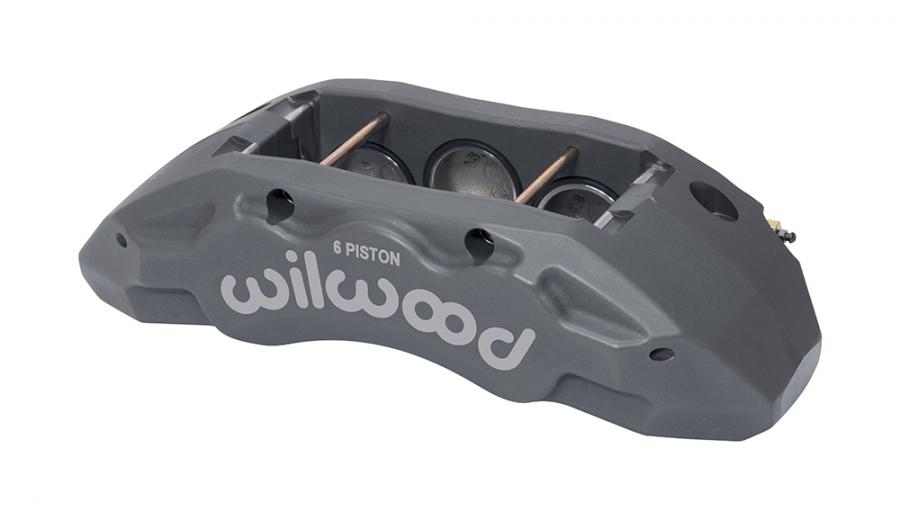

The Tactical Xtreme TX6R radial mount six-piston calipers are engineered and purpose built for severe duty service on heavy duty Trucks, SUV's, and Class 1, 2, and 3 Armored Vehicles up to 14,000 lbs. GVWR. The combination of the forged aluminum body, stainless steel pistons, large pad volume, and the ability to accommodate brake rotors up to 1.50” thick, make the TX6R the ultimate choice for high strength, lightweight, and tactical level braking capacity for all types of highway and off-road extreme duty service applications. TX6R calipers have a hard anodized finish on base models with options for gloss black or red powder coat.

Tactical Xtreme TX6R calipers features include: a Versatile and easily adapted radial mount design. A Stress flow forged aluminum 6-piston body design with Stainless steel pistons with high-temp internal bore seals. Developed for rotors from 14.25” to 16.00” diameter and rotor widths from 1.38” to 1.50”. Easy access top loaded type 10120,.770” thick pads with rigid .240” thick backing plates. Stainless steel bridge plates and Protected single bleed design with internal fluid ports.

About Wilwood Engineering

Wilwood Engineering designs and manufactures high-performance disc brake systems. Since the company’s inception in 1977 by Bill Wood, we have developed a substantial matrix of brake components and engineering techniques that allow us to quickly and reliably create brake systems for almost any application. Our core ability is the rapid development of custom engineered brake systems using a combination of off-the-shelf and custom components. In addition to designing and manufacturing brakes for all types of competitive motor sports, Wilwood also manufactures brake systems and components for agricultural equipment, industrial applications, utility vehicles, snowmobiles, quads, motorcycles and military vehicles.

With headquarters in Camarillo, California, Wilwood employs approximately 250 people. We have on-shelf stock of more than 300 different brake calipers, 200 rotor designs, 100 master cylinder designs and a wide assortment of brackets, fittings, valves and brake lines. Our off-shelf brake calipers range in size from tiny calipers used on go-carts and light duty industrial equipment, to heavy duty original equipment brakes for the U.S. military Humvee.

Wilwood's engineering department uses the latest computer-aided design and manufacturing techniques in conjunction with finite element analysis, dynamic test and cycle test equipment, to find high-performance and reliability solutions for the most difficult braking tasks. Our extensive inventory of proprietary on-the-shelf components allow us to provide cost-effective solutions for unique brake applications.

Wilwood is ISO 9000 compliant and has extensive experience maintaining quality levels of 100ppm or less for original equipment manufacturers.


Download Name File Size


Parts & Accessories
Bleed Screw Kit 220-0627
Cross-Over O-Ring Kit 130-10540
O-Ring Kit 130-3084
Pad Retainer 180-9874
Replacement Piston 1 200-7519
Replacement Piston 2 200-7516
Replacement Piston 3 200-7516
Wear Plate L/H 300-5922
Wear Plate R/H 300-5923
Brake Pad Specifications
Brake Pad Type 1 10120
Total Pad Area (in²) 12.69
Total Pad Volume (in³) 6.81
Colors & Finish
Color Ano
Finish Type III Ano
Dust Boot Yes
Piston Area (in²) 5.06
Piston Count 6
Piston Type Stainless
Mounting Specifications
Inlet Thread Size 1/8-27 NPT
Mount Center(in) 9.63
Mount Height(in) 3.07
Mount Side Left Hand
Mount Type Radial
Duty Rating & Material
Material Aluminum
Weight(Lbs) 13.6
Rotor Compatibility
Maximum Rotor Diameter(in) 16.00
Maximum Rotor Width (in) 1.38
Minimum Rotor Diameter(in) 14.25
Minimum Rotor Width (in) 1.30
Rotor Width (in) 1.38
Mount Center(in) 9.63
Mount Side Left Hand
Mount Type Radial
Pad Dimensions
Pad Area (in²) 12.69
Pad Volume (in³) 6.81
Piston Specifications
Piston 1 Bore (in) 1.62
Piston 2 Bore (in) 1.38
Piston 3 Bore (in) 1.38
Total Piston Area (in²) 5.06
Rotor Dimensions
Rotor Diameter(in) 16.00
Rotor Width (in) 1.38
