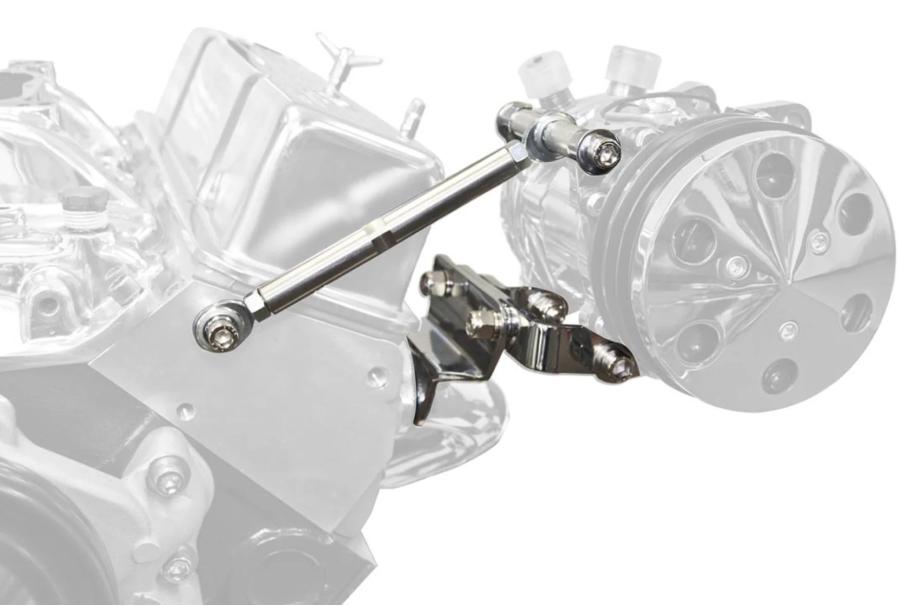

Adjustable A/C header-mount bracket kit for Chevrolet small-block engines using a Sanden 508 compressor. Driver-side mount attaches to the #1 cylinder header tube. Designed for tubular header applications only. Available with black-plated or chrome-plated steel brackets; includes a stainless steel adjustable tensioning rod. Compatible with short and long water pumps.
Key Features
- Compatibility: Small Block Chevy (SBC) engines
- Compressor Fitment: Sanden 508
- Mounting Location: Driver side
- Header Fitment: Attaches at #1-cylinder exhaust port; not compatible with stock manifolds
- Water Pump Compatibility: Works with short (SWP) and long (LWP) water pumps
- Bracket Material: Black-plated or Chrome-plated steel
- Tensioning Rod: Stainless steel with LH/RH threads for on-car adjustment
- Application: Header-equipped SBC engines, hot rods, custom builds

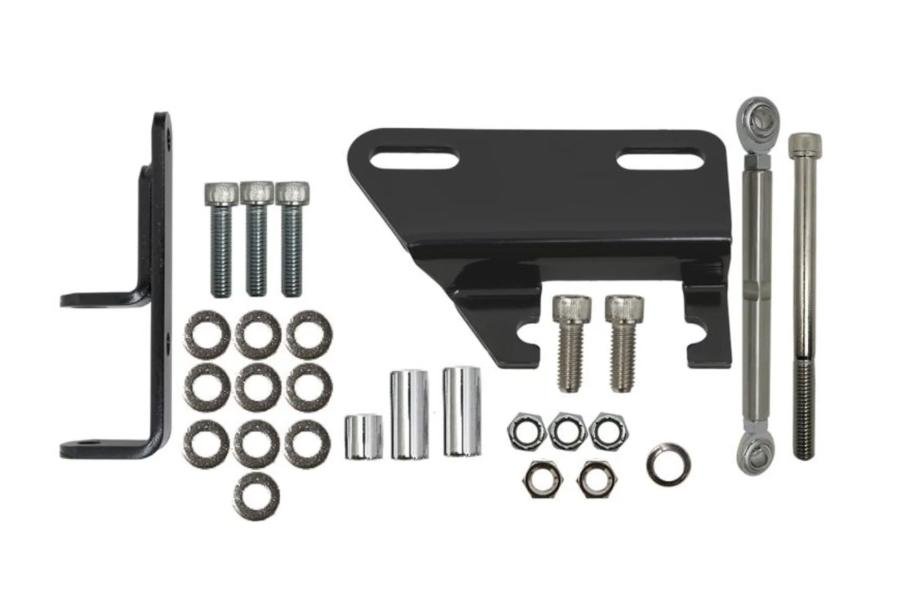

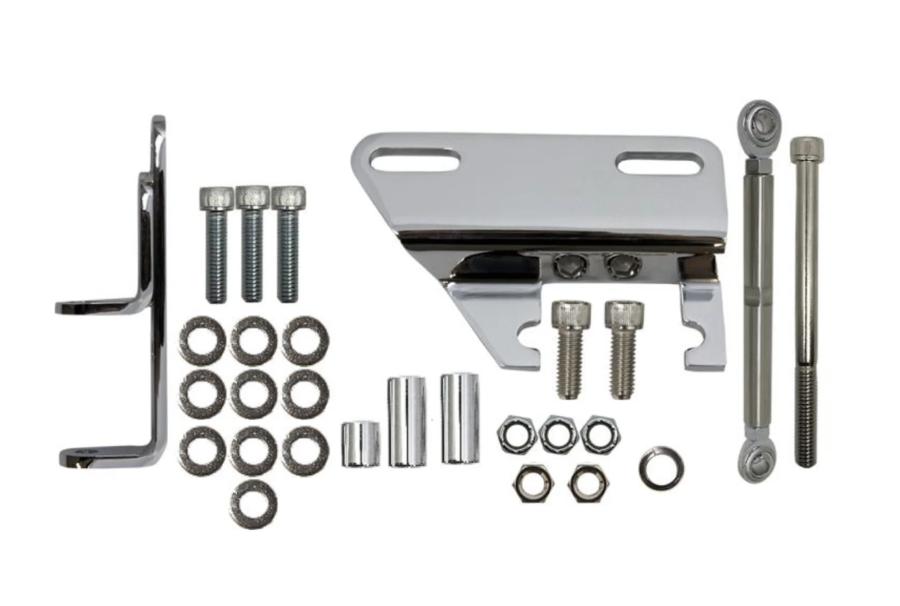

Kit Includes
- Steel A/C Compressor Bracket – Header Mount (Black or Chrome)
- Steel Header Bracket – Header Mount (Black or Chrome)
- Stainless Steel 5-1/2" Adjustable Tensioning Rod – Natural Finish
Rod Dimensions
- Rod Diameter: 5/8"
- Center-to-Center: 7-3/8"
- Center-to-Center Extended: 8-7/8"
- Heim Thread: 3/4-24 SAE
- Eyelet Hole: 3/8"
- Adjustment Range: 3/4" per end
Additional Notes
- For tubular headers only
- Not compatible with stock exhaust manifolds
- Sanden 508 compressor not included
