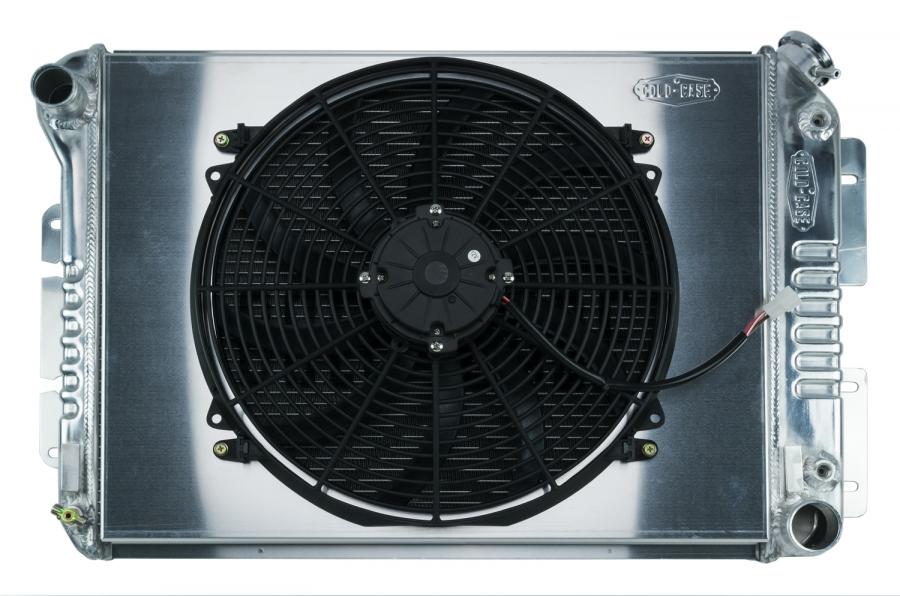

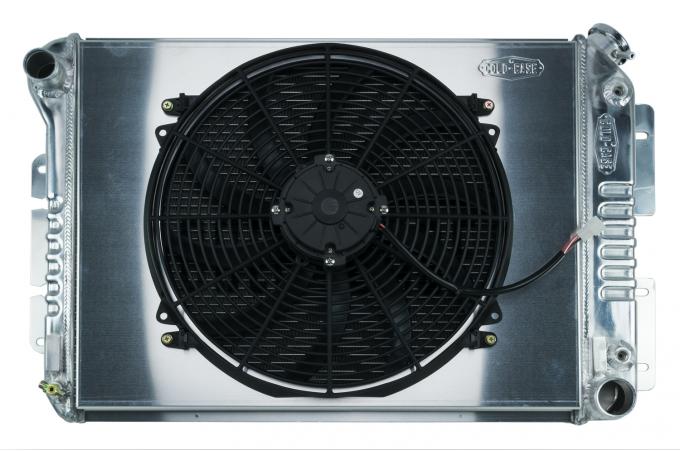

Cold Case Radiators 67-69 Camaro BB / Firebird Auto Transmission Aluminum Radiator and 16 Inch Fan Kit CHC11AK

Cold Case Radiators 67-69 Camaro BB / Firebird Auto Transmission Aluminum Radiator and 16 Inch Fan Kit CHC11AK
$1,115.99 kt

Popular Addons


NEWARRIVING SOONEstimated Ship Date 04/10/2024 (If Ordered Today)
Model: 3933883
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
SHIPPING
INCLUDED

67-69 Camaro BB / Firebird Auto Transmission Aluminum Radiator and 16 Inch Fan Kit. AT Cars. These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.

These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.
Fits:

  • 67-69 Firebird
  • 67-69 Camaro
  • 68-71 Nova w/ bracket mount

Details:

  • 100 percent TIG welded
  • Fan Diameter 16 Inch
  • All Aluminum
  • Polished OE style tanks
  • (2) 1.25 inch Tubes
  • 16 fins per inch
  • Corrugated fins that give more surface area and more thermal transfer
  • Pressure tested
  • For automatic transmission
  • Direct fitment for 67-69 Camaro BB/Firebird/Trans Am
  • Old Part Number: RFE11AL

Radiator Specs

  • Core Height 16.85 inch
  • Core Width 23 inch
  • Overall Height 18.5 inch
  • Overall Width 27.5 inch
  • Overall Thickness 6 inch
  • Tubes (2) 1.25 inch Tubes
  • Upper Hose 1.50 inch
  • Lower Hose 1.75 inch
About Cold Case Radiators

Cold-Case Radiators® is a division of Max Performance Inc, a leading supplier of auto restoration parts and accessories. Cold-Case Radiators® was founded in 2014 when a need for high quality aluminum radiators at a fair price surfaced. We're not new to the automotive business though. Max Performance Inc has been supplying the classic car market for over 35 years and Pypes Exhaust is our sister company, who has specialized in performance exhaust since 2003.

Our goal is simple. At Cold-Case Radiators®, we want to make aluminum performance radiators and accessories available and affordable to everyone. Even with our reduced prices, we do not sacrifice quality. All of our radiators are 100% tig welded aluminum. There is no cutting corners here.

We specialize in the Muscle Car market. From the 1950s all the way to present day, you will find Cold-Case Radiators® on American built muscle. The next time you want to upgrade that engine bay, remember the name...Cold-Case Radiators®.

Best thing about us is...Our radiators all come with a limited lifetime warranty! We stand behind our quality, research, and our products. If our radiator doesn't keep your car cool, send it back as part of our '60 day COOL Guarantee.'

Videos:

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Submodel Years Fitment Notes
Chevrolet Camaro RS 1967 - 1969 67-69 Camaro BB / Firebird AT 16 Inch
Chevy Big Block
8 Cylinder
Chevrolet Camaro SS 1967 - 1969 67-69 Camaro BB / Firebird AT 16 Inch
Chevy Big Block
8 Cylinder
Chevrolet Camaro Z28 1967 - 1969 67-69 Camaro BB / Firebird AT 16 Inch
Chevy Big Block
8 Cylinder
Chevrolet Camaro 1967 - 1969 67-69 Camaro BB / Firebird AT 16 Inch
Chevy Big Block
8 Cylinder
Pontiac Firebird 350 HO 1969 67-69 Camaro BB / Firebird AT 16 Inch
Chevy Big Block
8 Cylinder
Pontiac Firebird 350 1968 - 1969 67-69 Camaro BB / Firebird AT 16 Inch
Chevy Big Block
8 Cylinder
Pontiac Firebird 400 1967 - 1969 67-69 Camaro BB / Firebird AT 16 Inch
Chevy Big Block
8 Cylinder
Pontiac Firebird HO 1967 67-69 Camaro BB / Firebird AT 16 Inch
Chevy Big Block
8 Cylinder
Pontiac Firebird Sprint 1967 - 1969 67-69 Camaro BB / Firebird AT 16 Inch
Chevy Big Block
8 Cylinder
Pontiac Firebird Trans Am 1969 67-69 Camaro BB / Firebird AT 16 Inch
Chevy Big Block
8 Cylinder
Pontiac Firebird 1967 - 1969 67-69 Camaro BB / Firebird AT 16 Inch
Chevy Big Block
8 Cylinder

Specifications:

Amp Draw 5.69 Avg
Blade Material Curved Nylon
CA Proposition 65 CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Core Height 16.85 Inch
Core Width 23.0 Inch
Cylinders 8 Cylinder
Engine Chevy Big Block
Fan Diamter In 16 Inch
Fan Included Yes
Fan Quantity 1
Finish Polished
Fins Per Inch 16
Fits 67-69 Camaro BB / Firebird AT 16 Inch
Includes Includes radiator, fans and shroud
Lower Hose 1.77 Inch
Manufacturer Warranty Limited Lifetime Warranty
Material Aluminum
Max Fan Cfm 2800 CFM
Overall Height 18.5 Inch
Overall Width 27.50 Inch
Shroud Included Yes
Thickness 6.75 Inch
Trans Cooler Fitting Size 5/16 Inch Inverted Flare
Transmission Type Automatic
Upper Hose 1.5 Inch
Vehicle Type Car
Wiring Included No
