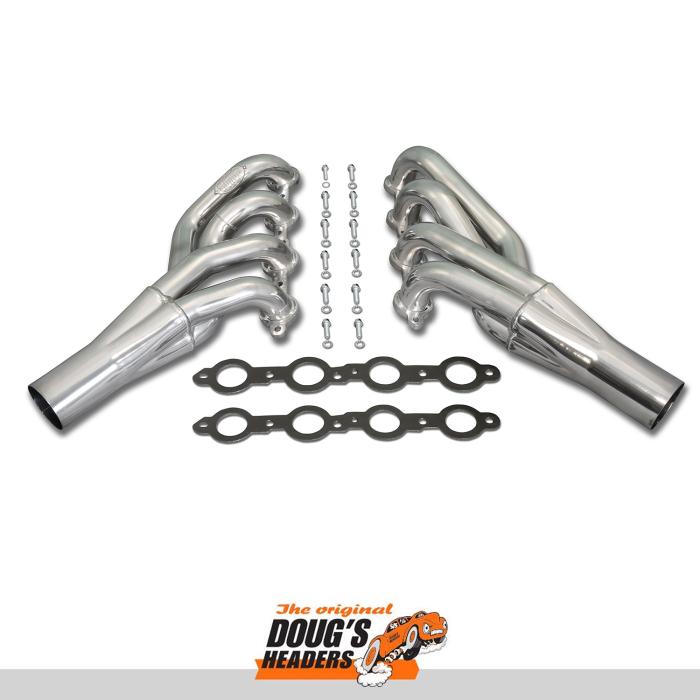

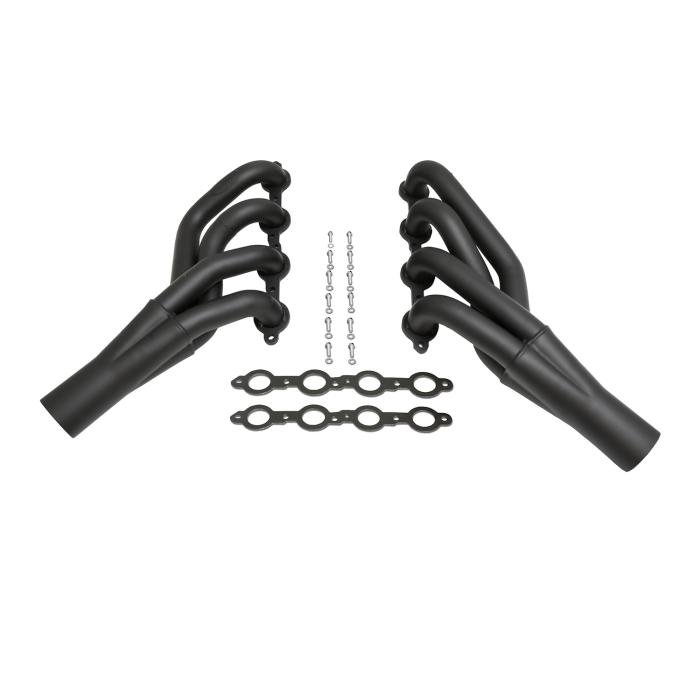

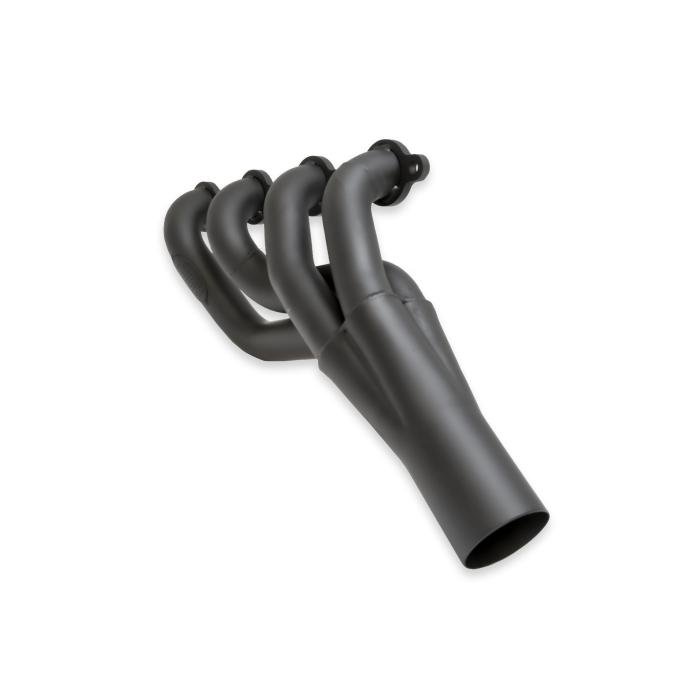

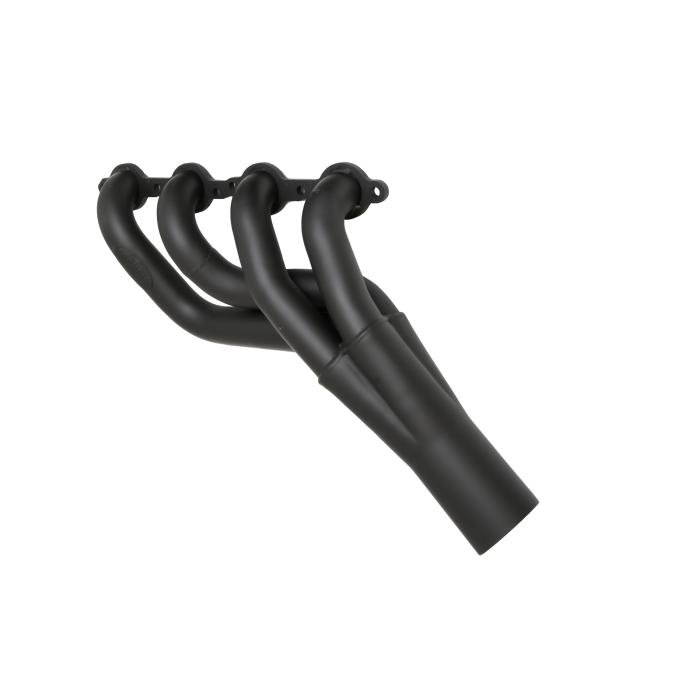

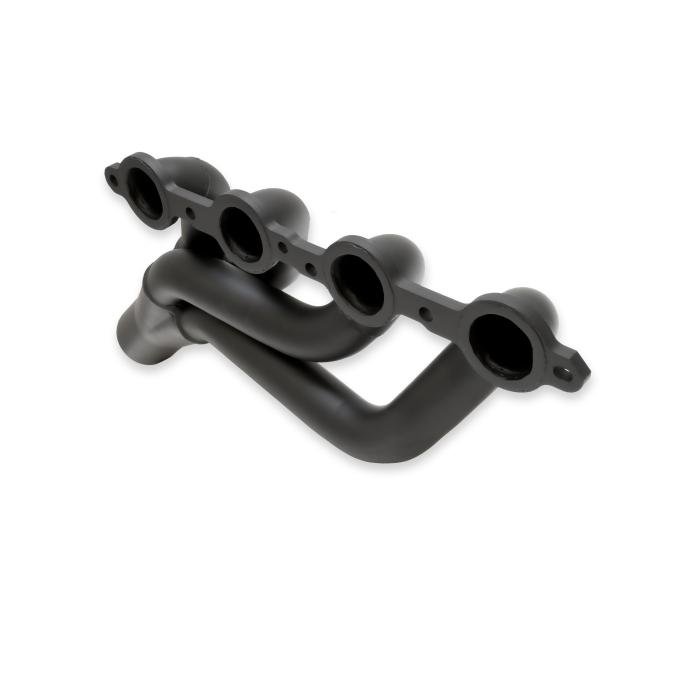

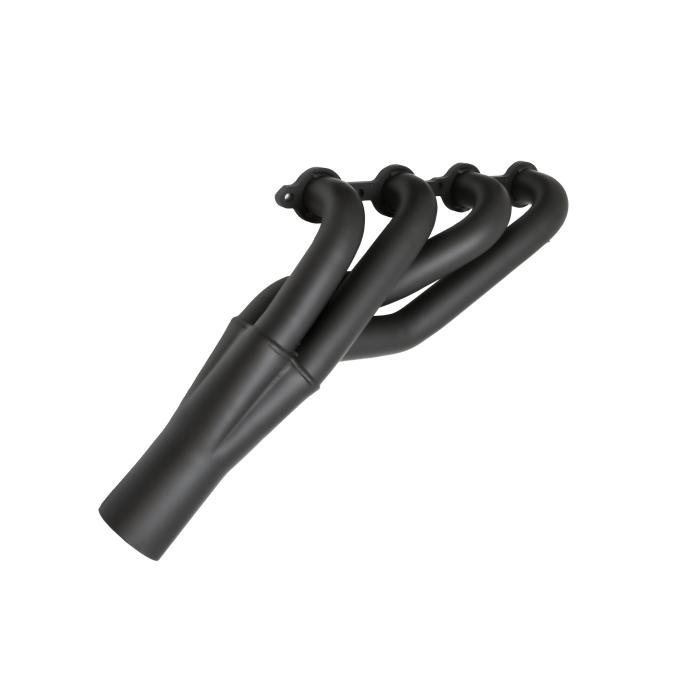

Doug's Headers 1970-81 GM F-Body LS Engine Swap 1 7/8" Mid-Length Header D3358

Doug's Headers 1970-81 GM F-Body LS Engine Swap 1 7/8" Mid-Length Header D3358
Doug's Headers 1970-81 GM F-Body LS Engine Swap 1 7/8" Mid-Length Header D3358Doug's Headers 1970-81 GM F-Body LS Engine Swap 1 7/8" Mid-Length Header D3358Doug's Headers 1970-81 GM F-Body LS Engine Swap 1 7/8" Mid-Length Header D3358Doug's Headers 1970-81 GM F-Body LS Engine Swap 1 7/8" Mid-Length Header D3358Doug's Headers 1970-81 GM F-Body LS Engine Swap 1 7/8" Mid-Length Header D3358
from $1,087.99 st

Available Options

*
Model: 5124783
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
SELECT
OPTIONS
STORE PICKUP
[More Info]
Mid-Length Headers, often called Clipsters, are engineered to provide superior performance gains over Manifold Replacements or Block Hugger style headers. These headers enhance your vehicles's horsepower and torque while preserving ground clearance for cars with a lowered stance and trucks where long tube headers may hang to low. This fitment is tailored for popular aftermarket engine swap kits. Doug's engine swap headers were developed to solve common fitment issues in tight spaces, making your swap process smoother. No more guesswork or modifications needed - just straightforward installations that save you time and frustration.
Features:
  • 3/8" Thick machined flanges to prevent warping
  • CNC mandrel bent tubes for ensuring accurate fit and optimal flow
  • Heavy duty 16-gauge tubing for long life
  • Tubes are pre-polished to removed scratches before applying metallic ceramic or hi-temp black coating
About Doug's Headers

Doug's Headers are a fixture in the motorsports aftermarket, pioneering quality muscle car performance headers for decades. Unlike the competition, Doug's Headers prides ourselves on superior design detail resulting in a hassle-free installation for any application.

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Years Engine Fitment Notes
Chevrolet Camaro 1970 6.6L / 402 / V8
5.0L / 307 / V8
5.7L / 350 / V8
For use with Chevrolet LS Engine Swap.
Use with Doug's LS Engine Motor and Transmission mounts.
Mid Length
Chevrolet Camaro 1971 5.0L / 307 / V8
5.7L / 350 / V8
6.6L / 402 / V8
For use with Chevrolet LS Engine Swap.
Use with Doug's LS Engine Motor and Transmission mounts.
Mid Length
Chevrolet Camaro 1972 5.0L / 307 / V8
6.6L / 402 / V8
5.7L / 350 / V8
For use with Chevrolet LS Engine Swap.
Use with Doug's LS Engine Motor and Transmission mounts.
Mid Length
Chevrolet Camaro 1973 5.0L / 307 / V8
5.7L / 350 / V8
For use with Chevrolet LS Engine Swap.
Use with Doug's LS Engine Motor and Transmission mounts.
Mid Length
Chevrolet Camaro 1974 5.7L / 350 / V8 For use with Chevrolet LS Engine Swap.
Use with Doug's LS Engine Motor and Transmission mounts.
Mid Length
Chevrolet Camaro 1975 5.7L / 350 / V8 For use with Chevrolet LS Engine Swap.
Use with Doug's LS Engine Motor and Transmission mounts.
Mid Length
Chevrolet Camaro 1976 5.0L / 305 / V8
5.7L / 350 / V8
For use with Chevrolet LS Engine Swap.
Use with Doug's LS Engine Motor and Transmission mounts.
Mid Length
Chevrolet Camaro 1977 5.0L / 305 / V8
5.7L / 350 / V8
For use with Chevrolet LS Engine Swap.
Use with Doug's LS Engine Motor and Transmission mounts.
Mid Length
Chevrolet Camaro 1978 5.0L / 305 / V8
5.7L / 350 / V8
For use with Chevrolet LS Engine Swap.
Use with Doug's LS Engine Motor and Transmission mounts.
Mid Length
Chevrolet Camaro 1979 5.0L / 305 / V8
5.7L / 350 / V8
For use with Chevrolet LS Engine Swap.
Use with Doug's LS Engine Motor and Transmission mounts.
Mid Length
Chevrolet Camaro 1980 5.0L / 305 / V8
4.4L / 267 / V8
5.7L / 350 / V8
For use with Chevrolet LS Engine Swap.
Use with Doug's LS Engine Motor and Transmission mounts.
Mid Length
Chevrolet Camaro 1981 5.0L / 305 / V8
4.4L / 267 / V8
5.7L / 350 / V8
For use with Chevrolet LS Engine Swap.
Use with Doug's LS Engine Motor and Transmission mounts.
Mid Length
Pontiac Firebird 1970 6.6L / 400 / V8
5.7L / 350 / V8
For use with Chevrolet LS Engine Swap.
Use with Doug's LS Engine Motor and Transmission mounts.
Mid Length
Pontiac Firebird 1971 7.5L / 455 / V8
6.6L / 400 / V8
5.7L / 350 / V8
For use with Chevrolet LS Engine Swap.
Use with Doug's LS Engine Motor and Transmission mounts.
Mid Length
Pontiac Firebird 1972 7.5L / 455 / V8
6.6L / 400 / V8
5.7L / 350 / V8
For use with Chevrolet LS Engine Swap.
Use with Doug's LS Engine Motor and Transmission mounts.
Mid Length
Pontiac Firebird 1973 7.5L / 455 / V8
6.6L / 400 / V8
5.7L / 350 / V8
For use with Chevrolet LS Engine Swap.
Use with Doug's LS Engine Motor and Transmission mounts.
Mid Length
Pontiac Firebird 1974 7.5L / 455 / V8
6.6L / 400 / V8
5.7L / 350 / V8
For use with Chevrolet LS Engine Swap.
Use with Doug's LS Engine Motor and Transmission mounts.
Mid Length
Pontiac Firebird 1975 7.5L / 455 / V8
5.7L / 350 / V8
6.6L / 400 / V8
For use with Chevrolet LS Engine Swap.
Use with Doug's LS Engine Motor and Transmission mounts.
Mid Length
Pontiac Firebird 1976 7.5L / 455 / V8
5.7L / 350 / V8
6.6L / 400 / V8
For use with Chevrolet LS Engine Swap.
Use with Doug's LS Engine Motor and Transmission mounts.
Mid Length
Pontiac Firebird 1977 5.0L / 305 / V8
5.7L / 350 / V8
6.6L / 400 / V8
4.9L / 301 / V8
6.6L / 403 / V8
For use with Chevrolet LS Engine Swap.
Use with Doug's LS Engine Motor and Transmission mounts.
Mid Length
Pontiac Firebird 1978 6.6L / 400 / V8
6.6L / 403 / V8
5.0L / 305 / V8
5.7L / 350 / V8
For use with Chevrolet LS Engine Swap.
Use with Doug's LS Engine Motor and Transmission mounts.
Mid Length
Pontiac Firebird 1979 6.6L / 400 / V8
6.6L / 403 / V8
5.0L / 305 / V8
5.7L / 350 / V8
4.9L / 301 / V8
For use with Chevrolet LS Engine Swap.
Use with Doug's LS Engine Motor and Transmission mounts.
Mid Length
Pontiac Firebird 1980 4.3L / 265 / V8
5.0L / 305 / V8
4.9L / 301 / V8
For use with Chevrolet LS Engine Swap.
Use with Doug's LS Engine Motor and Transmission mounts.
Mid Length
Pontiac Firebird 1981 5.0L / 305 / V8
4.4L / 267 / V8
4.3L / 265 / V8
4.9L / 301 / V8
For use with Chevrolet LS Engine Swap.
Use with Doug's LS Engine Motor and Transmission mounts.
Mid Length

Specifications:

Collector Attachment Slip fit
Collector Diameter 3.0 IN
Collector Port Diameter 3.0 IN
Cylinder Head Port Shape Round
Design Mid Length
Flange Thickness 0.375 IN
Gasket Or Seal Included Yes
Gaskets Included Yes
Grade Type Performance
Header Style Mid Length
Mounting Hardware Included Yes
Oxygen Sensor Port No
Part Type Exhaust Header
Port Shape Round
Primary Tube Outside Diameter 1.875 IN
Proposition 65 www.P65Warnings.ca.gov
Tube Wall Thickness 16 GU
Warranty Time 24 Months
