Earl's Breather Tank / Catch Can CT101ERL

Name: Earl's Breather Tank / Catch Can CT101ERL
Brand: Earl's Performance
SKU: 4003931
Price: 162.99 CAD
Availability: InStock

$162.99 ea

NEWARRIVING SOONEstimated Ship Date 05/23/2024 (If Ordered Today)64 Available from HOLLEY PERFORMANCE PRODUCTS as of 05/01/2024

Model: 4003931

0 reviewsWrite a Review Add to Wish List

CALL US
855.444.6872

Description Specifications Reviews (0) Product Q&A Related Products

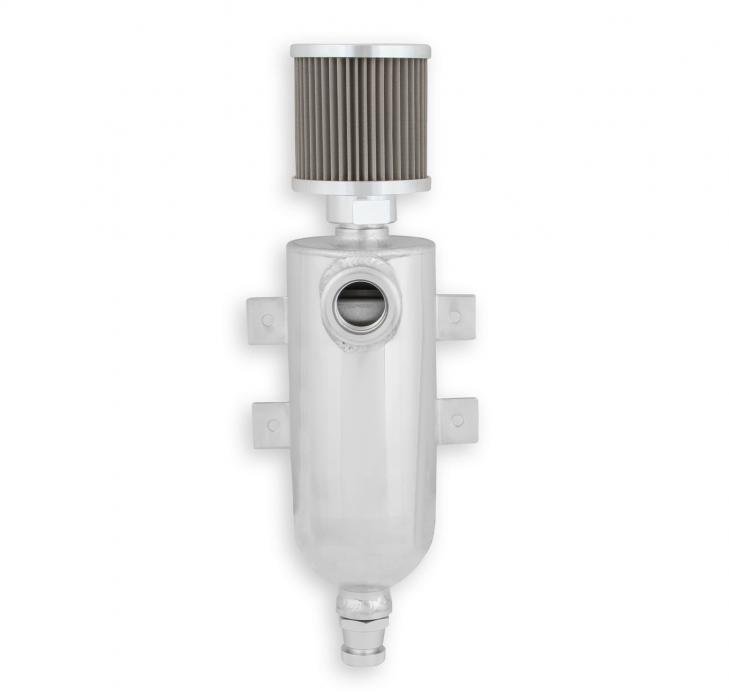

Earl's breather tanks are made from 6061 aluminum and have internal oil baffling. These tanks feature a -12 AN O-ring inlet port, knurled drain valve with an optional 1/8" NPT outlet port for use with a remote drain (or to drain back to the oil pan), w/ 4-bolt mounting brackets. Includes a heavy duty stainless steel mesh filter which has a billet aluminum housing to reduce weight. The filter may be removed to expose a -12AN Male. Ideal for use in all racing applications (i.e. engine PCV, dry sump tanks, transmissions, and rear-end venting). Choose from black anodized or polished aluminum finish.

Features:

6061 Aluminum Catch Tanks w/ Baffle Inside
Choose from Polished Aluminum or Black Anodized Finish
Dimensions: Overall Height 13.25” x Diameter 3.15” x Depth 3.20”

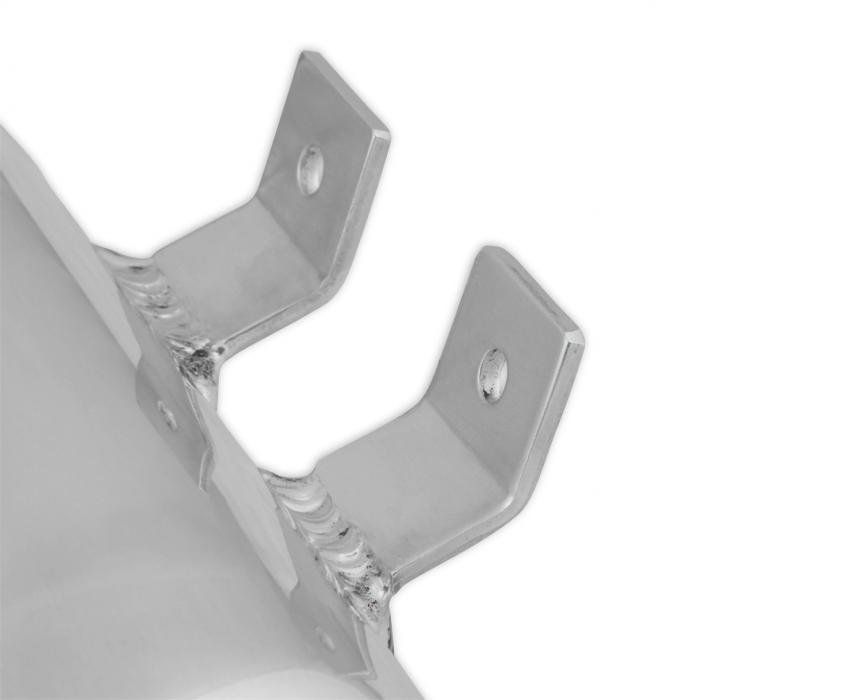

4-Bolt Mounting Brackets – Bolt Pattern 4.13” x 2.40”, Overall Bracket Width 5.07

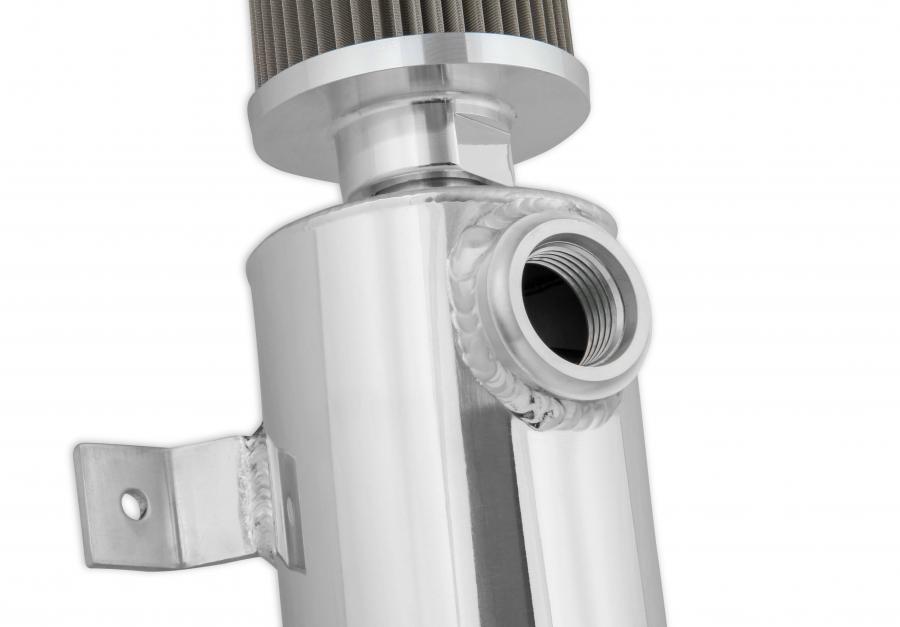

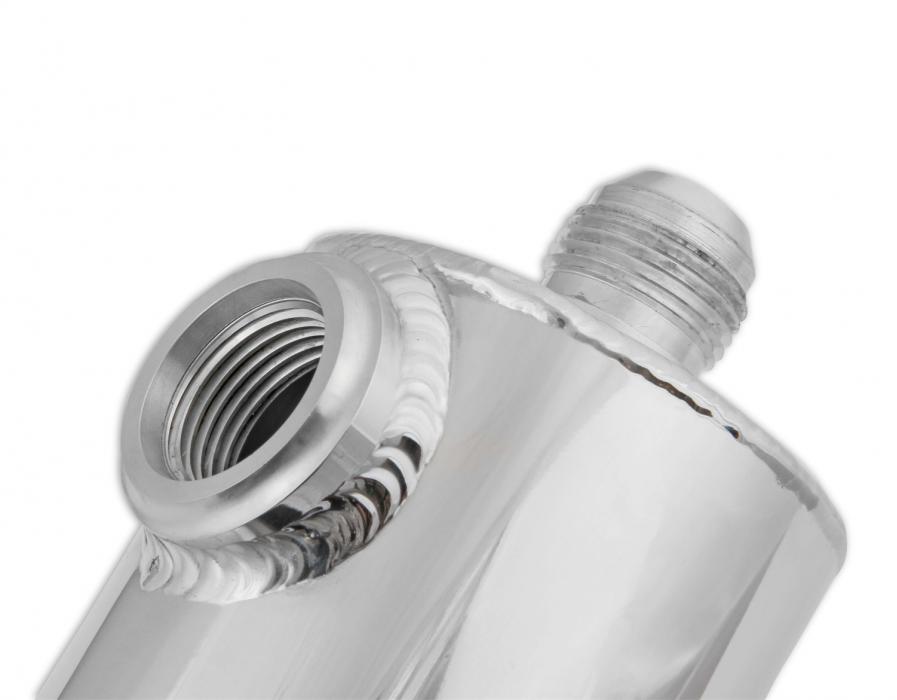

Inlet: -12 AN ORB Female

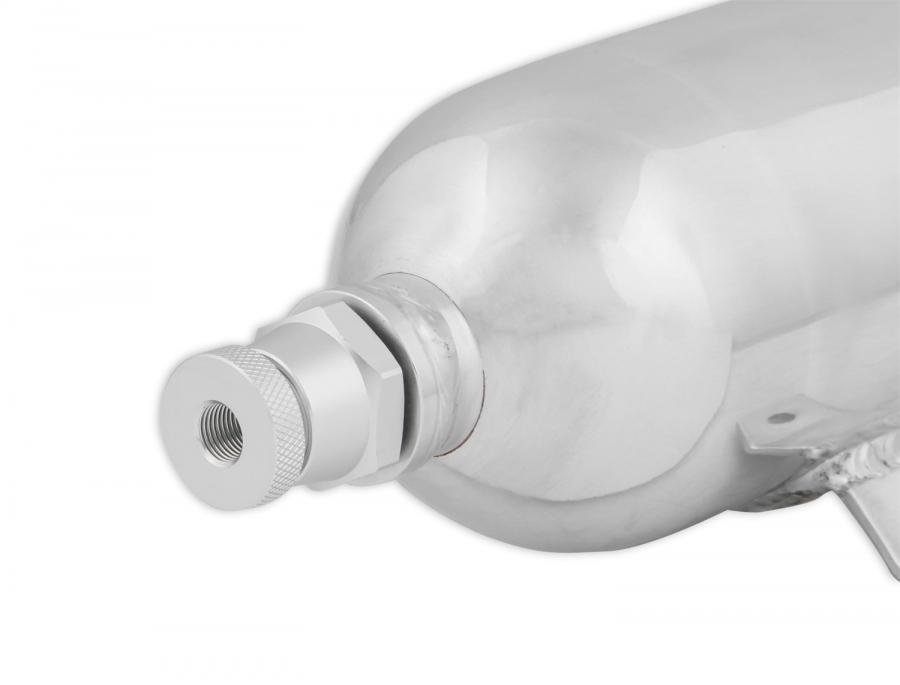

Drain w/ Knurled Screw & 1/8” NPT Outlet (for optional remote drain)

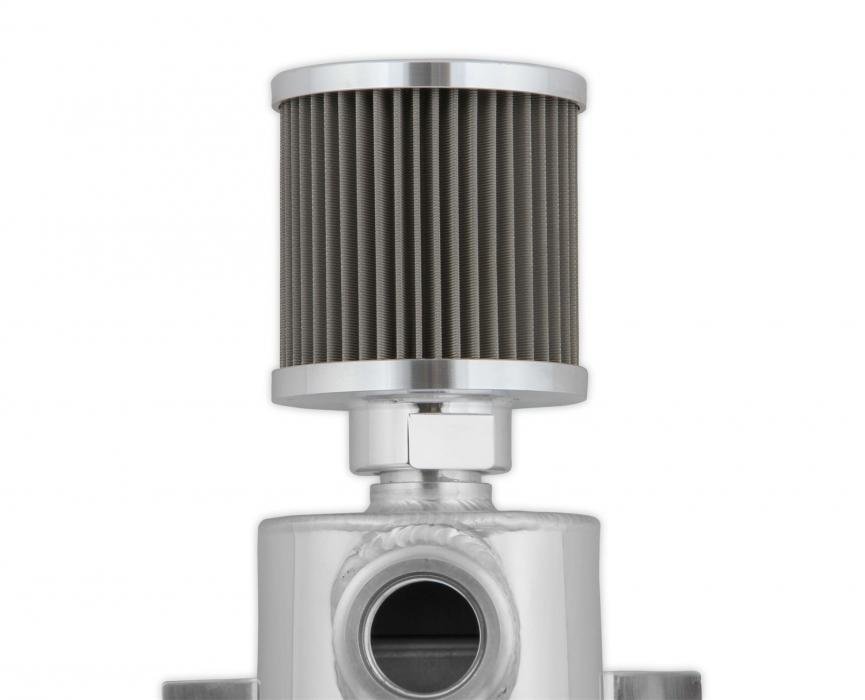

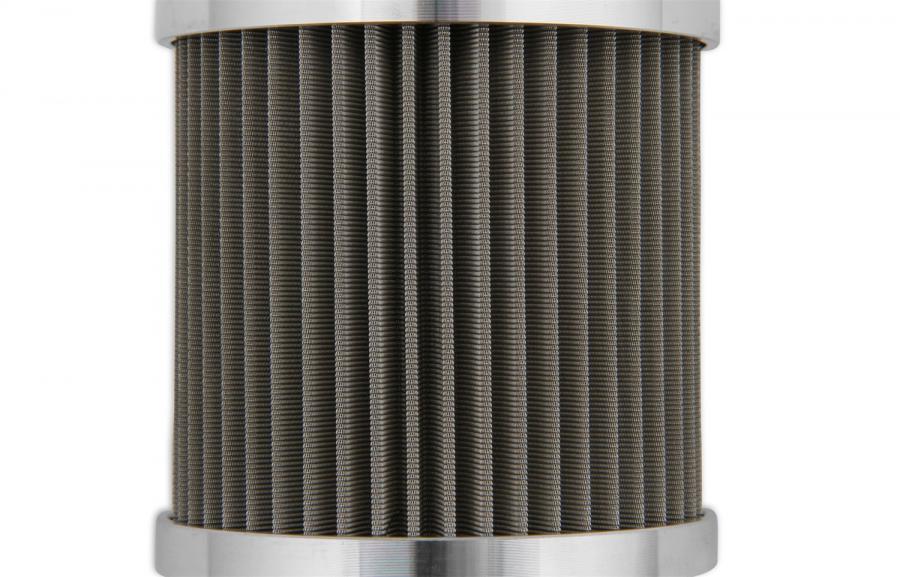

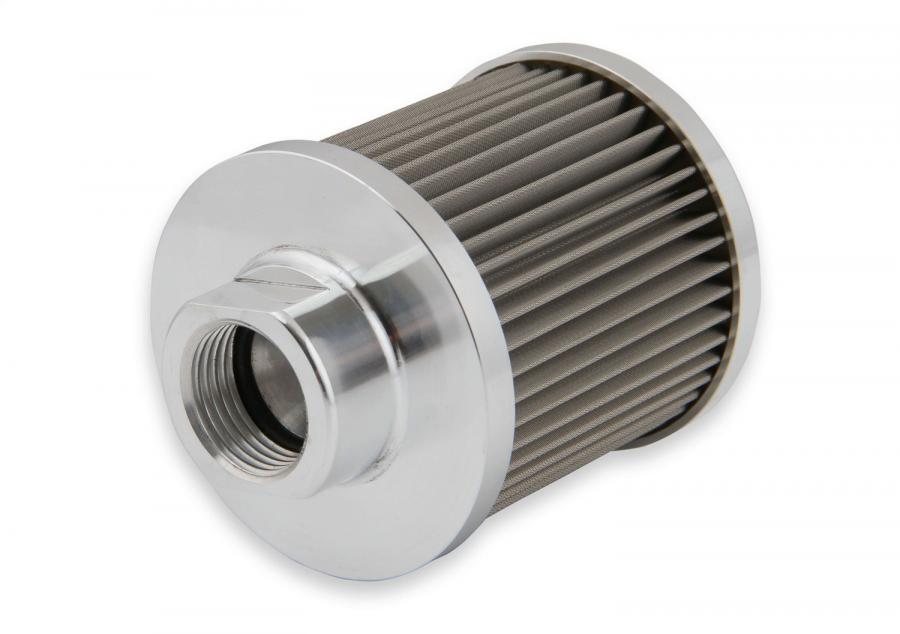

Billet Aluminum Housing with Stainless Steel Mesh Filter w/ -12 AN Female Inlet
Welded Construction
Capacity: 0.75L
Meets Requirements of Most Racing Sectioning Bodies – for Oil Catch Tank
Weight: 1.5 LB
Pressure Tested to 75psi

About Earl's Performance

Earl's Performance Products was founded by Earl Fouts in 1955 in Lawndale, California. The mission was to supply high-quality military aircraft surplus plumbing components directly to the racing industry from a small retail outlet. As the military surplus market dried up, Earl recognized the need for continuity of supply for the racing market and pioneered the Earl's range of hoses and fittings that are still used today. In doing so he created the racing aftermarket plumbing industry.

Specifications:

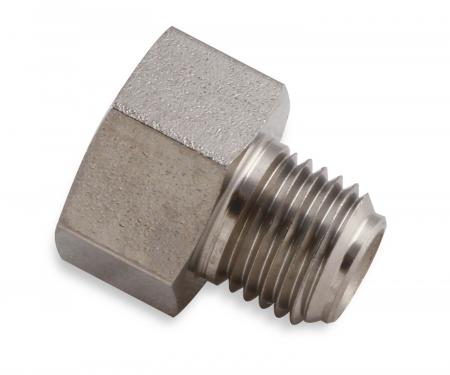

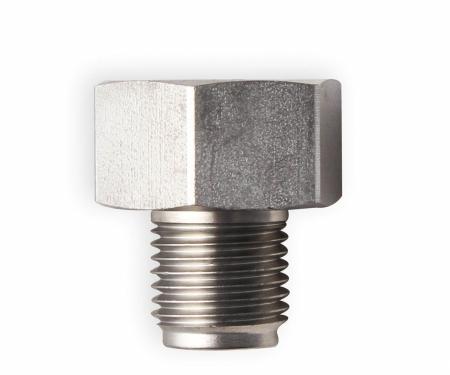

Adapter NPT Size ( B )	1/8 NPT MALE
Adapter Port Size (A)	1-1/16-12 (AN 12)
Application	Universal
Capacity	.75L
Depth	3.20"
Diameter	3.15"
Emission Code	4
Filter Type	Steel Mesh
Finish	Polished Aluminum
Material	6061 Aluminum
Overall Height	13.25"
Part Type	Fuel Catch Can
Product Type	Catch Tanks
Proposition 65	www.P65Warnings.ca.gov
Width	5.07"
