Earl's Performance Products was founded by Earl Fouts in 1955 in Lawndale, California. The mission was to supply high-quality military aircraft surplus plumbing components directly to the racing industry from a small retail outlet. As the military surplus market dried up, Earl recognized the need for continuity of supply for the racing market and pioneered the Earl's range of hoses and fittings that are still used today. In doing so he created the racing aftermarket plumbing industry.
| Download Name | File Size |
| earls_guide.pdf | 479.44KB |
| Carbon Lined | No |
| Compatible Hose Ends | Speed-Seal |
| Emission Code | 5 |
| Fluid Type | Pump Gas, Diesel, Automatic Transmission Fluid, Coolant, Oil, Race Gas, Bio-Fuels, E85, Methanol/Alcohol, Brake Fluid |
| Fluid Type Rating - Automatic Transmission Fluid | 5 out of 5 Rating |
| Fluid Type Rating - Bio-Fuels | 5 out of 5 Rating |
| Fluid Type Rating - Brake Fluid | 5 out of 5 Rating |
| Fluid Type Rating - Coolant | 5 out of 5 Rating |
| Fluid Type Rating - Diesel | 5 out of 5 Rating |
| Fluid Type Rating - E85 | 5 out of 5 Rating |
| Fluid Type Rating - Methanol/Alcohol | 5 out of 5 Rating |
| Fluid Type Rating - Oil | 5 out of 5 Rating |
| Fluid Type Rating - Power Steering Fluid | 5 out of 5 Rating |
| Fluid Type Rating - Pump Gas | 5 out of 5 Rating |
| Fluid Type Rating - Race Gas | 5 out of 5 Rating |
| Fluid Type Rating - Vacuum | 1 out of 5 Rating |
| Hose End Finish | Electroless Nickel Plated |
| Hose End Material | Steel |

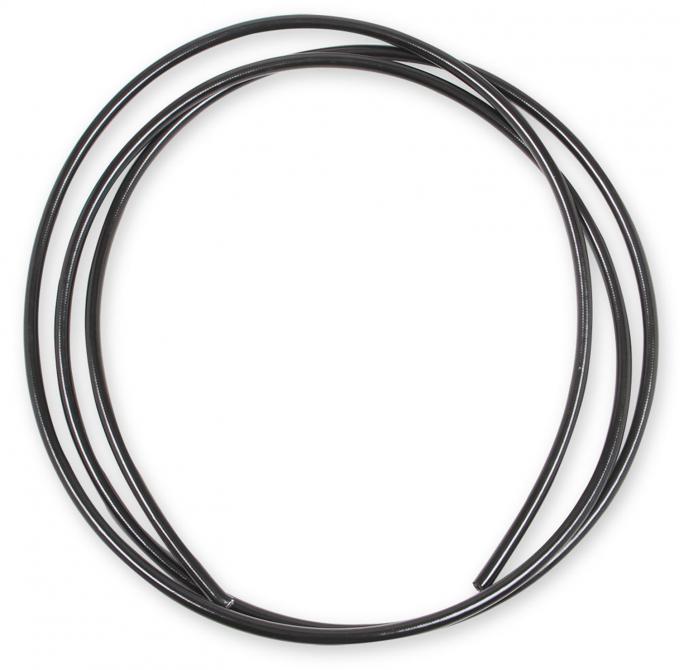

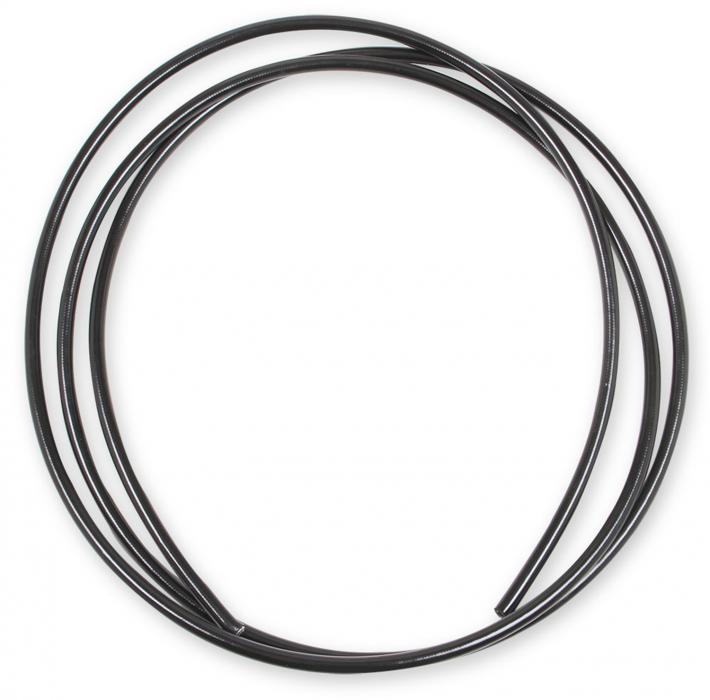

| Hose Family | Speed-Flex |
| Hose Length | 33 Feet |
| Hose Outer Material | PVC Black Coated Stainless |
| Hose Size | 3 AN |
| Inside Diameter | .120"-.143" |
| Max Pressure | 2000 psi |
| Max Working PSI | 2000 PSI |
| Min. Bend Radius | 1.5" |
| Outside Diameter | .284"-.300" |
| Part Type | Fuel Hose |
| Product Type | Hose |
| Proposition 65 | www.P65Warnings.ca.gov |
| PTFE Wall Thickness | .040" |
| Submersible in Fuel | No |
| Temperature Range | -65° to 450° F |
