Earl's UltraPro ball valves are ideal for all racing applications & provide full uninterrupted flow when opened. The lightweight modular design is easy to rebuild. The glass reinforced PTFE seals are compatible with gasoline, racing fuels, methanol, alcohol, E85, oil, water & coolant. The small body valves are available in -6 & -8 AN sizes, and the large body valves are available in -10 & -12 AN sizes (choose from male/male, or male/female styles). Attractive clear & black anodized finish w/ red handle. The handle features a 1/4" hole for cable operation & is curved outward from the body for easy operation w/ extra finger clearance (even w/ racing gloves). These racing ball valves are ideal for use in most fuel and oil systems (i.e. fuel shut-off valves, oil accumulators/accusump™ systems, and many other applications).
Features:
- Light Weight Aluminum Billet Construction – 6061-T6 Aluminum & Stainless Steel Components
- Hard Coated PTFE Aluminum Ball
- Design Provides Full Uninterrupted Flow When Opened
- Finish: Anodized in Clear & Black w/ Red Handle
- Glass Reinforced PTFE Seals – Compatible w/ Methanol, Alcohol, Race Gas, Pump Gas, E85, Bio-Fuels, Diesel, Oil, ATF, and Coolant

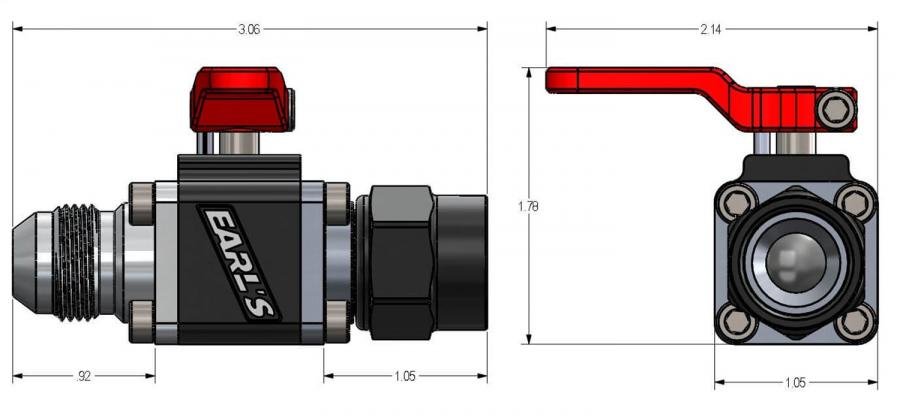

- Small Body in -6 & -8 AN Sizes – Overall Dimensions: 2.73” Long x 1.05” Wide x 1.78” Tall
- Large Body in -10 & -12 AN Sizes – Overall Dimensions: 3.25” Long x 1.45” Wide x 2.42” Tall
- Choose from Male/Male, or Male/Female Styles

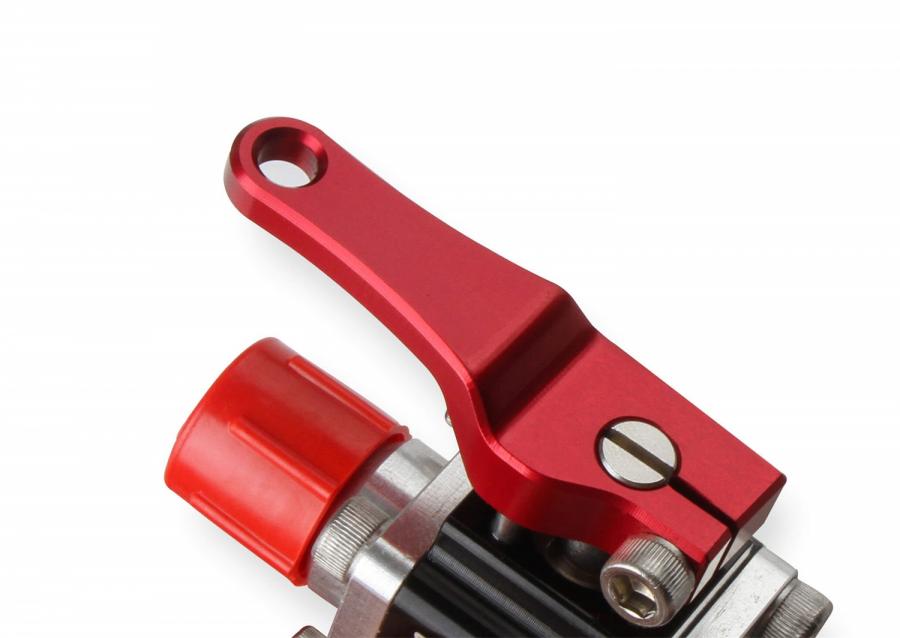

- Curved Handle Provides Extra Finger Clearance – Even w/ Racing Gloves
- Maximum Recommended Working Pressure: 200 PSI
- Clamshell Packaging – Ideal for Retail Display
- Ideal for All Racing Applications – Including Fuel & Oil Systems
The optional mounting brackets will not fit this valve.
Installation Notes:
The optional mounting brackets will not fit this valve.
