radio to relay, all 2nd design: courtesy lamp timer located to right of glove box CONNECTS TO: - Dash Harness Connection - Empty Cavity of Radio Connection on Dash Harness - Ground (to power antenna relay mounting bolt) - Power…
radio to relay, all CONNECTS TO: - Dash Harness Connection - Empty Cavity of Radio Connection on Dash Harness - Ground (to power antenna relay mounting bolt) - Power Antenna Relay …

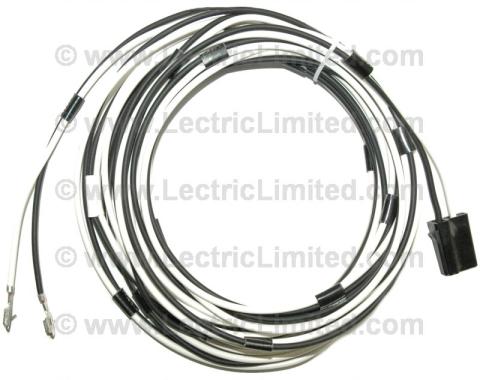

radio to relay, all CONNECTS TO: - Dash Harness Connection - Empty Cavity of Radio Connection (on dash harness) - Ground (to Rear floor riser support) - Power Antenna Relay …

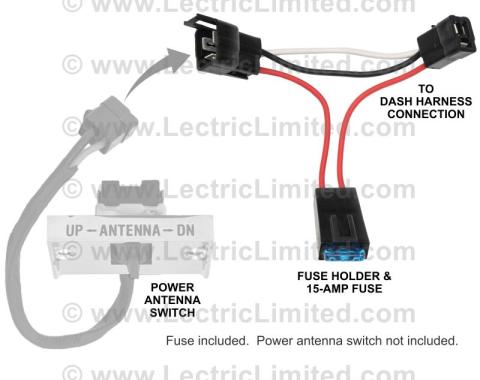

Dash Harness to power antenna switch connection, fused jumper harness allows you to add 15 amp fuse protection into this non-fused battery powered circuit. TECH NOTES:
Lectric Limited’s exclusive Power Antenna Fused Jumper Harness…

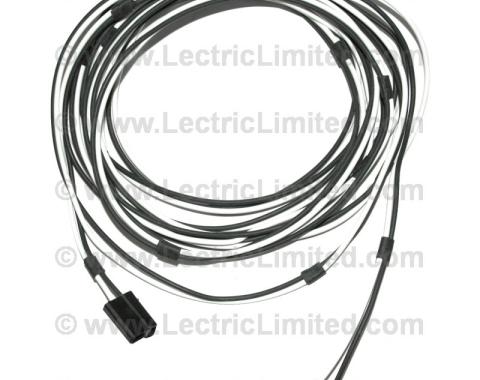

radio to relay, all 1st design: courtesy lamp timer located to left of steering column CONNECTS TO: - Empty Cavity of Radio Connection on Dash Harness - Fuse Block ("BAT" cavity) - Ground (to power antenna relay mounting bolt)…
