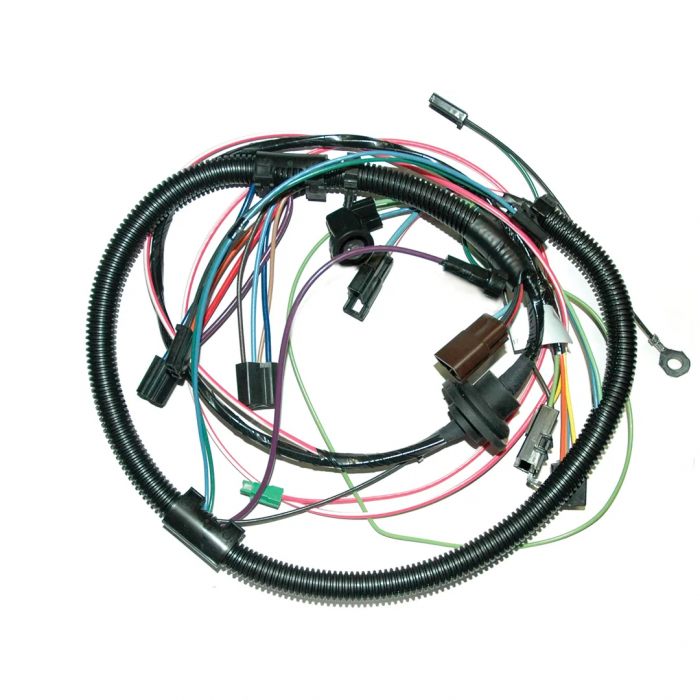

all with auxiliary radiator cooling fan (includes heater wiring and Air Conditioning Compressor Ground Wire)
CONNECTS TO:
- A/C Relay
- Auxiliary Radiator Cooling Fan Harness Connection
- Blower Motor Ground Terminal
- Blower Motor Power Terminal
- Blower Motor Resistor
- Carburetor Idle Stop Solenoid
- Compressor Clutch Switch
- Compressor Cutout Pressure Switch
- Compressor Ground
- Dash Harness Connection
- Fuse Block (unmarked cavity below "Elec Fan" 30 amp fuse)
- Heater & A/C Controls
- Starter Motor Extension Harness
- Thermostat "Ranco" Switch (located on evaporator housing)
Vehicle Fitment:
The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make |
Model |
Years |
Chevrolet |
Corvette |
1979 |
