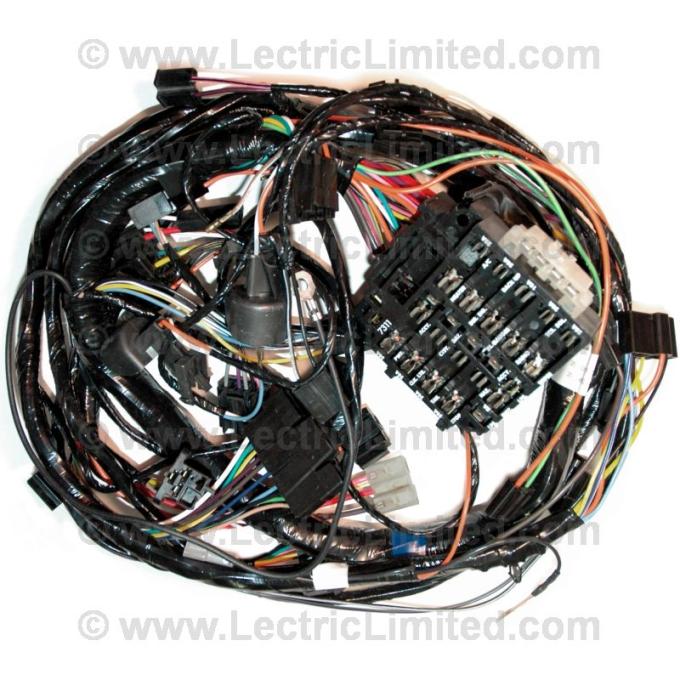

all 1st design: courtesy lamp timer located to the left of steering column
CONNECTS TO:
- Air Conditioning Harness Connection (with A/C)
- Alarm System Flasher
- Alarm System Harness Connection
- Alarm System Relay
- Brake Light Switch
- Bulkhead Connector (passes through firewall)
- Center Gauge Cluster
- Cigarette Lighter
- Cigarette Lighter Ground
- Courtesy Light (driver & passenger side)
- Courtesy Light Switch (driver & passenger side)
- Courtesy Light Timer Harness Connection
- Fuse Block
- Gauge Cluster
- Glove Box Light Switch
- Ground (to hinge pillar inner reinforcement)
- Headlight Dimmer Switch
- Headlight Switch
- Heater & A/C Control Panel Light Harness Connection
- Heater Harness Connection (without A/C)
- Ignition Switch
- Intermittent Windshield Wiper Harness Connection (cars w/intermittent windshield wiper)
- Neutral Safety/Backup Light Switch Connection (automatic transmission)
- Neutral Safety/Backup Light Extension Harness Connection (manual transmission)
- Parking Brake Warning Light Switch
- Radio
- Rear Body Harness Connection
- Rear Window Defroster Harness Connection
- Seat Belt & Key Warning Buzzer
- Seat Belt Buckle Connection (driver side)
- Shift Plate Indicator Light (automatic transmission)
- Turn Signal Flasher
- Turn Signal Switch Connection
- Windshield Wiper & Washer Switch (cars w/o intermittent windshield wiper)
Vehicle Fitment:
The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
| Make |
Model |
Years |
| Chevrolet |
Corvette |
1978 |
IMPORTANT: Electrical items are covered by a 30 day EXCHANGE ONLY WARRANTY. There are no returns or refunds on such items.
