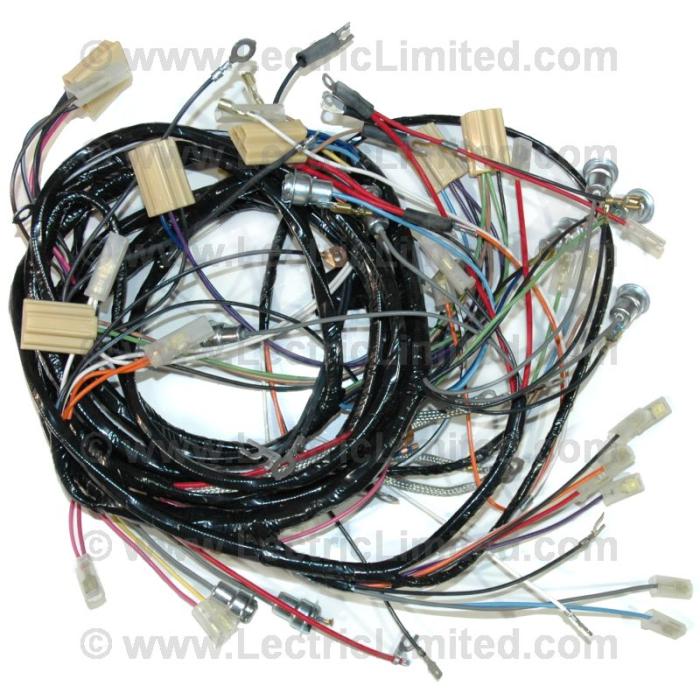

all V8 (includes Cigarette Lighter Ground Wire) Note: Requires use of VHX5557 to complete wiring to headlights
CONNECTS TO:
- Ammeter Gauge (driver side terminal)
- Brake Light Switch
- Cigarette Lighter
- Cigarette Lighter Light Connection
- Clock Light
- Clock Power Feed
- Courtesy Light Extension Connection (passenger side)
- Courtesy Light Extension Harness (driver side)
- Courtesy Light Switch (driver side)
- Courtesy Light Switch Connection (passenger side)
- Front Parking Light Connection (driver & passenger side)
- Fuel Gauge (driver & passenger side terminal)
- Fuse Panel
- Generator
- Ground (to bottom of headlight switch)
- Ground (to hood release bracket mounting bolt)
- Ground (to oil gauge mounting bolt)
- Ground (to driver side valve cover bolt)
- Headlight Dimmer Switch
- Headlight Extension Harness Connection (driver & passenger side)
- Headlight Switch
- Hi-Beam Indicator Light
- Horn (driver & passenger side)
- Horn Switch Connection
- Ignition Switch ("ACC" terminal)
- Ignition Switch ("IGN" bridged terminal)
- Ignition Switch Light
- Instrument Lights
- Rear Body Harness Connection
- Turn Signal Flasher
- Turn Signal Indicator Light (left & right side)
- Turn Signal Switch Connection
- Voltage Regulator
Vehicle Fitment:
The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
| Make |
Model |
Years |
| Chevrolet |
Corvette |
1955 |
IMPORTANT: Electrical items are covered by a 30 day EXCHANGE ONLY WARRANTY. There are no returns or refunds on such items.
