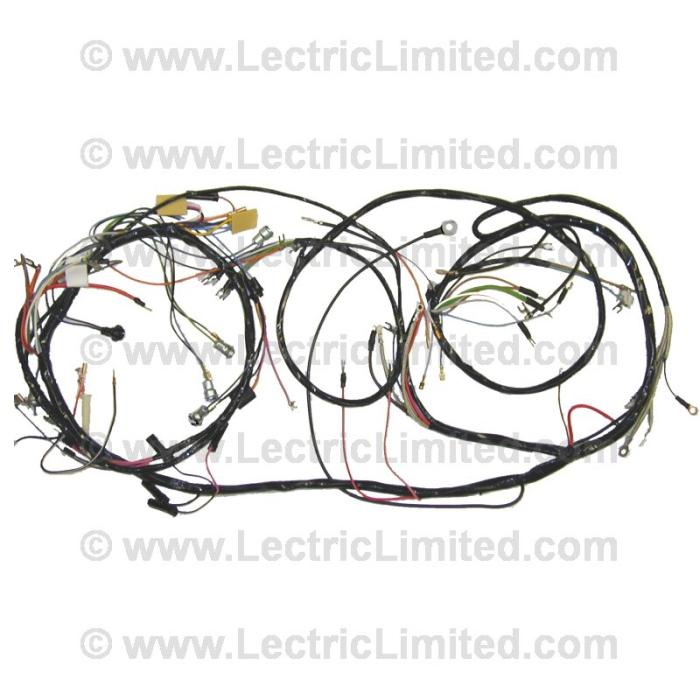

all Note: Requires use of VHX5354 to complete wiring to headlights
CONNECTS TO:
- Ammeter Gauge Terminal (driver side)
- Brake Light Switch
- Clock Light
- Clock Power Terminal
- Courtesy Light Connection (driver & passenger side)
- Courtesy Light Switch Connection (driver & passenger side)
- Fuel Gauge Terminal (driver & passenger side)
- Fuse Panel
- Generator
- Ground (to bell housing bolt)
- Ground (to hood release bracket mounting bolt)
- Headlight Dimmer Switch
- Headlight Switch
- Hi-Beam Indicator Light
- Horn (driver & passenger side)
- Horn Relay
- Horn Switch Connection
- Ignition Switch ("ACC" terminal)
- Ignition Switch Light
- Instrument Lights
- Junction Block Connection (driver & passenger side, on fender skirt)
- Rear Body Harness Connection
- Turn Signal Flasher
- Turn Signal Indicator Light (left & right side)
- Turn Signal Switch Connection
- Voltage Regulator (coaxial condenser, ground armature, field terminal, "Batt" coaxial condenser)
Vehicle Fitment:
The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
| Make |
Model |
Years |
| Chevrolet |
Corvette |
1953 - 1955 |
IMPORTANT: Electrical items are covered by a 30 day EXCHANGE ONLY WARRANTY. There are no returns or refunds on such items.
