driver side door, all (includes power window wiring) CONNECTS TO: - Dash Harness Connection - Power Door Lock Actuator Connection - Power Door Lock Switch …
under dash, all 1st design: courtesy lamp timer located to left of steering column CONNECTS TO: - Fuse Block "BAT" Cavity - Power Door Lock Harness Connection (driver & passenger side) …

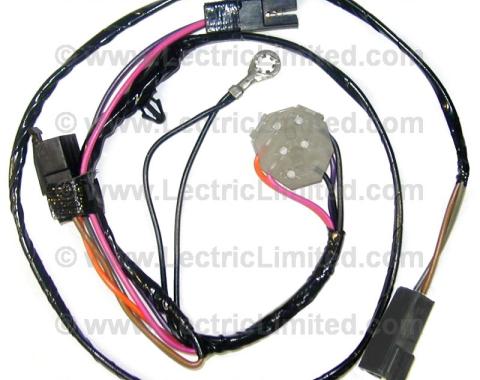

passenger side door, all (includes power window wiring) CONNECTS TO: - Dash Harness Connections - Ground (to door brace) - Power Door Lock Actuator Connection - Power Door Lock Switch - Power Window Motor …

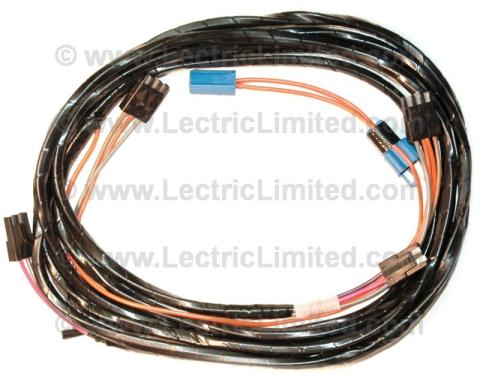

driver side door, all (includes power window wiring) CONNECTS TO: - Dash Harness Connections - Power Door Lock Actuator Connection - Power Door Lock Switch - Power Window Motor …

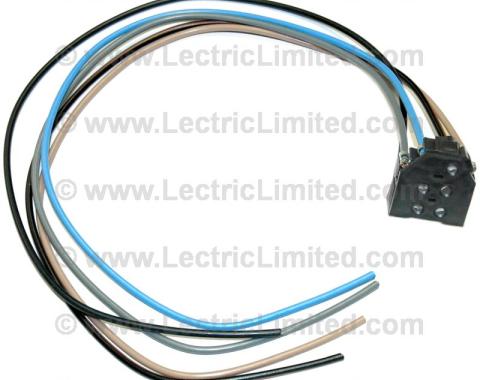

passenger side door, all (includes power window wiring) CONNECTS TO: - Dash Harness Connections - Ground (to inner door panel) - Power Door Lock Actuator Connection - Power Door Lock Switch - Power Window Motor (passenger side) …

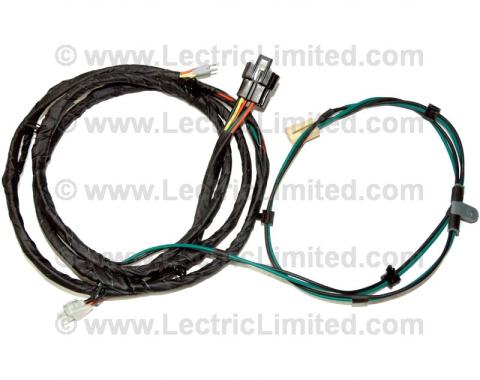

passenger side door, all CONNECTS TO: - Ground to Inner Door Panel - Power Door Lock Actuator Connection - Power Door Lock Switch - Power Door Lock Under Dash Harness Connection …

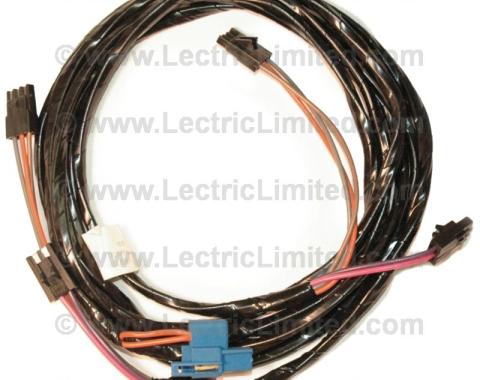

under dash, all 2nd design: courtesy lamp timer located to right of glove box CONNECTS TO: - Dash Harness Connection - Power Door Lock Harness Connection (driver & passenger side) …
