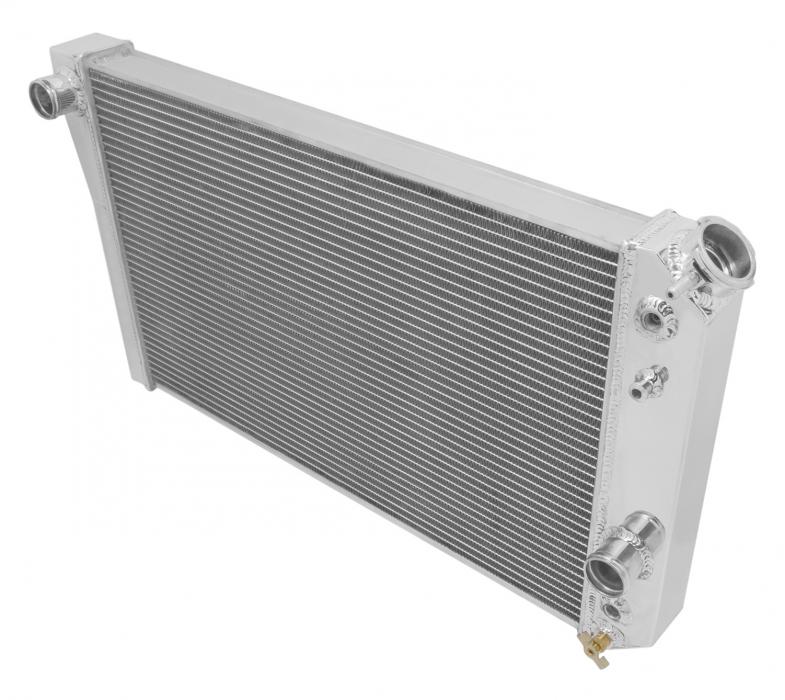

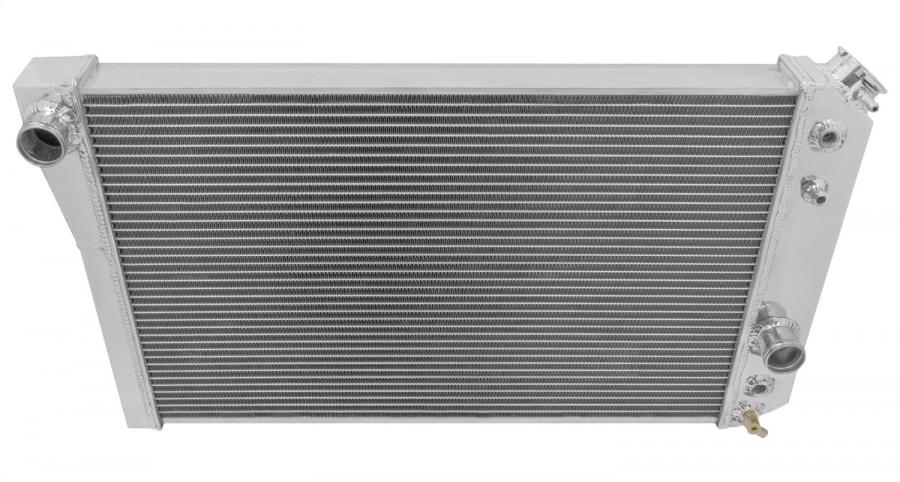

High-Horsepower street cars and trucks can be a challenge to keep cool. A proper cooling system starts with the right radiator. Aluminum Radiators cool more effectively and weigh less than older OEM style brass units.?
Download Name | File Size |
199r10955.pdf | 173.95KB |
199r11914.pdf | 286.5KB |
Make | Model | Submodel | Years | Engine |
Chevrolet | Corvette | 35th Anniversary Edition | 1988 | 5.7L / 350 / V8 |
Chevrolet | Corvette | Base | 1984 | 5.7L / 350 / V8 |
Chevrolet | Corvette | Base | 1985 | 5.7L / 350 / V8 |
Chevrolet | Corvette | Base | 1986 | 5.7L / 350 / V8 |
Chevrolet | Corvette | Base | 1987 | 5.7L / 350 / V8 |
Chevrolet | Corvette | Base | 1988 | 5.7L / 350 / V8 |
Chevrolet | Corvette | Base | 1989 | 5.7L / 350 / V8 |
Chevrolet | Corvette | Base | 1990 | 5.7L / 350 / V8 |
Chevrolet | Corvette | Indianapolis 500 Pace Car | 1986 | 5.7L / 350 / V8 |
Chevrolet | Corvette | ZR-1 | 1990 | 5.7L / 350 / V8 |
# of Passes | Single |
Cooling Row Diameter | 3/4" |
Core Dimension | 14-1/2 x 23-5/8" |
Core Thickness | 1.57" |
Emission Code | 5 |
Flow Style | Cross Flow |
Hose Location Inlet | Driver |
Hose Location Outlet | Passenger |
Inlet Diameter | 1-1/4 in. |
Inlet Location | Driver |
Inlet Size | 1-1/4 in. |
Mounting Type | Saddle Mount |
Outlet Diameter | 1-3/8 in. |
Outlet Location | Passenger |
Outlet Size | 1-3/8 in. |
Overall Dimension | 16-3/8" x 29-1/8" |
Part Type | Radiator |
Product Type | Radiator |
Row Quantity | 2 |
Rows | 2, 2 |
Transcooler Provision | 1/2-20 Straight Thread G 1/4 |
Transmission Oil Cooler Included | 1/2-20 Straight Thread G 1/4 |
