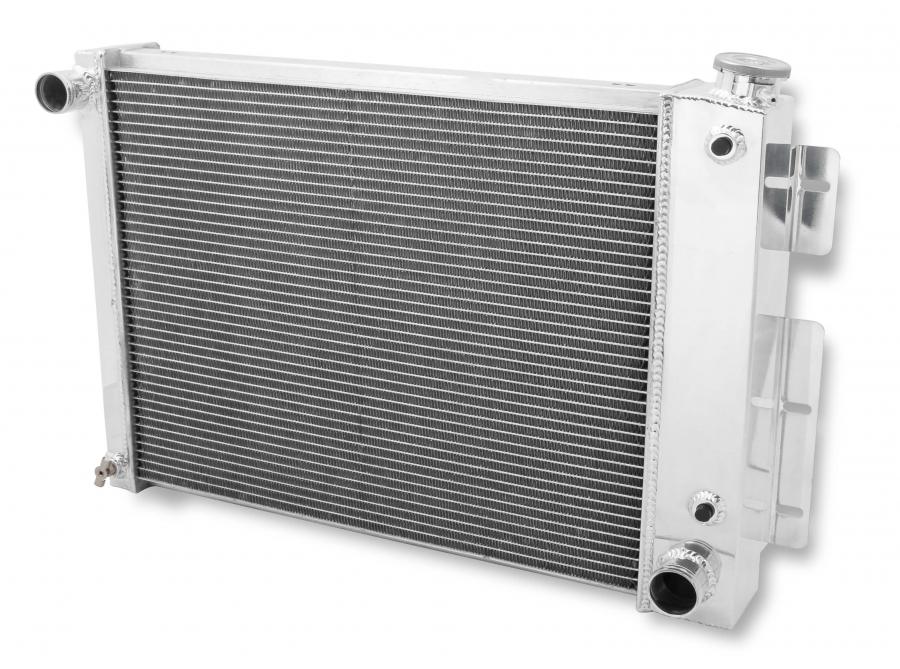

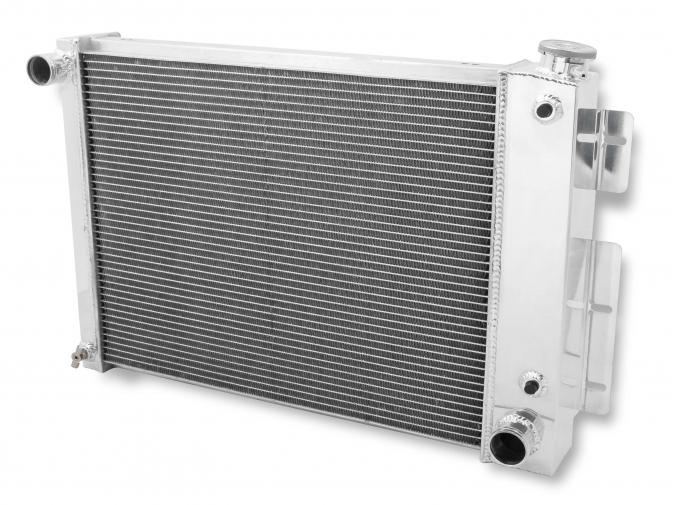

High-Horsepower street cars and trucks can be a challenge to keep cool. A proper cooling system starts with the right radiator. Aluminum Radiators cool more effectively and weigh less than older OEM style brass units.?
| Download Name | File Size |
| 199r10955.pdf | 173.95KB |
| 199r11914.pdf | 286.5KB |
| Make | Model | Years | Engine | Fitment Notes |
| Chevrolet | Camaro | 1967 | 6.5L / 396 / V8 5.7L / 350 / V8 4.9L / 302 / V8 5.3L / 327 / V8 |
Big Block Chevy Swap |
| Chevrolet | Camaro | 1968 | 6.5L / 396 / V8 5.7L / 350 / V8 5.4L / 327 / V8 4.9L / 302 / V8 5.3L / 327 / V8 |
Big Block Chevy Swap |
| Chevrolet | Camaro | 1969 | 6.5L / 396 / V8 5.7L / 350 / V8 4.9L / 302 / V8 5.3L / 327 / V8 |
|
| Pontiac | Firebird | 1967 | 6.6L / 400 / V8 5.3L / 326 / V8 |
|
| Pontiac | Firebird | 1968 | 5.7L / 350 / V8 6.6L / 400 / V8 |
|
| Pontiac | Firebird | 1969 | 5.7L / 350 / V8 6.6L / 400 / V8 |
| # of Passes | Single |
| Cooling Row Diameter | 3/4" |
| Core Dimension | 17 x 20-3/4 |
| Core Thickness | 2.20" |
| Emission Code | 5 |
| Flow Style | Cross Flow |
| Hose Location Inlet | Driver |
| Hose Location Outlet | Passenger |
| Inlet Diameter | 1-1/2 in. |
| Inlet Location | Driver |
| Inlet Size | 1-1/2 in. |
| Mounting Type | Flanges |
| Outlet Diameter | 1-3/4 in. |
| Outlet Location | Passenger |
| Outlet Size | 1-3/4 in. |
| Overall Dimension | 18-1/2 x 26 |
| Part Type | Radiator |
| Product Type | Radiator |
| Row Quantity | 3 |
| Rows | 3, 3 |
| Transcooler Provision | 1/2-20 Straight Thread G 1/4 |
| Transmission Oil Cooler Included | 1/2-20 Straight Thread G 1/4 |
