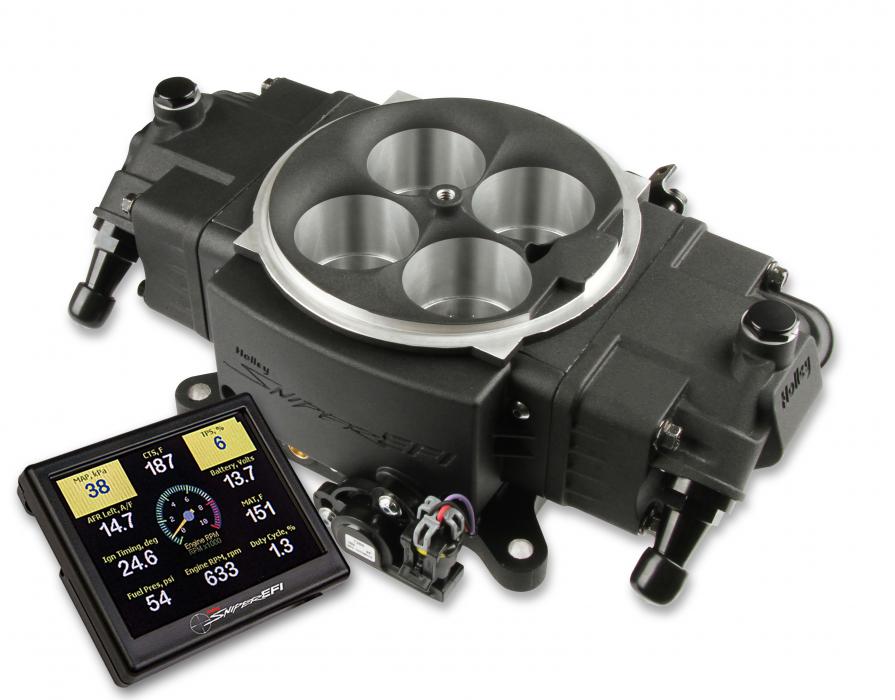

The Super Sniper Stealth 4150 EFI system from Holley features 8, 100LB/HR Fuel Injectors capable of supporting up to 650 HP naturally aspirated or 1250 HP on forced induction applications. The Sniper Stealth 4150 ECU is capable of fuel map self-learning and ignition timing control, improving idle stability, drivability, and wide-open throttle horsepower! Did we mention that the Stealth 4150 also includes transmission kick down provisions for GM TH350/400, 200R4/700R4 and Ford C4/C6 applications.
Features:
- Supports up to 1250hp with Eight 100 Lb/Hr Injectors!
- Available in 3 finishes: Shiny, Black and coming soon, Gold
- One Sensor Ground – Ground supply for 0-5v Sensors
- Self-tuning ECU means you don’t have to be a computer/tuning wiz to have EFI!
- Throttle body mounted ECU – no extra boxes to mount
- All of the wiring exits below the rear fuel injector cover, for a completely stealth installation.
- Programmable inputs and outputs
- Bolt on 4150 Flange Carburetor Replacement
- Six Programmable Ground Outputs
- Timed spark part for vacuum advanced distributors located under the front fuel bowl, for easy access to the distributor.
- Only 4 Wiring Connections Required! (Battery +, Battery - , Switched Ignition & RPM)
- External fuel pressure regulator required, set to a base pressure of 58.5 PSI, such as 12-886.
- The included Genuine Bosch LSU 4.9 Wideband Oxygen Sensor provides real-time Fuel Map Learn!
- Integrated ignition timing control
- One +5v Reference Output - +5V Power Supply for 0-5v Sensors
- Air entry is machined to fit most stock style air cleaners with air cleaner locator provisions.
- High Resolution Full Color Touchscreen for Initial Setup, Tuning, and Gauge Displays
- OEM Style TPS/IAC, for years of dependable service.
- Included clamp-on oxygen sensor kit for 2.25" exhaust ensures a leak free oxygen sensor installation, with Stainless Steel T-Bolt clamps and a Stainless Steel (Weldable) oxygen sensor flange
- Three Programmable 0-5V Sensor Inputs for Oil/Fuel/Dome or Nitrous Pressure Sensors
- Simple Calibration Wizard (answer a few questions about your engine and it creates the base map, then starts tuning on its own!) - NO laptop required!
Part # 534-247 is required to complete installation.
Installation Notes:
Part # 534-247 is required to complete installation.
About Sniper Motorsports
The Sniper line of products are bringing high-quality products into everyone's price range! Sniper is a one stop shop for a complete fuel system overhaul, including fabricated intake manifolds, high-performance plumbing parts, fuel pumps & regulators, and a self-tuning TBI-style fuel injection system that starts at $999! With Sniper, you can count on high-quality performance without the high-quality price!
