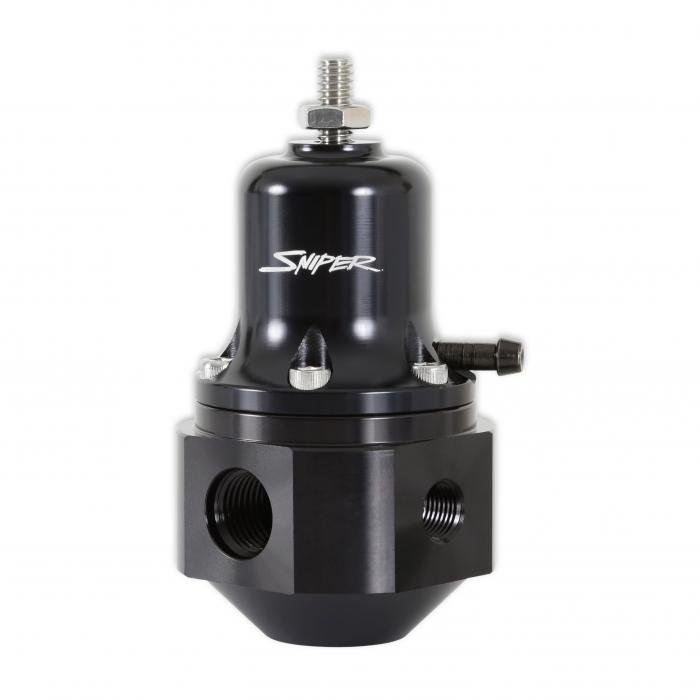

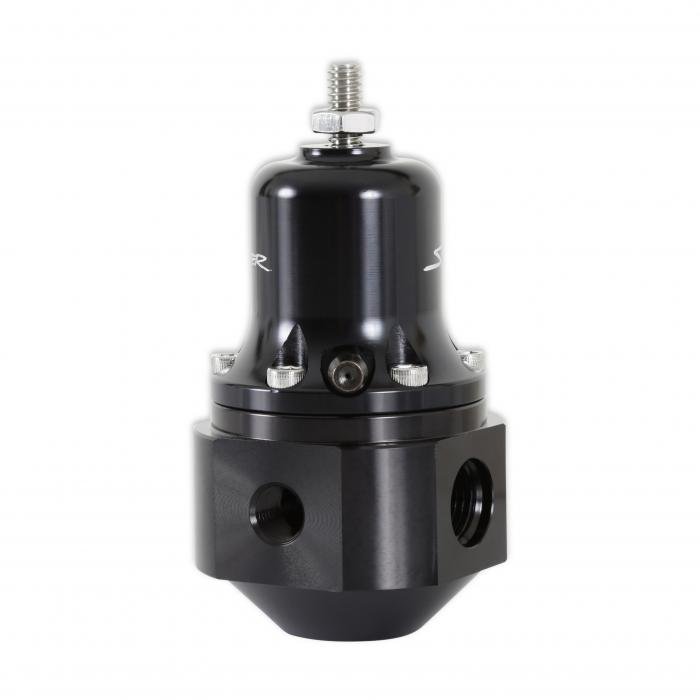

Sniper EFI universal bypass fuel pressure regulators are for use with fuel systems in street or track applications. They feature adjustable base pressure from 40-130 psi, a gauge port, and a boost reference port as well. These regulators are ideal for vehicles/systems where superior flow and pressure control are needed. These regulators are precision machined from 6061-T6 billet aluminum for strength and durability. They feature a black bright dip anodized body and a clear bright dip anodized top for corrosion resistance and good looks.
Features:
- Constructed of billet aluminum with a black anodized base and top for good looks
- Used in systems with a return line back to tank
- 1/8-inch NPT Fuel Gauge Port
- Offered in -6 and -8 ORB configurations

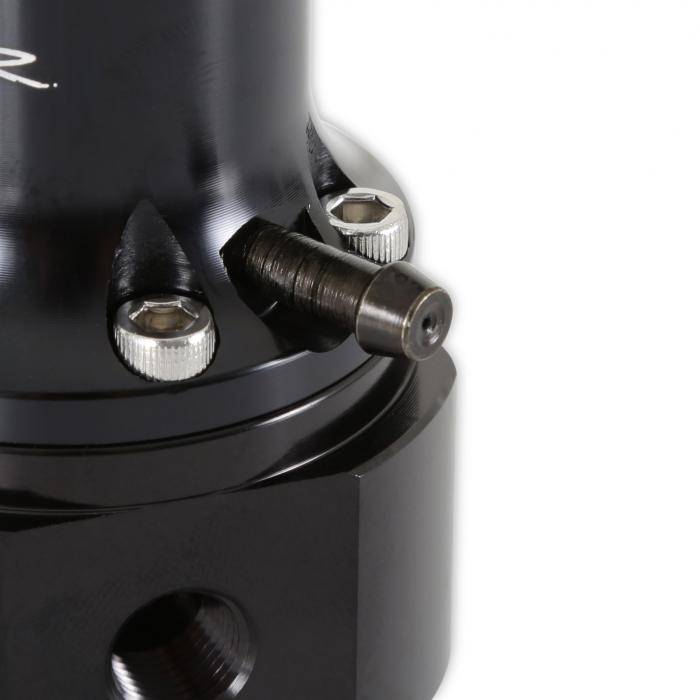

- 1/8-inch NPT Boost Reference Port (Ratio 1:1)
- Longer spring for wider range of adjustment (40-130 psi)
- Features an oversized bypass orifice and corrugated diaphragm for superior flow
- Includes mounting bracket, hardware, and an 1/8-inch NPT barb fitting for manifold reference
- Alcohol fuel and race gas compatible
