SELECT6-Gauge 2D Analog Universal Panel - AP20002

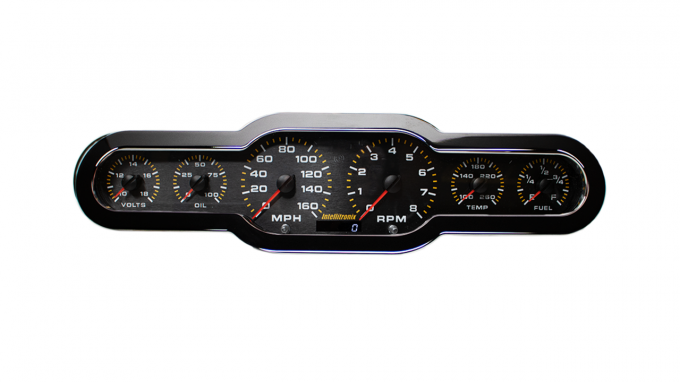

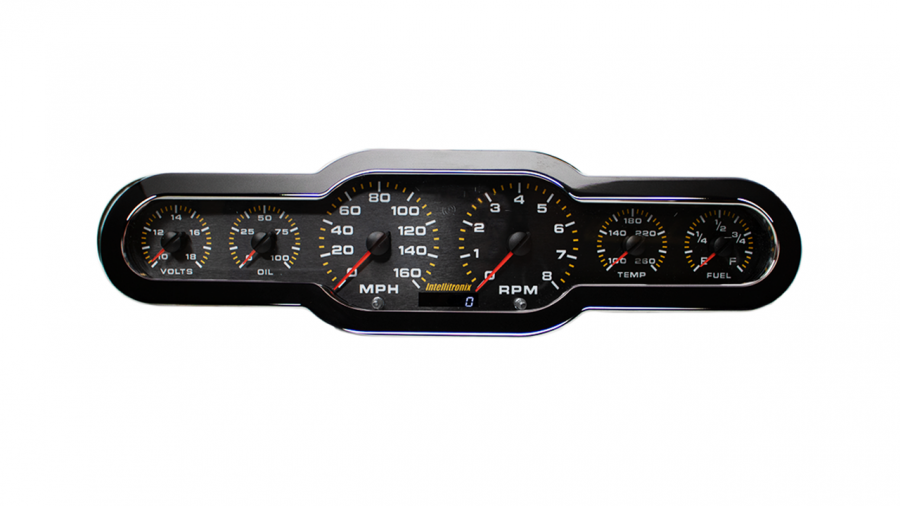

The clean, sleek, classic design of the 6-Gauge 2D Analog Universal Panel comes with Intellitronix signature black polycarbonate subsurface with brush stroke finish makes it an unforgettable show stopping dash. The 6-Gauge 2D Analog Universal Panel comes equipped with speedometer, tachometer for 8-, 6-, 4-cylinder engines, fuel level, voltmeter, oil pressure, and water temperature gauges, as well as a digital clock, turn signal indicators, and high beam indicator with chromed bezel.
Dimensions are 17" length x 4 3/4" height x 2 3/4" width.
Works with any mechanical or electronic transmissions or you can purchase separately a GPS speedometer sender from Intellitronix.
Automatic nighttime dimming.
Speedometer reads up to 160 MPH includes one button calibration, regardless of tire size, gear ratio, or transmission, odometer, trip meter, high speed recall, 0-60 time, and ¼ mile elapsed time, all with the push of a button!
Tachometer reads from 0 to 8000 in 100 RPM increments
Water Temperature reads from 100-260 degrees Fahrenheit
Fuel Level is user programmable to work with Ford, GM, Chrysler, VDO, and aftermarket 240-33 ohm industry standard fuel senders, reads from 0-99
Voltmeter with high and low voltage reads from 10.0- 18.0 volt range
Oil Pressure Gauge reads from 0-100 psi
Speedometer sender is included. If you need a Ford sending unit, then please add a note at checkout and we will send one--otherwise, you will get the GM/Mopar/VW one and will have to order the Ford one separately.
Water temperature sending unit. Please add a note at checkout if you need a 3/8" bushing because we send the more common 1/2" bushing--otherwise, you will have to supply the bushing on your own.
Oil pressure sending unit
Easy Install, Lifetime Warranty, Great Price, & Gauges that bring your vehicle to the next level.
AVAILABLE COLORS: White, Red, Blue and Green
ACCESSORIES: All required sending and sensor units are included.
Intellitronix Corp is an industry leader, manufacturing LED lighting and microprocessor-controlled LED products, which are first-class, energy-saving devices for the automotive electronic, marine, and recreational vehicle markets. Intellitronix has a wide range of best-selling automotive electronics, accessories, and digital gauges sold and distributed internationally. Intellitronix’s products are manufactured in a state-of-the-art facility in Eastlake, Ohio using top-quality materials and specialized equipment.
LEDs have become the powerhouse of the lighting world surpassing traditional light bulbs, television and computer screen illumination, being seen in trendsetting applications like headlights and taillights in cars, trucks, and daytime running and off-road lighting. Not only does Intellitronix understands the power and importance of utilizing LEDs but has the genius and expertise to put this knowledge into practice.
In addition, Intellitronix products have dominated areas of the marine industry with the creation of a unique, more efficient GPS controlled marine speedometer, and its Prometheus Ignition System to guard against ignition failures. The RV market is benefiting from Intellitronix new 4-IN-1 Energy Management Multifunctional System (EMMS) for recreational vehicles. The 4-in-1 unit incorporates energy management and load shedding, a breaker panel, automatic transfer switch, automatic generator starter plus display unit, Bluetooth, WiFi and multiplexing capabilities.
| Speedometer & Temperature | MPH & Fahrenheit, KMH & Celsius |
| Warranty | LIFETIME FACTORY WARRANTY |
