Nova - Dakota Digital Dash Cluster, HDX, 1966-1967

Nova - Dakota Digital Dash Cluster, HDX, 1966-1967
Nova - Dakota Digital Dash Cluster, HDX, 1966-1967Nova - Dakota Digital Dash Cluster, HDX, 1966-1967Nova - Dakota Digital Dash Cluster, HDX, 1966-1967Nova - Dakota Digital Dash Cluster, HDX, 1966-1967Nova - Dakota Digital Dash Cluster, HDX, 1966-1967
from $3,110.99 kt

Available Options

*
Model: 3243436
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
SELECT
OPTIONS

  • Available In Black Or Silver Alloy Gauge-Face Style
  • Select 12 Pre-Set Illumination Colors For Gauge Readings And Needles, And The Message Centers Or Customize Each Zone Yourself!
  • Speedometer : 0 -160 MPH
  • Split Scale Provides Resolution Of A 120MPH Speedometer, With A Top End Range Of 160MPH.
  • Tachometer: 0- 8,000 RPM
  • Oil Pressure: 0- 80 psi
  • Water Temperature: 100- 260ºF (optional metric version 40- 120ºC)
  • Fuel Level: E, 1/4, 1/2, 3/4, F
  • Voltmeter: 9- 17 VDC
  • Clock: 12 Hr Analog Clock Movement
  • Odometer (One Time User Settable, Million Mile)
  • Dual (A/B) Trip Meter (0- 9,999.9)
  • Clock (12 hour)
  • Estimated Range/ Miles to Empty
  • Performance Meters Include:
  • 0- 60 MPH Timer (0- 100 kmh)
  • 1/4 and 1/8 mile time
  • 1/4 and 1/8 mile end speed (trap speed)
  • High speed recall
  • High RPM recall
  • Additional Features:
  • Turn Signals (Left/ Right)
  • High Beam
  • Check Engine
  • Parking Brake
  • Two Auxiliary Input Indicators With User-Programmable Labels
  • Each Analog Gauge Sweep Contains A Red Led Indicator For Quick Notice Of A Warning Condition (Except Speedometer)

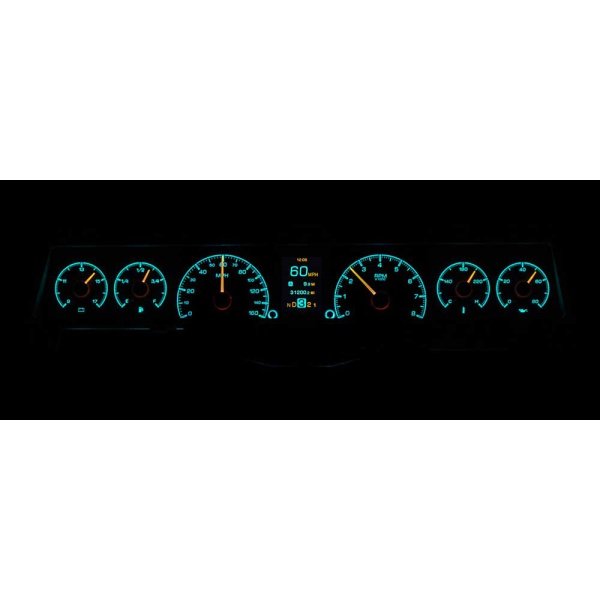

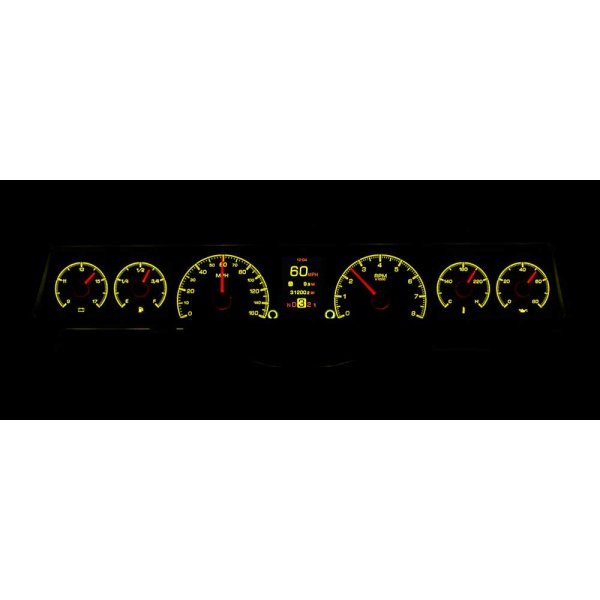

  • 12 factory preset color themes (Yellow Flare Night And Wild Aqua Night Pictured)
NOTE: Gauge Bezels Are Not Included
Gauges are the focal point of any interior. Available with your choice of black or silver alloy gauge-face styling, each HDX system allows you to select independent illumination colors for the gauge readings and needles, as well as the message centers. Calibration and personal settings are manipulated with the built-in, capacitive-touch buttons, or the available Bluetooth app for Apple and Android devices. Each needle hub is black nickel plated spun-aluminum to match the buttons. All HDX instrument systems feature dead-faced indicators (turn signals, high beam, check engine, cruise control, parking brake, plus two user-definable), and a red, settable warning light for each gauge. With our central control box, installation is greatly simplified with vehicle-harness sourced signals and supplied, solid state sending units connecting cleanly to their respective terminal. Click the tabs below for a more in-depth look at the HDX series! Designed for 1966-1967 Chevy II

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Years
Chevrolet Chevy II 1966 - 1967
