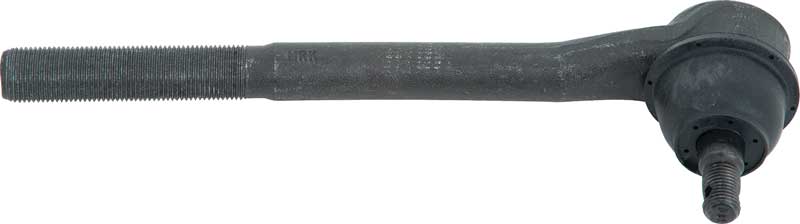

1980-81 Camaro V6, 1975-81 Firebird; Inner Tie Rod; 8-3/4" Center To End; Passenger Side

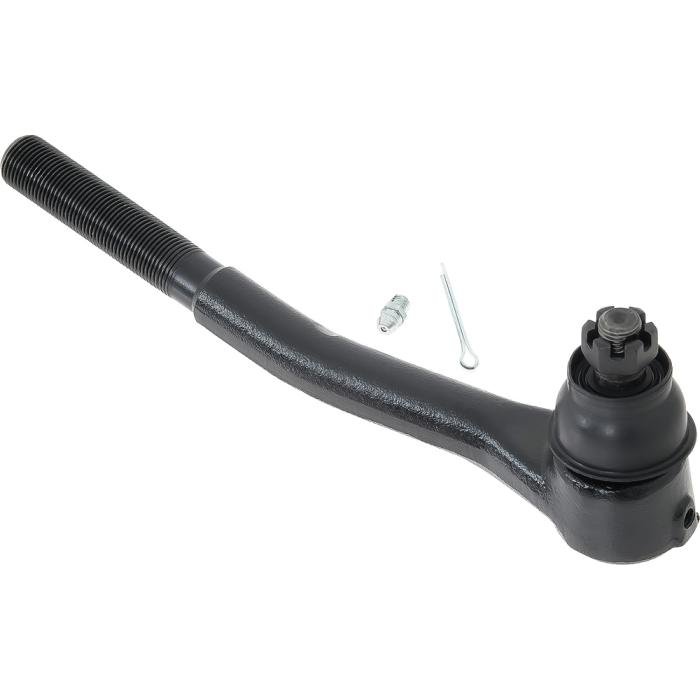

Reproduction of the original inner tie-rod end designed for use with various 1975-81 GM models including 1980-81 Camaro V6 models, and 1975-81 Firebird and Trans Am models. Restores vehicle handling, and OE alignment. Reduces tire wear, and improves steering response. Each tie-rod end includes: (1) Tie Rod End, (1) Castle Nut, (1) Cotter Pin, (1) Dust Boot, (1) Grease Fitting.
Specifications:
Rod Thread: 11/16-18
Bar Size: 0.708
Thread: LH
Style: Male
Large Dia. Taper: 0.581
Small Dia. Taper: 0.516
Stud Thread Size: 7/16-18
Stud Length: 0.5
Length Center Stud to End: 8.75
Configuration: Bent
Greaseable: Yes
Dust Boot Included: Yes
Buick Applications:
1978-1979 Buick Skylark (with power steering) (RH)
Cadillac Applications:
1976-1979 Cadillac Seville (RH)
Chevrolet Applications:
1980-1981 Chevrolet Camaro (6 cyl) (RH)
Oldsmobile Applications:
1978-1979 Oldsmobile Omega (with power steering) (RH)
Pontiac Applications:
1975-1975 Pontiac Firebird (with 9" outer tie rod ends) (RH)
1976-1981 Pontiac Firebird (all) (LH)
1975-1975 Pontiac Trans Am (with 9" outer tie rod ends) (RH)
1976-1981 Pontiac Trans Am (all) (RH)
1977-1977 Pontiac Phoenix (2.5L 4 cylinder) (RH)
1978-1979 Pontiac Phoenix (except Rally Suspension, power steering) (RH)
1977-1977 Pontiac Ventura (2.5L 4 cylinder) (RH)
Vehicle Fitment:
The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
