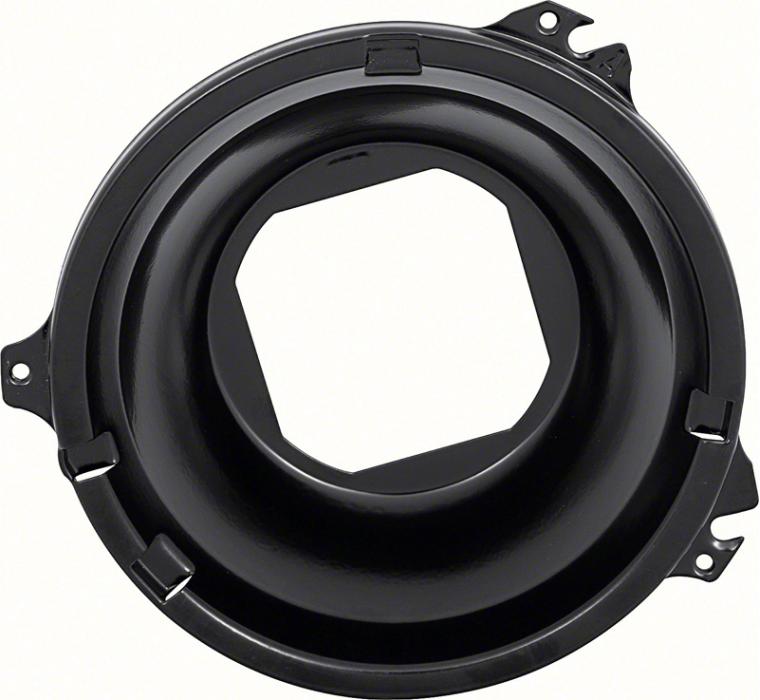

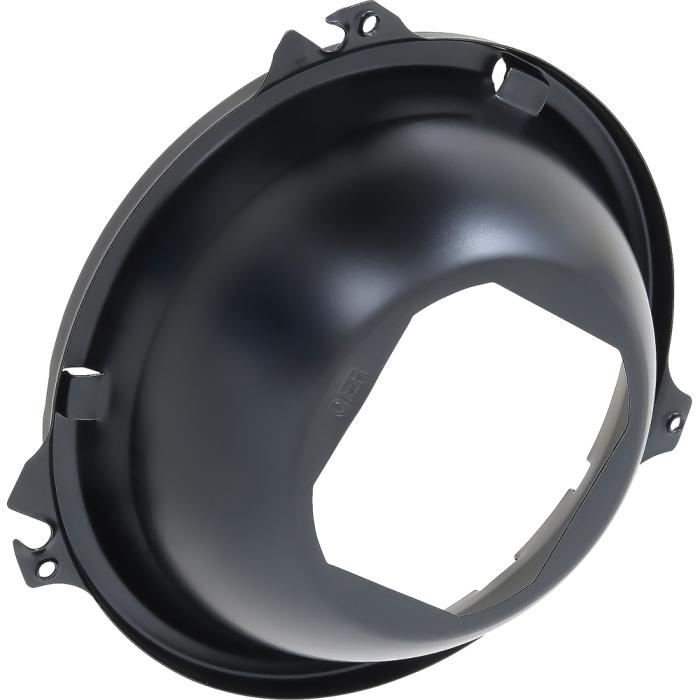

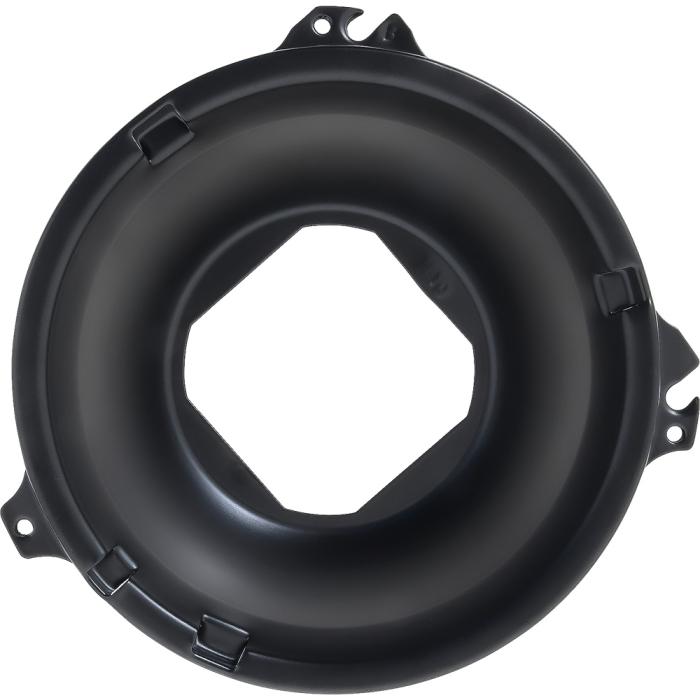

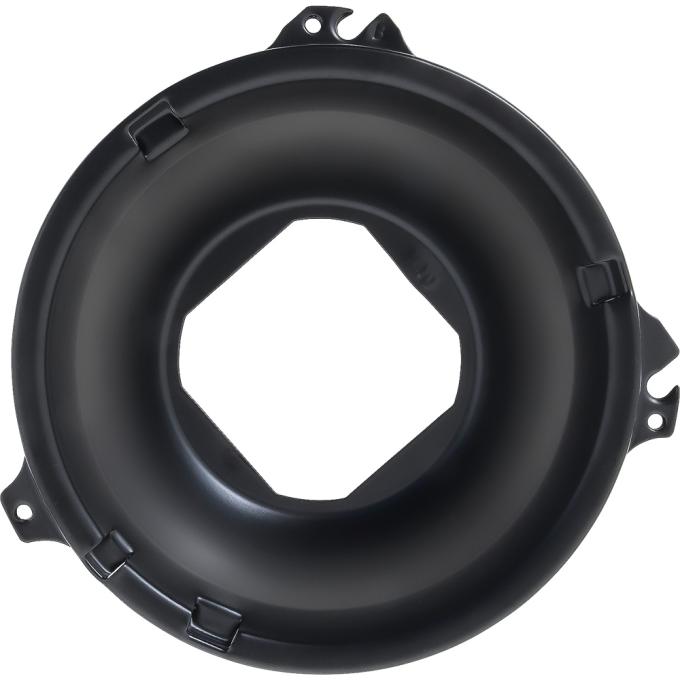

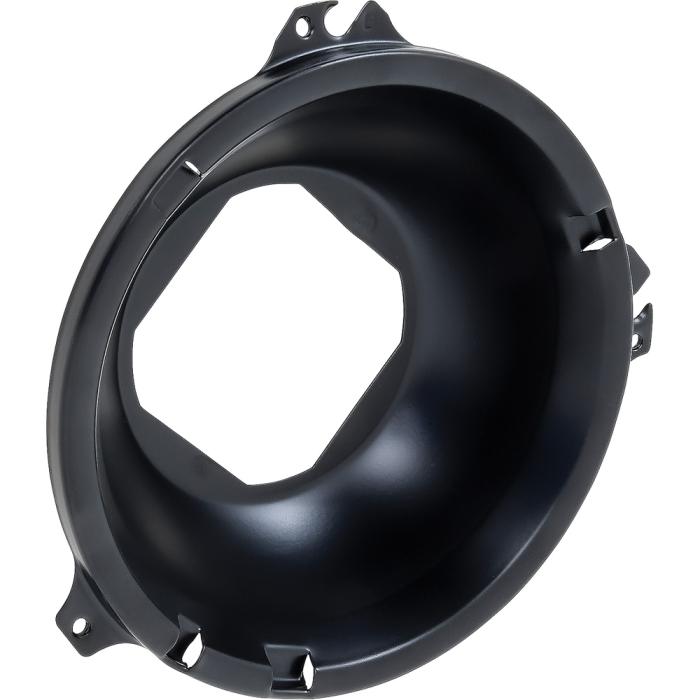

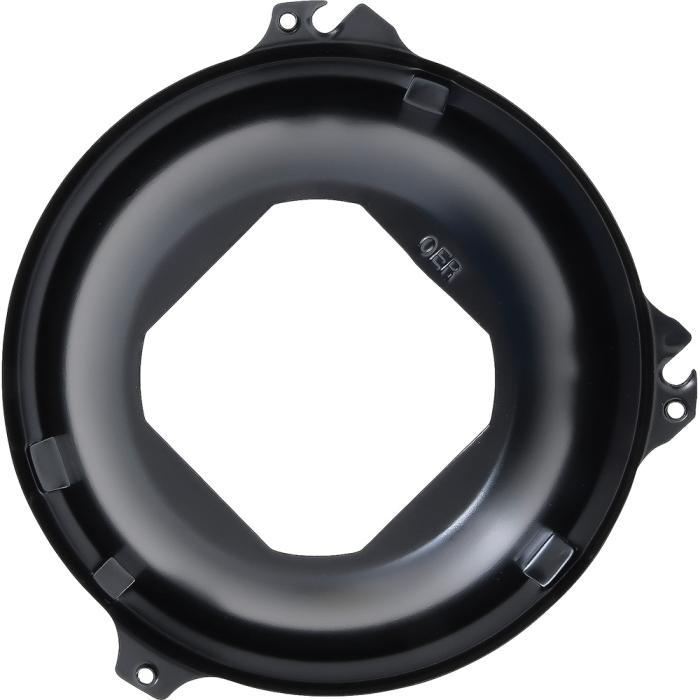

Reproduction of the original "square-hole" style mounting bucket designed for use on various 1958-82 GM models. The mounting bucket is designed to allow adjustment of the headlight beam on various 5-3/4" round quad headlamp equipped models. This headlamp bucket is attached to the vehicle using adjustment screws and nut assemblies. Features 3-tabs to secure the 3-tab headlight trim ring to the bucket. Replaces GM part #'s 5950507.
Chevrolet Applications:
1958-1964 Chevrolet Impala (RH Outer)
1958-1964 Chevrolet Bel Air (RH Outer)
1958-1964 Chevrolet Biscayne (RH Outer)
1965-1968 Chevrolet Impala (LH Outer)
1965-1968 Chevrolet Bel Air (LH Outer)
1965-1968 Chevrolet Biscayne (LH Outer)
1966-1968 Chevrolet Caprice (LH Outer)
1967-1968 Chevrolet Impala (RH Outer)
1967-1968 Chevrolet Bel Air (RH Outer)
1967-1968 Chevrolet Biscayne (RH Outer)
1967-1968 Chevrolet Caprice (RH Outer)
1969-1976 Chevrolet Impala (LH Outer)
1969-1976 Chevrolet Bel Air (LH Outer)
1969-1976 Chevrolet Biscayne (LH Outer)
1969-1976 Chevrolet Caprice (LH Outer)
1970-1970 Chevrolet Chevelle (RH Outer)
1970-1970 Chevrolet El Camino (RH Outer)
1958-1961 Chevrolet Pickup Truck (LH Outer)
1958-1982 Chevrolet Corvette (LH Outer)
GMC Applications:
1958-1972 GMC Pickup Truck (LH Outer)
Pontiac Applications:
1967-1969 Pontiac Firebird (LH Outer)
Application Notes:
LH = left hand driver side
RH = right hand passenger side
Vehicle Fitment:
The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
