Oracle Lighting Vector Series Full LED Grill Lighting 5817-PRO

Oracle Lighting Vector Series Full LED Grill Lighting 5817-PRO
Oracle Lighting Vector Series Full LED Grill Lighting 5817-PROOracle Lighting Vector Series Full LED Grill Lighting 5817-PROOracle Lighting Vector Series Full LED Grill Lighting 5817-PROOracle Lighting Vector Series Full LED Grill Lighting 5817-PRO
$1,955.99 ea
NEWARRIVING SOONEstimated Ship Date 07/25/2025 (If Ordered Today)
Model: 4852096
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
OVERSIZE 1
STORE PICKUP
[More Info]

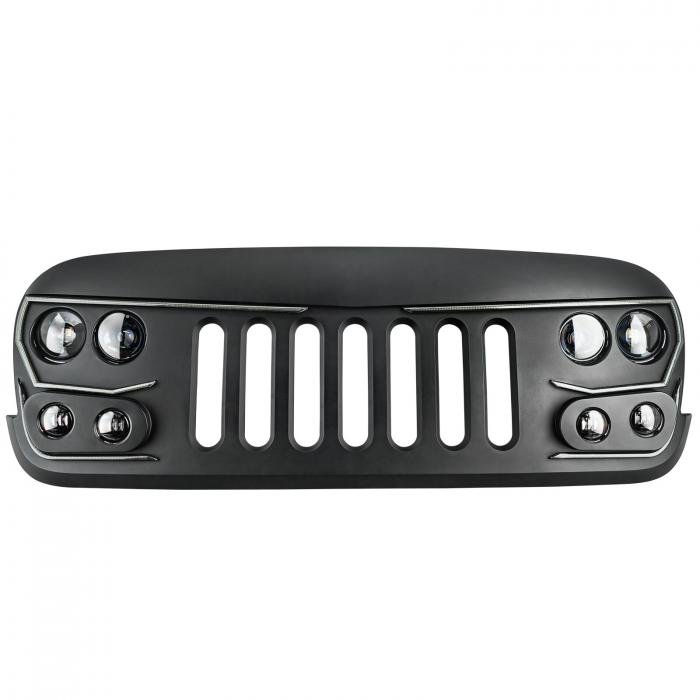

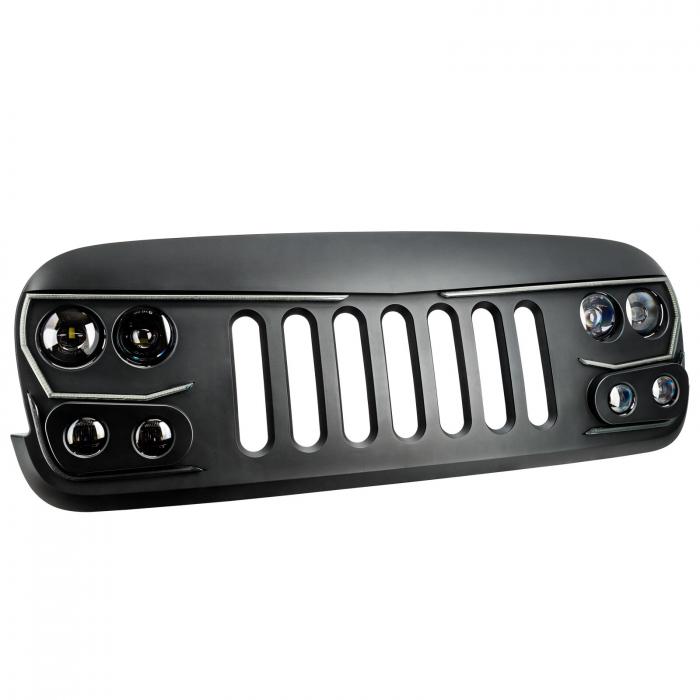

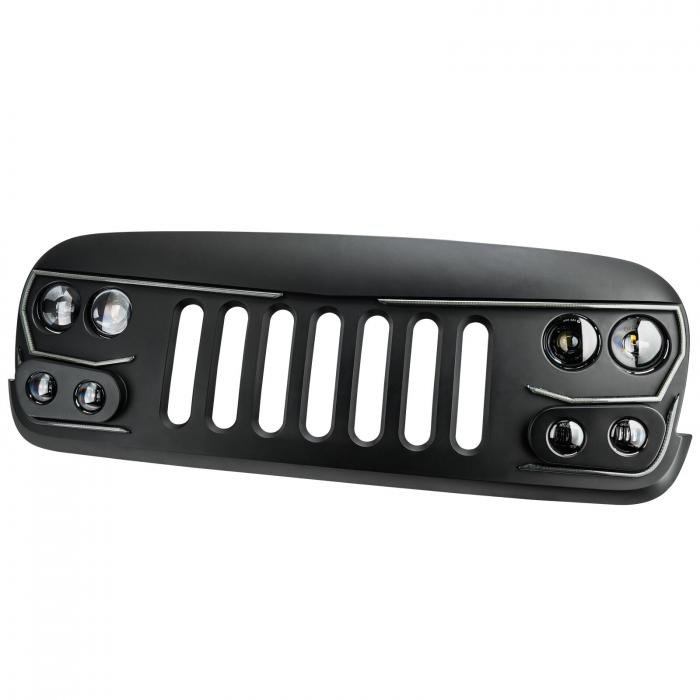

The ORACLE Lighting Vector Series Grill for the Jeep Wrangler JK is the first full-featured replacement grill with integrated LED light emitters for Low Beam, High Beam, as well as a Dynamic LED DRL. This unique design is equipped with an array of application-specific LED lighting features and has the aggressive styling and rugged durability that Jeep owners demand. These modules are now robotic-ally sealed to create an Ingress Protection Rating of IP68 which will keep moisture out of your fixtures even from exposure to pressurized water spray and brief underwater submersion. The DRL modules are now mounted with hardware rather than adhesive to make these parts easier to remove for grill painting and maintenance. Each LED beam can be independently adjusted in order to put light on the road without blinding oncoming traffic, especially important for lifted Wranglers. The separate driving and Low Beam lights allow for proper light distribution for optimal road legal light. The Vector Series Grill features an impressive 5,600 Combined Lumen Low Beam with advanced optics for precision lighting that illuminates the road for increased driver visibility without creating glare that can blind oncoming traffic. 7,200 Combined Lumen High Beam for illuminating any dark landscape. The simple wiring connection is "Plug and Play" thanks to the included harness adapter. Additional features of the ORACLE Lighting Vector Series Grill include an integrated LED Daytime Running Light which increases driver safety. This DRL also features a unique "startup sequence" Dynamic LED display. Another safety feature is the LED Turn Signal that is 4x brighter than the factory turn signal lamp. The components of this project were CAD developed to insure that the fit and finish of this product matches factory quality and fitment.
Features:
  • Vector Series Full LED Grill Lighting
  • 2007 thru 2017 Jeep Wrangler
  • Precision Beam "No Glare" output design
About Oracle Lighting Technologies

Louisiana-based Oracle Lighting has been designing innovative lighting products and technologies for the automotive/12Volt, powersports, motorcycle, and marine markets since 1999. The company's philosophy is this: in today's world of fly-by-night vendors, we think it is important to partner with businesses that you can trust to be there for you today, tomorrow, and for years to come.

Located just outside New Orleans, Oracle Lighting has received accolades from numerous organizations for its business practices for many years, including most recently being awarded SEMA's Manufacturer of the Year in 2021 for outstanding contribution to the automotive industry. The company was also listed on the Inc500 list of the Fastest Growing Businesses in the USA for eight years consecutively, winning the 2012 Bronze Stevie Award for Consumer Products Company of the Year, and being named The Small Business Administration's Exporter of the Year and a Small Business Champion by the U.S. Senate Small Business and Entrepreneurship Committee. In 2012, Oracle Lighting was named the Jefferson Parish Small Business of the Year by JEDCO. New Orleans CityBusiness Magazine also named Oracle Lighting a Top Private Company in the Greater New Orleans Area in 2012, 2013, 2014, 2015, 2016, and 2017 as well as a top three Fastest Growing Company in 2021.

Downloads:

Download Name File Size
5817_JKV_Instructions.pdf2.2MB

Videos:

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Years
Jeep Wrangler 2007 - 2017

Specifications:

Body Material Polycarbonate

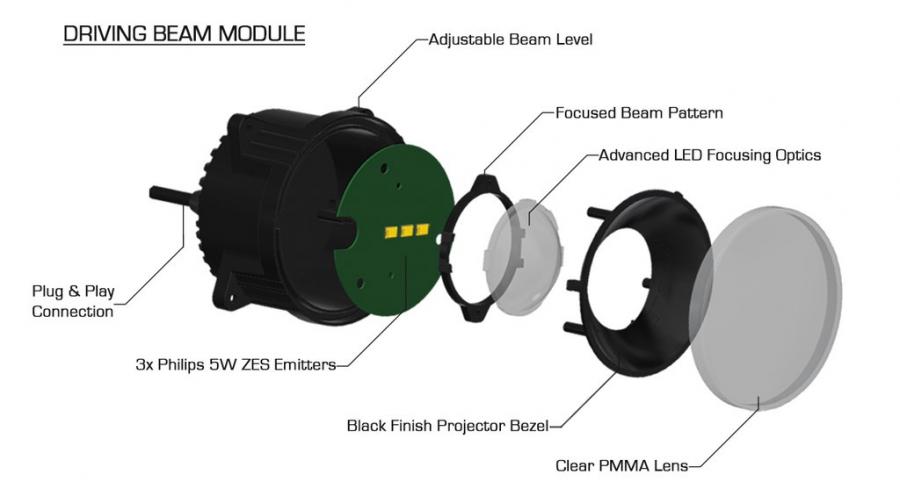

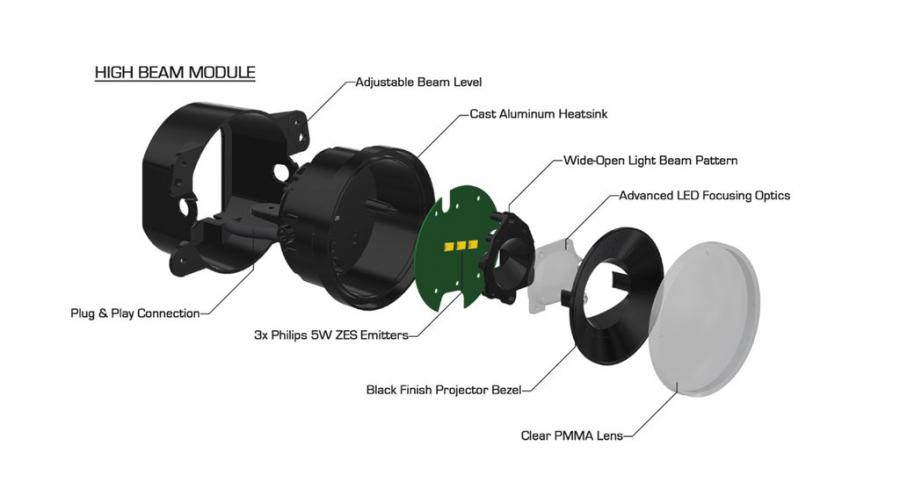

Contents (1x) ORACLE Lighting Vector Series Grill, (4x) Adjustable LED Low Beam Emitters, (2x) Adjustable LED Driving Beam Emitters, (2x) LED High Beam Emitters, (2x) Dynamic Daytime Running Lights, (2x) Amber LED Turn Signal Modules, (2x) Removable Mounting Brackets, (2x) Plug & Play Headlight Harnesses, (8x) Metal Grill Retailer Installation Clips, Installation Guide and DIY Video
High Beam Lumens 1600
Low Beam Lumens 4000
Part Type Grille
Proposition 65 WARNING: Cancer and Reproductive Harm
Warranty 2 Year
Warranty Time 2 YR
