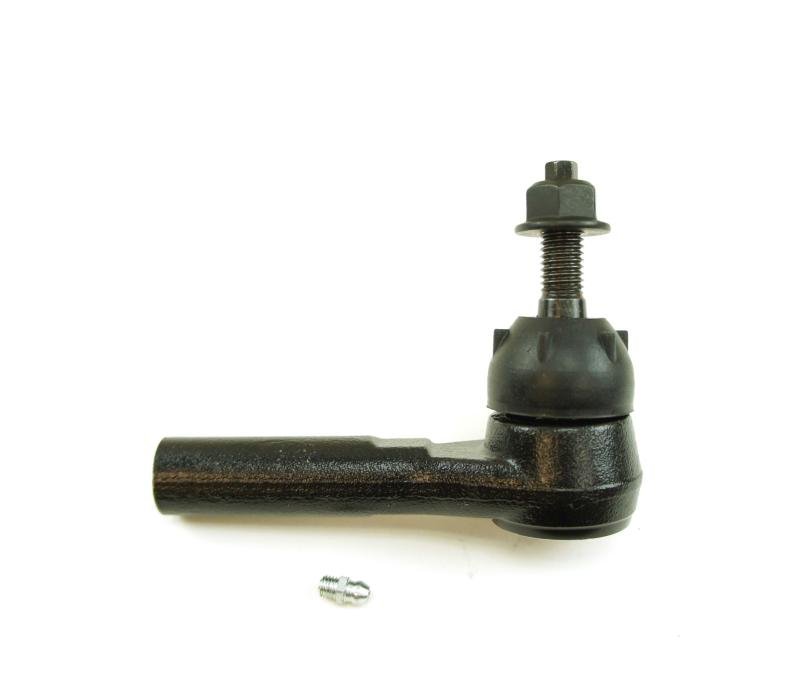

Replacement outer tie rod end for 2003-2004 Saturn Ion, available for both right and left-hand sides. This heavy-duty tie rod end features a metal bearing with a grease fitting to ensure smooth steering response and extended service life. It secures the steering linkage to the wheel hub, maintains proper alignment geometry, and helps prevent uneven tire wear. Built for durability and reliable performance, it’s an ideal restoration or repair part for worn or damaged steering components, offering straightforward installation for DIY mechanics and professional shops.
Features:
- Fits 2003-2004 Saturn Ion — outer tie rod end, right or left hand.
- Metal bearing construction for improved strength and wear resistance.
- Greaseable design allows periodic lubrication to extend component life.
- Secures steering linkage to wheel hub to maintain alignment and handling.
- Reduces vibration and play in steering for improved safety and tire longevity.
- Direct replacement for OE-style outer tie rod ends — ideal for maintenance and restoration.
Installation / Application:
- Difficulty: 2/5
- Estimated time: 30-60 minutes per side
Instructions:
- Park vehicle on level ground, engage parking brake and chock rear wheels.
- Loosen front wheel lug nuts slightly, lift the vehicle with a jack and support on jack stands. Remove the front wheel.
- Locate the outer tie rod end at the steering knuckle. Use a marker to note the rotation count or measure the distance from a fixed point to the end of the inner tie rod to preserve alignment.
- Loosen the jam nut on the inner tie rod that secures the outer tie rod end.
- Remove the cotter pin (if present) and unbolt the tie rod end from the steering knuckle. Use a tie rod end puller or pickle fork to separate the taper from the knuckle.
- Unscrew the outer tie rod end from the inner tie rod the same number of turns noted earlier to maintain alignment approx.; count turns or use the measured reference.
- Install the new outer tie rod end onto the inner tie rod to the same position, hand-tighten, and reinsert into the steering knuckle. Torque the tie rod end nut to manufacturer specs and install a new cotter pin if applicable.
- Tighten the jam nut against the outer tie rod end to secure it.
- If the part includes a grease fitting, apply grease with a grease gun until the boot seats and fresh grease appears.
- Reinstall the wheel, lower the vehicle, and torque the lug nuts to spec.
- Have a professional wheel alignment performed after installation to ensure proper toe settings and prevent uneven tire wear.
About Redline Select
Redline Restomotive® has established itself as a premier brand in the world of classic car restoration, providing enthusiasts with high-quality parts that meet the exacting standards of original manufacturer specifications. Dedicated to the preservation of American automotive history, Redline Restomotive® combines advanced manufacturing techniques with an in-depth understanding of vintage vehicles. The result is a range of products that seamlessly blend into the design and function of classic cars, giving restorers and collectors the assurance that each part reflects the era’s style, quality, and performance.
Redline Select® is our premium line of steering and suspension products for all vehicle makes and models including both North American and Import vehicles. We have partnered with an ISO 9001/QS9000/TS16949 certified manufacturing facility with more than 40 years of experience in producing components that perform to the standards our customers expect. Our steering and suspension parts are backed by multiple quality control checks along the way—during production, prior to shipping from the factory, and at arrival. With our ISO 9001:2015 certification, we observe the world’s highest standards for quality management.
Vehicle Fitment:
The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
| Make |
Model |
Years |
| Saturn |
Ion |
2003 - 2004 |
