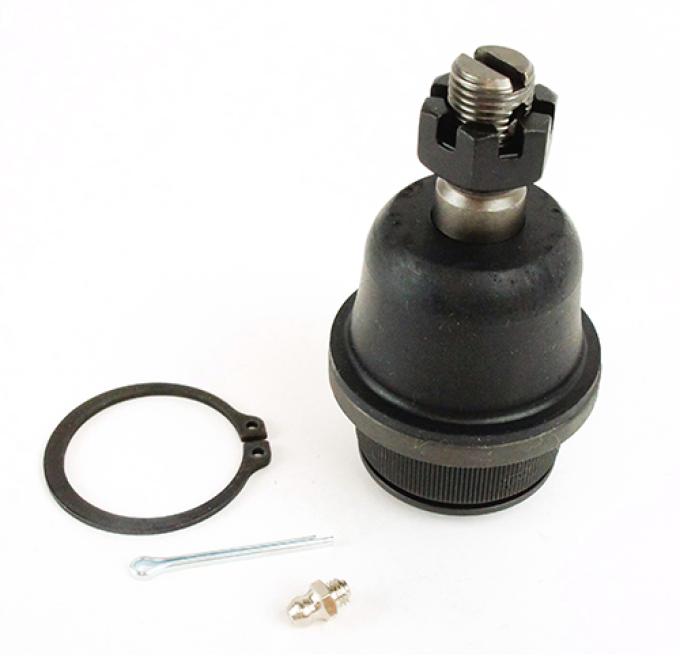

Front lower ball joint designed for 2003–2009 Toyota and Lexus models (front lower, right or left side). This OEM-style replacement secures the control arm to the steering knuckle, maintaining correct suspension geometry and smooth steering response. Built from hardened steel with a corrosion-resistant finish and a sealed bearing, the unit restores factory alignment, reduces play and vibration, and improves tire wear. Ideal for suspension repairs, restoration projects, or routine maintenance where worn or loose ball joints are causing steering looseness, uneven tire wear, or clunking sounds.
Features:
- Fits 2003–2009 Toyota and Lexus models (front lower, right or left hand)
- Durable hardened steel construction with corrosion-resistant finish
- Sealed bearing design for long service life and reduced maintenance
- Restores proper suspension geometry to reduce vibration and uneven tire wear
- Direct-fit replacement for straightforward restoration or repair jobs
- Includes new castle nut and cotter pin where applicable for secure installation
Installation / Application:
- Difficulty: 3/5
- Estimated time: 60-120 minutes per side
Instructions:
- Park on a level surface, engage parking brake, loosen wheel lug nuts slightly.
- Raise vehicle with a hydraulic jack and support securely on jack stands. Remove the front wheel.
- Apply penetrating oil to nuts and bolts on the control arm and tie rod ends to ease removal.
- Remove the brake caliper and bracket if necessary and hang it out of the way without stressing the brake hose.
- Separate the ball joint stud from the steering knuckle: remove the cotter pin and castle nut, then use a ball joint separator or a hammer and punch to free the stud from the knuckle.
- Support the control arm and remove bolts securing it to the subframe or crossmember. Remove the control arm assembly as needed to gain access to the ball joint.
- Press or drive out the old ball joint using a ball joint press or hydraulic press per tool instructions. Clean the control arm bore of rust and debris before installation.
- Press the new ball joint into the control arm until fully seated. Verify orientation and seating depth according to the part design.
- Reinstall the control arm and torque mounting bolts to the vehicle manufacturer's specifications.
- Insert the ball joint stud into the steering knuckle, install the supplied castle nut and torque to specification. Install a new cotter pin and bend to secure.
- Reinstall the brake components and wheel. Lower the vehicle and torque the wheel lug nuts to specification.
- Perform a test drive and have a professional alignment performed if suspension components were removed or replaced to ensure proper tire wear and handling.
About Redline Select
Redline Restomotive® has established itself as a premier brand in the world of classic car restoration, providing enthusiasts with high-quality parts that meet the exacting standards of original manufacturer specifications. Dedicated to the preservation of American automotive history, Redline Restomotive® combines advanced manufacturing techniques with an in-depth understanding of vintage vehicles. The result is a range of products that seamlessly blend into the design and function of classic cars, giving restorers and collectors the assurance that each part reflects the era’s style, quality, and performance.
Redline Select® is our premium line of steering and suspension products for all vehicle makes and models including both North American and Import vehicles. We have partnered with an ISO 9001/QS9000/TS16949 certified manufacturing facility with more than 40 years of experience in producing components that perform to the standards our customers expect. Our steering and suspension parts are backed by multiple quality control checks along the way—during production, prior to shipping from the factory, and at arrival. With our ISO 9001:2015 certification, we observe the world’s highest standards for quality management.
Vehicle Fitment:
The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
| Make |
Model |
Years |
| Lexus |
GX470 |
2003 - 2009 |
| Toyota |
4Runner |
2003 - 2009 |
| Toyota |
FJ Cruiser |
2007 - 2009 |
