SHIPPINGHeavy duty trucks are the perfect application for an air suspension. The weight load of these truck can vary by several thousand pounds from trailers, people, or other cargo. With a traditional leafspring suspension, you are forced to endure a harsh ride quality when unloaded in order to accommodate any anticipated cargo when loaded. With air suspension, however, you can adjust the spring rate via air pressure to be appropriate for any cargo load, light or heavy!

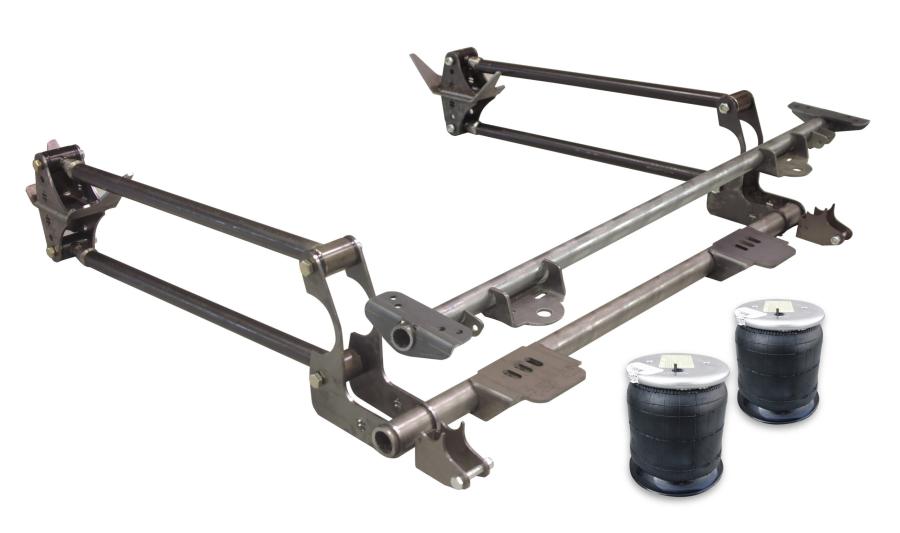

The new HD 4-Link rear suspension will fit a wide variety of heavy trucks. The HD 4-Link offers a huge improvement in not only ride quality, but also load capacity and handling performance as well. By virtue of its highly adaptable design and weld-on installation, it will fit a wide range of 3/4 ton and 1-ton trucks.

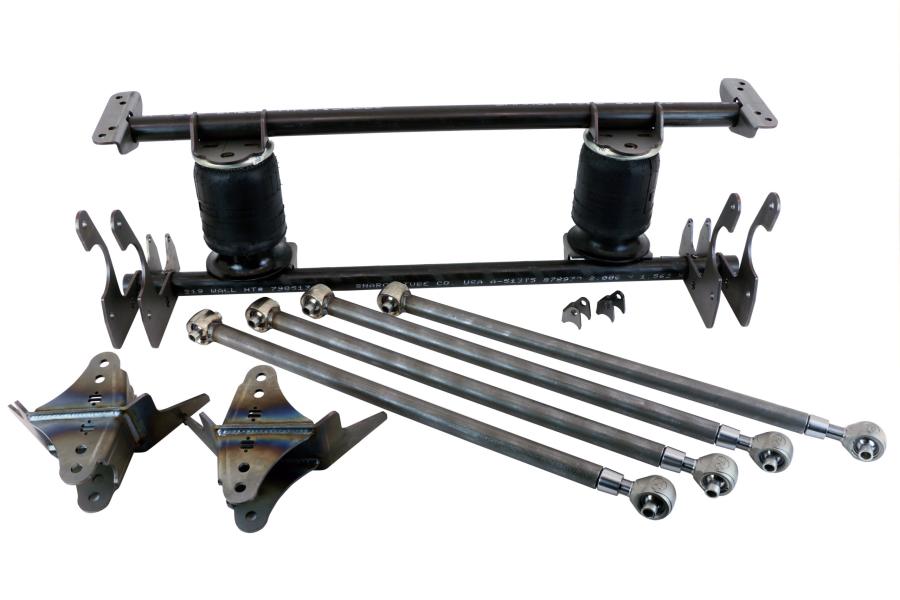

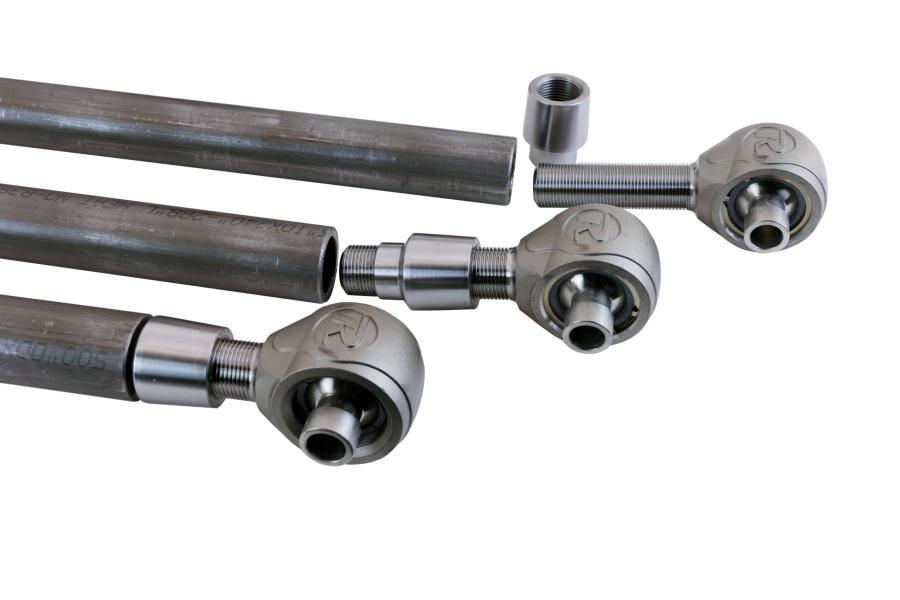

The HD 4-Link features 1.5" diameter .188" wall DOM tube 4-Link bars, large durable poly bushings, 2" diameter .250" wall tubing bridge, .250" thick plate steel brackets, and Firestone airsprings with a total load capacity of around 7,000 lbs.
Popular options for the HD 4-Link include the new RideTech impact forged Monotube shocks, your choice of universal or model specific panhard bar kits, and a variety of compressor and control systems to fit any budget or performance level.
Vehicle specific panhard bars at the bottom of this page
