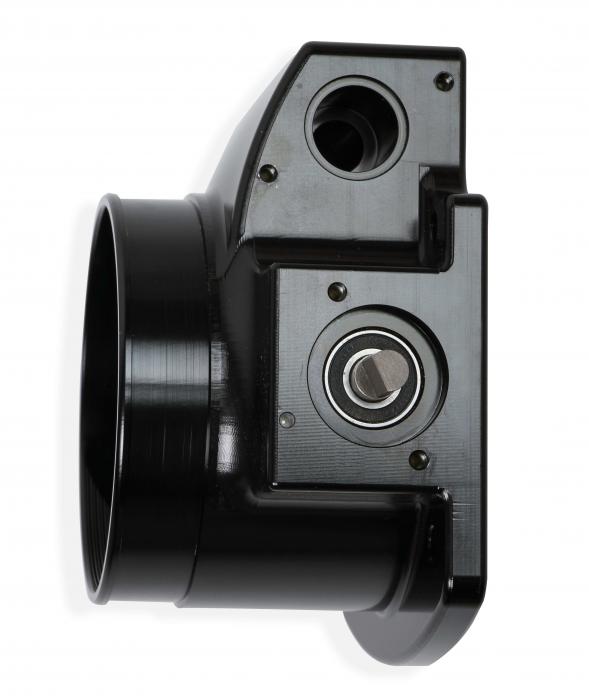

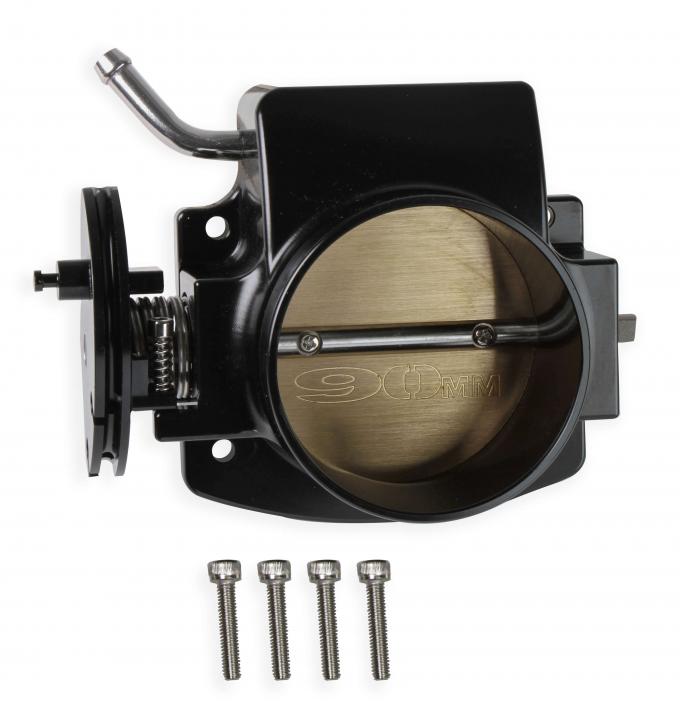

Sniper EFI's new 90mm billet aluminum throttle bodies are designed as a direct fit for the Fabricated Race intake manifolds. Don't let the low price fool you, these are feature packed throttle bodies available in both bright silver or black anodized finishes. The enlarged bore sizes allow for increased airflow to support your higher horsepower needs, a progressive throttle pulley enhances low speed drivability and a double return spring provides solid and secure throttle control feel.
Features:
- Cable operated throttle body available in 90mm opening
- Enlarged bore allows increased airflow to support higher horsepower requirements
- Built specifically for Sniper EFI Race intake manifolds
- Compatible with LS intake manifolds with 4-bolt mounting pattern
- High quality billet aluminum construction
- Choice of bright silver or black anodized finish
- Laser engraved Sniper EFI logo

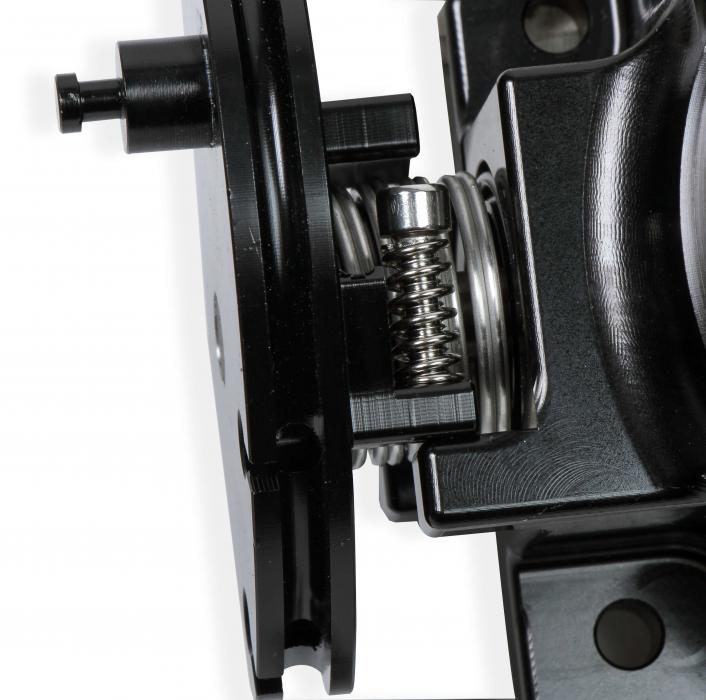

- Progressive throttle pulley and double return spring
- Adjustable throttle stop

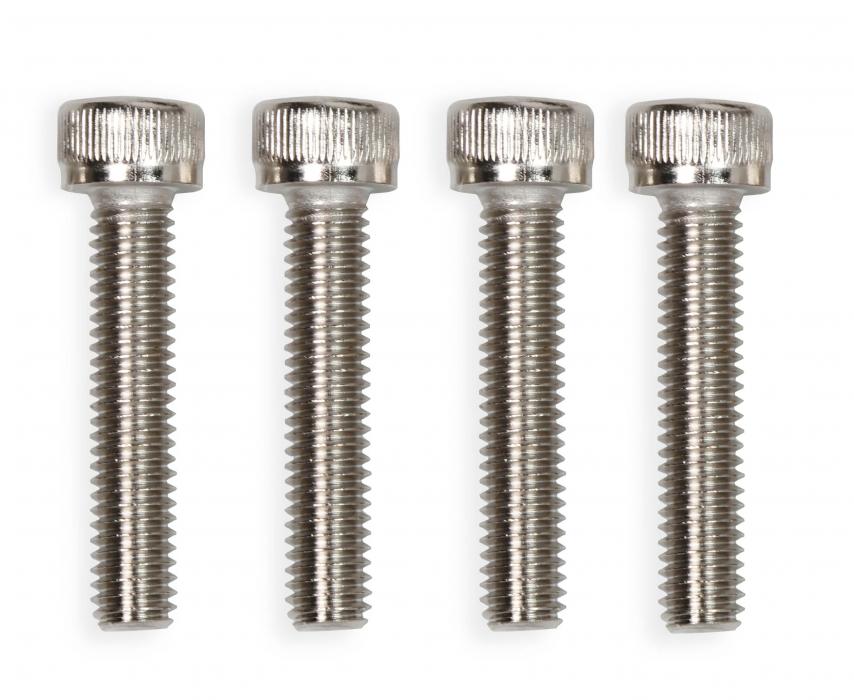

- Hardware included
Will need to use 543-34 for IAC sensor and 870001 for TPS sensor listed under Parts & Kits tab.
IAC motor attaching hardware : requires (2) 8-32 UNC screws
TPS sensor attaching hardware: requires (2) M4 x 0.7 screws
Installation Notes:
Will need to use 543-34 for IAC sensor and 870001 for TPS sensor listed under Parts & Kits tab.
IAC motor attaching hardware : requires (2) 8-32 UNC screws
TPS sensor attaching hardware: requires (2) M4 x 0.7 screws
