Ridetech Coil-Over System for 1965-1966 Impala 11290202

Ridetech Coil-Over System for 1965-1966 Impala 11290202
Ridetech Coil-Over System for 1965-1966 Impala 11290202Ridetech Coil-Over System for 1965-1966 Impala 11290202Ridetech Coil-Over System for 1965-1966 Impala 11290202Ridetech Coil-Over System for 1965-1966 Impala 11290202Ridetech Coil-Over System for 1965-1966 Impala 11290202Ridetech Coil-Over System for 1965-1966 Impala 11290202Ridetech Coil-Over System for 1965-1966 Impala 11290202Ridetech Coil-Over System for 1965-1966 Impala 11290202Ridetech Coil-Over System for 1965-1966 Impala 11290202
$8,147.99 kt

Available Options


NEWOut of stock with RIDETECH as of 03/28/2024
Model: 3993520
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
SHIPPING
INCLUDED

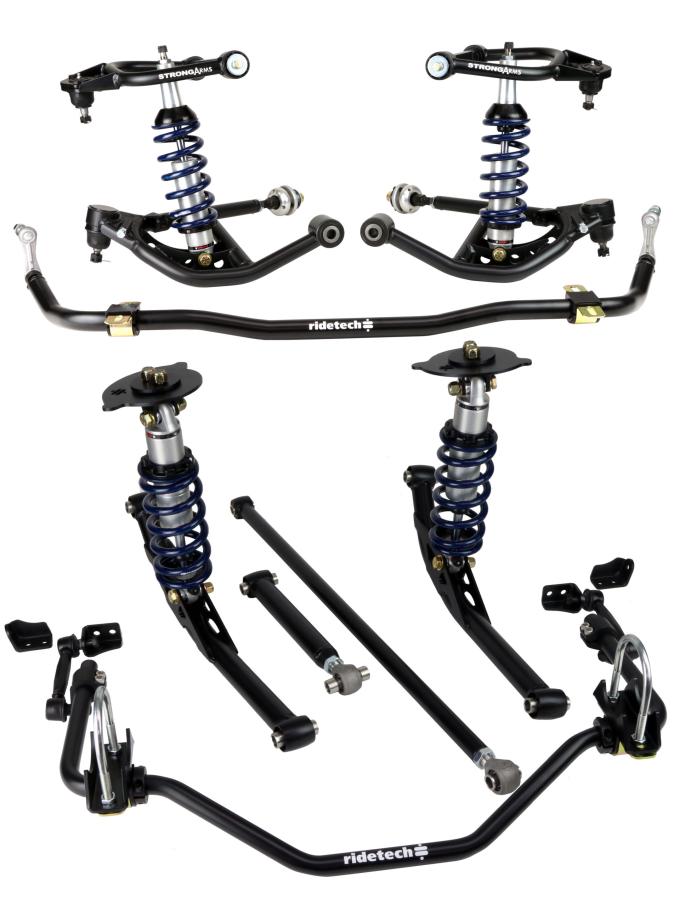

This Coil-Over System is specifically designed for the 1965-1966 Chevy “B” Body cars and includes everything needed to provide a lowered stance with dramatically improved handling and ride quality.  The system contains front upper and lower StrongArms, front & rear MuscleBars, front HQ Series Coil-Overs, rear Upper and lower StrongArms with Adjustable upper and Panhard Bar, rear HQ Series Coil-Overs shocks. The benefit of buying a complete suspension system is that it takes all of the guesswork out when purchasing a new suspension. RideTech has spent hours collecting data to find a perfect spring rate and components for your vehicle’s performance and ride quality.

1965-1966 Chevy “B” Body includes Impala, Bel Air, Biscayne & Caprice.

Features:

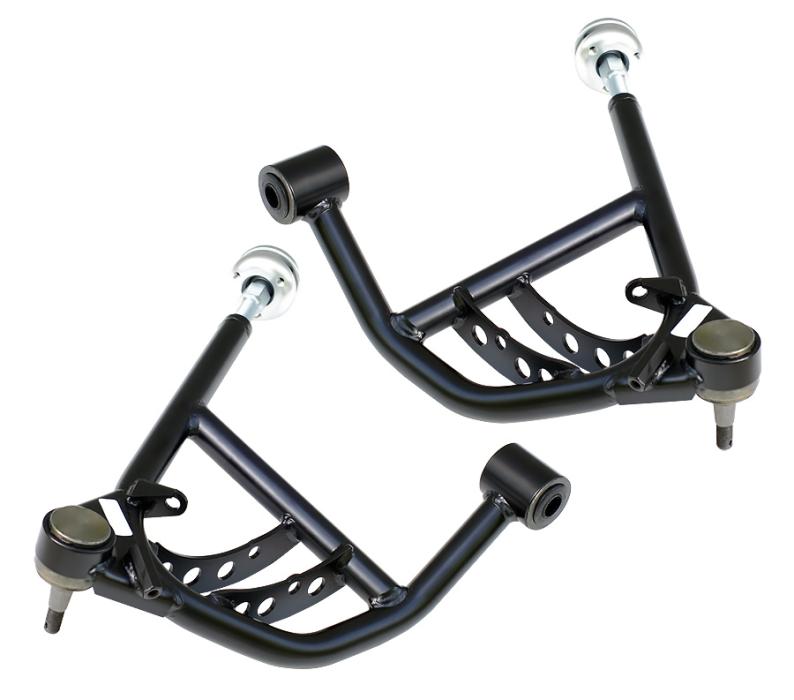

  • Upper StrongArms feature corrected ball joint angles and the upper ball joint have been moved back to allow for additional caster setting to improve high speed stability and steering feel.  They are powder coated satin black and fully assembled with ball joints, bushing and cross shafts, ready for installation.
  • Lower StrongArms feature a double sheer lower mount for increased strength.  They are powder coated satin black and fully assembled with ball joints, bushing and cross shafts, ready for installation.
  • HQ Series Coil-Overs utilize an impact forged aluminum body and Monotube design to deliver excellent ride quality and handling.  They allow fine tuning of the ride quality and handling via the rebound knob is located at the top of the shock for under hood access. They come standard with a 1,000,0001 Mile Warranty.  Hyperco springs are used to provide a consistent spring rate that will last a lifetime.

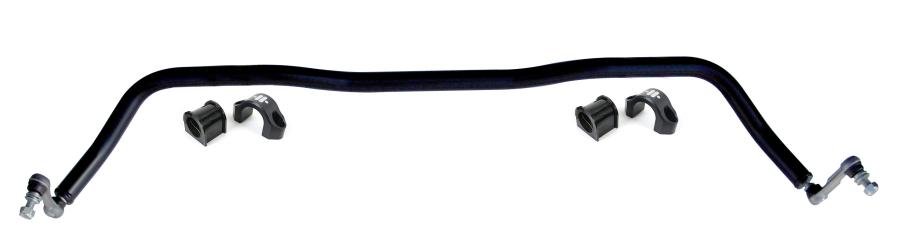

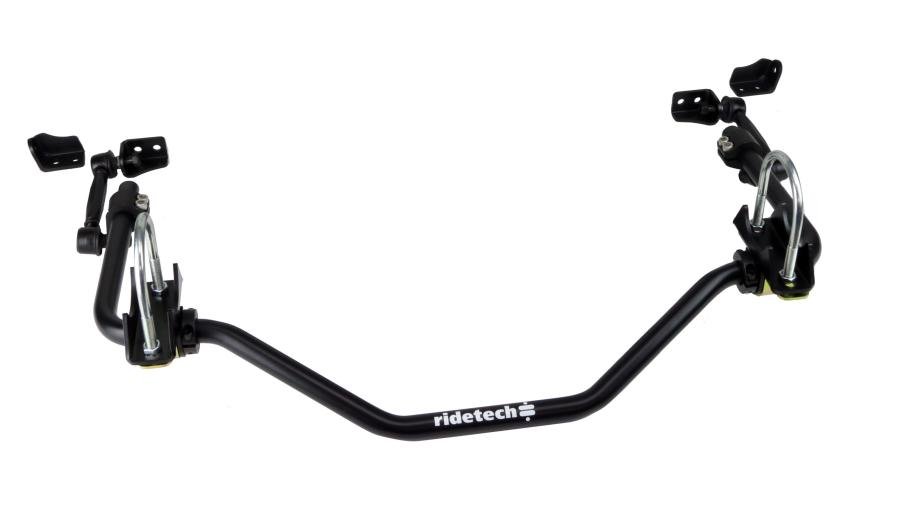

  • Front & Rear MucleBar Sway Bars helps reduce body roll and includes the PosiLink endlinks that provide immediate engagement between the chassis and control arms. The Rear Adjustable MuscleBar allows for fine tuning by sliding the arm on the bar to increase or decrease rate.

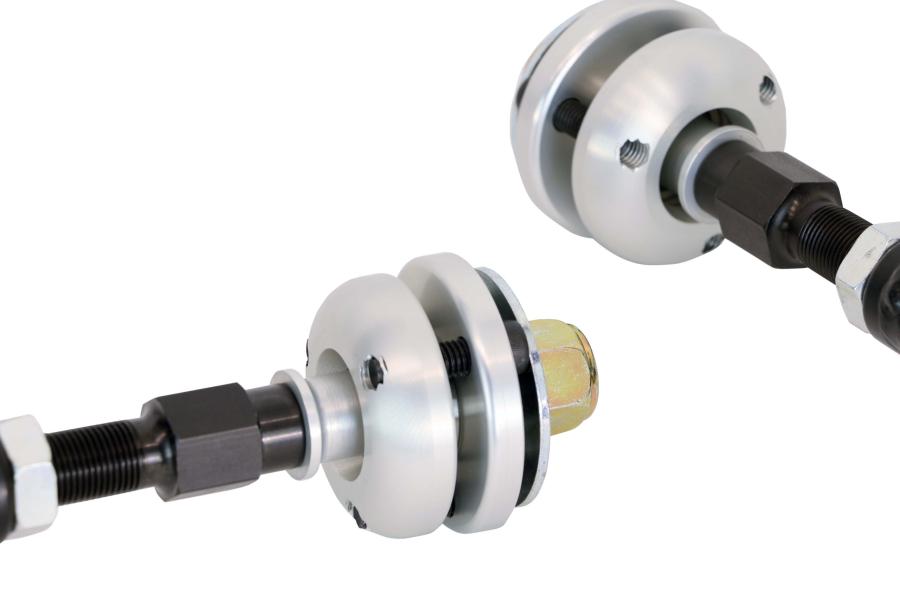

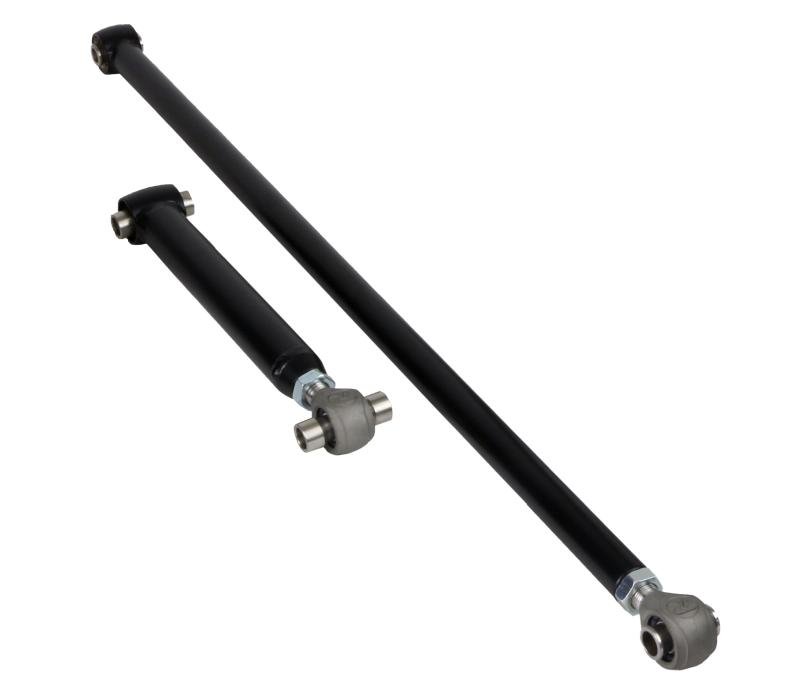

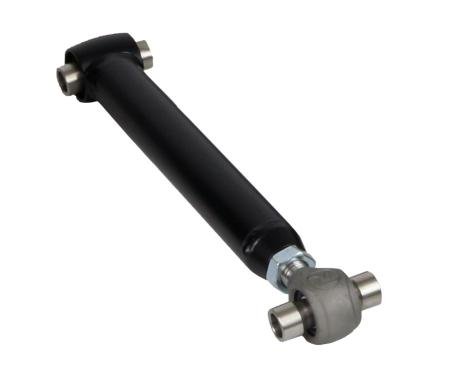

  • Rear StrongArms provide added strength to help get the power to the pavement.   They utilize R-Joint Technology to provide smooth operation and reduce roll bind.  The lower arms feature a double sheer mount for the coil-overs locating them in place of the stock springs, keeping the load where is belongs.  The upper arm and panhard bar are adjustable, allowing the axle to be centered and pinion angle to be set.

Notes:-

  • System is designed for use with stock spindles. -Some cars have two rear upper control arms and will need an additional StrongArm.



WARNING: Cancer and Reproductive Harm

About Ridetech

Ridetech manufactures exciting suspension systems that improve the handling and ride quality of your muscle car, truck, Corvette or hot rod. From restorations and show cars, to high-speed autocross and track day cars, Ridetech offers a wide range of premium products including air suspension systems (air ride), coil-overs, shock absorbers, coil and leaf springs, tubular control arms, roll bars, sway bars and much more.

Downloads:

Download Name File Size
11290298_WEB_composite_rjoint1.pdf3.29MB

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Years
Chevrolet Bel Air 1965 - 1966
Chevrolet Biscayne 1965 - 1966
Chevrolet Caprice 1966
Chevrolet Impala 1965 - 1966
