Please note; the bushing must be reemed.
SAVE $$$ over individual parts purchase.

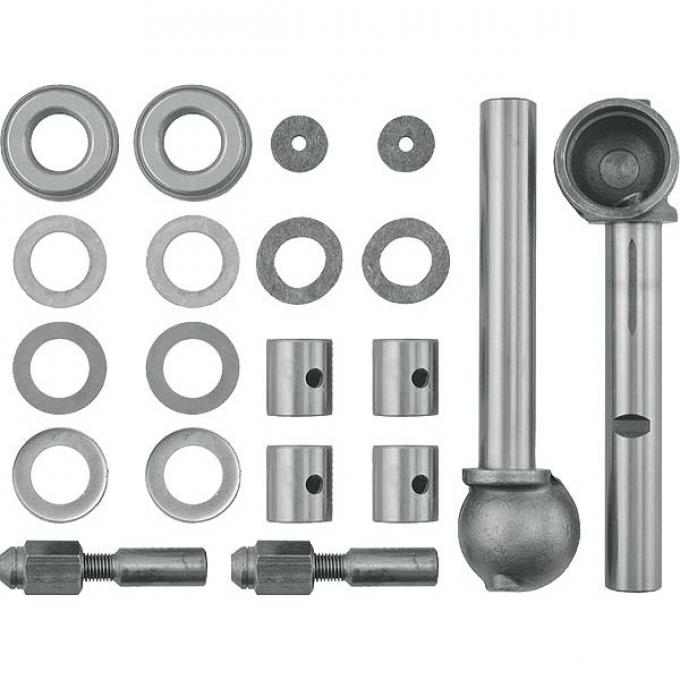

Worn Model A Ford spindle bolt parts contribute to rough steering and shimmy. This set contains the correct grooved lock pin (style 3 as in judging standards), with the long lock nut used from 1929-1931.
Place the cup washer with felt under the washer against the bottom of the axle. The felt can be rubber cemented to the lower spindle arm to hold it in place during assembly. The bearing sits on top of the axle with the open side of the bearing down.
One or more shims are located between the bottom of the bearing and the top of the axle. Ream the bushings to .814. When connecting the brake lever to the socket or cup of the king pin, check that the lever moves freely by moving the brake rod clevis back and forth.
If you feel a drag or bind, the king pin cup may not be aligned to the end of the lever shaft. This can be corrected by filing the cross cut in the king pin shank to change the angle for the cup to seat to the lever shaft.
The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
||1928 - 1929
||1928 - 1931
