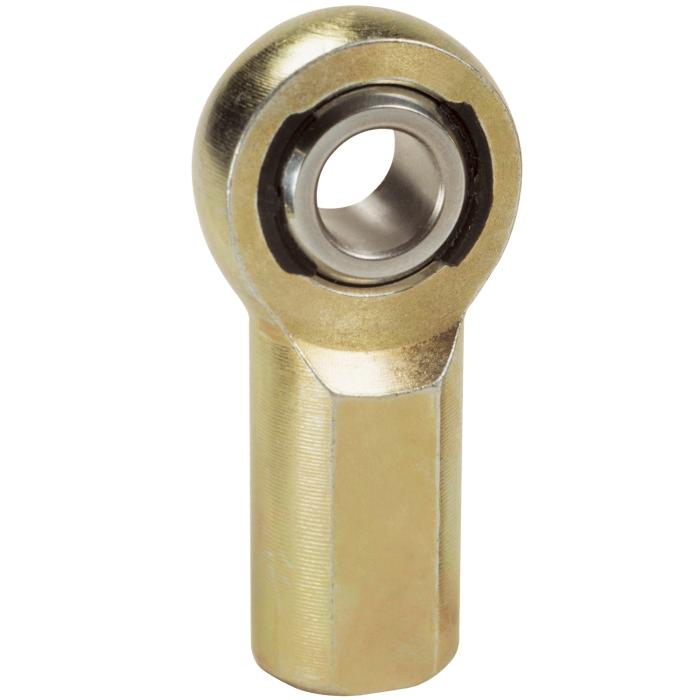

QA1’s EXF Series high-strength carbon steel female rod ends include a unique loader slot design and have increased cross-sectional thickness. As an economical alternative to alloy/chromoly, QA1 is the exclusive provider of carbon steel loader slot rod ends. The reinforced Nylon injection molded race with self-lubricating PTFE won't pound out like other styles and helps keep dirt and debris out for excellent performance. This design results in metal-to-metal support for heavy shock loads and smooth operation for low loads, making it an excellent solution for a broad range of applications. When even more strength is needed, consider QA1 X Series rod ends. Available with right- or left-hand threads. Stud configurations are also available.
From bolt-on products that get you behind the wheel faster, to experienced technicians available to help increase your 60’ times or handle curves with confidence, everything we do is designed to get you out on the road.
Whether your goal is a Saturday night sprint across the checkered flag or a slow, easy cruise down main street, we have the suspension and driveline products you need for the experience you want.
No matter what you drive, we want you to #goDRIVEit!
| Approximate Bearing Weight (lbs.) | 2.28 |
| Ball - Finish | Chrome plated |
| Ball - Heat Treated | Y |
| Ball - High Misalignment | N |
| Ball - Material | 52100 Bearing Steel |
| Ball - Precision Ground | Y |
| Ball Diameter Reference (inches) | 1.875 |
| Ball Width (W) ± .005 (inches) | 1.375 |
| Body - Color | Clear |
| Body - Corrosion Resistant | Y |
| Body - Heat Treated | N |
| Body - Material | Carbon Steel |
| Bore (B) + .0015- .0005 (inches) | 1 |
| Center Line Length (A) ± .015 (inches) | 4.125 |
| Grease Fitting | N |
| Housing Diameter (D) ± .010 (inches) | 2.75 |
| Housing Width (T) ± .005 (inches) | 1 |
| Male/Female | FEMALE |
| Measurement | Inch |
| Misalignment Angle aº | 17 |
| Part Type | Suspension Rod End Bearing |
| Proposition 65 | www.P65Warnings.ca.gov |
| Race - Material | Reinforced Nylon 12 with PTFE |
| Self-Lubricating | Y |
| Shaft Width (E) ± .010 (inches) | 1.625 |
| Stud | N |
| Style | Loader Slot |
| Thread Direction (Hand) | LEFT |
| Thread Length (C) + .062 - .031 (inches) | 2.125 |
| Thread UNF-2B (Female) | 1 1/4-12 |
| Ultimate Radial Static Load (lbs.) | 43541 |
| Warranty Time | 1 YR |
| Wrench Flat (F) ± .010 (inches) | 1.5 |
