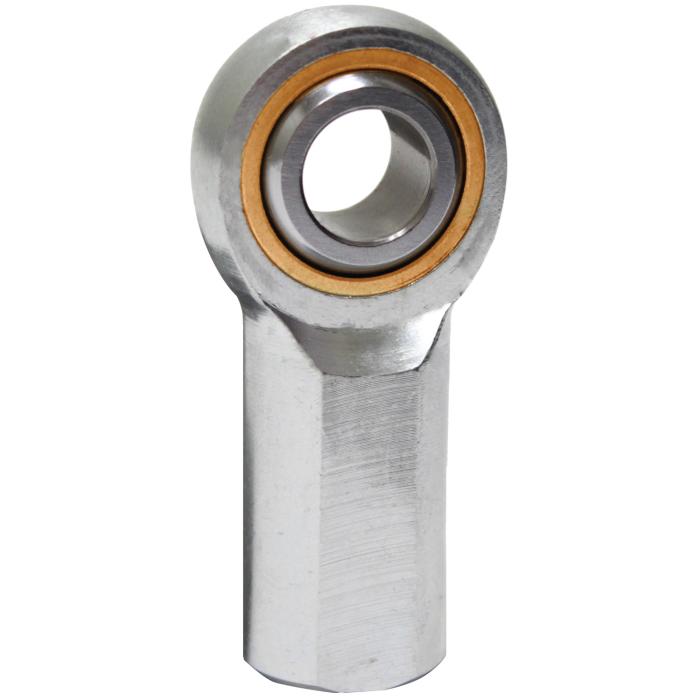

QA1's VF Series carbon steel female rod ends with a bronze race are generally appropriate for low-load, high-oscillation commercial applications. These rod ends are protective-coated for corrosion resistance and are available with right- or left-hand threads. Grease fittings and stud configurations are available.
From bolt-on products that get you behind the wheel faster, to experienced technicians available to help increase your 60’ times or handle curves with confidence, everything we do is designed to get you out on the road.
Whether your goal is a Saturday night sprint across the checkered flag or a slow, easy cruise down main street, we have the suspension and driveline products you need for the experience you want.
No matter what you drive, we want you to #goDRIVEit!
| Approximate Bearing Weight (lbs.) | 0.09 |
| Ball - Finish | Chrome plated |
| Ball - Heat Treated | Y |
| Ball - High Misalignment | N |
| Ball - Material | 52100 Bearing Steel |
| Ball - Precision Ground | Y |
| Ball Diameter Reference (inches) | 0.75 |
| Ball Width (W) ± .005 (inches) | 0.437 |
| Body - Color | Clear |
| Body - Corrosion Resistant | Y |
| Body - Heat Treated | N |
| Body - Material | Carbon Steel |
| Bore (B) + .0015- .0005 (inches) | 0.3125 |
| Center Line Length (A) ± .015 (inches) | 1.375 |
| Grease Fitting | N |
| Housing Diameter (D) ± .010 (inches) | 0.875 |
| Housing Width (T) ± .005 (inches) | 0.344 |
| Male/Female | FEMALE |
| Measurement | Inch |
| Misalignment Angle aº | 12 |
| Part Type | Suspension Rod End Bearing |
| Proposition 65 | www.P65Warnings.ca.gov |
| Race - Material | Sintered Bronze |
| Self-Lubricating | Y |
| Shaft Width (E) ± .010 (inches) | 0.5 |
| Stud | N |
| Style | 3-Piece |
| Thread Direction (Hand) | RIGHT |
| Thread Length (C) + .062 - .031 (inches) | 0.75 |
| Thread UNF-2B (Female) | 5/16-24 |
| Ultimate Radial Static Load (lbs.) | 3133 |
| Warranty Time | 1 YR |
| Wrench Flat (F) ± .010 (inches) | 0.437 |
