IMPORTANT: Electrical items are covered by a 30 day EXCHANGE ONLY WARRANTY. There are no returns or refunds on such items.Vintage Air' 5th generation SureFit climate control systems are the most powerful and technologically advanced systems available today. They employ an exclusive, fully electronic microprocessor-controlled system that eliminates cables or vacuum connections. Separate, state-of-the-art, high-density aluminum heat exchangers pack the maximum possible performance and reliability within the confines of your dash.
Additional features include variable blower speed and dash/floor/defrost blend.

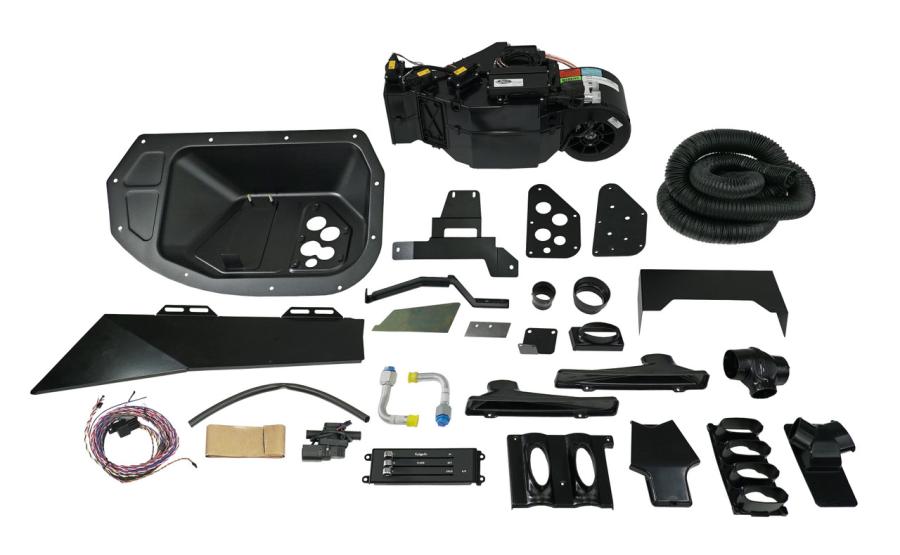

**Evaporator kit includes the evaporator unit and mounting brackets, louvers (where required), duct hose, wiring harness, new control panel, hardware and installation instructions.
This Evaporator kit can be utilized for all Regal trims. The new electronic control panel is included in the evaporator kit and will fit all Regal trims as well.
• There are two options for the Condenser Kit (Turbo and Non-Turbo). If your compressor is mounted on the driver’s side of the vehicle, use the Turbo Condenser kit. If the compressor is located on the Passenger’s side of the vehicle, use the Non-Turbo Condenser kit option.
• There are two Hose kit options, the Standard hose kit and the Modified hose kit. The Standard hose kit will only fit 1986-87 Grand National and T-type. The hose lengths and fittings are specific for these years and trim. For other trims, use the Modified hose kit, which will allow the A/C hoses to be cut to length and fittings to be clocked to your needs.
• At this time there is only one compressor bracket kit available for the Buick Regal which is designed to only fit the 1986-87 Grand National and T-type. This bracket kit was designed using a 7B10 compressor. This compact compressor was used due to the tight clearance in the engine bay.
Vintage Air, founded by Jack Chisenhall in 1976, is a San Antonio, Texas-based company specializing in the design and manufacture of high-performance aftermarket air conditioning systems for classic and late-model cars and trucks. Recognized as pioneers in the industry, they have been instrumental in developing climate control solutions tailored to the unique needs of automotive enthusiasts.
The company's product lineup includes the SureFit Series, which offers complete bolt-in, vehicle-specific climate control systems for classic and late-model muscle cars, restomods, and trucks. These systems are designed for easy installation, utilizing most of the factory sheet metal and body features. Additionally, Vintage Air provides the Builder Series, allowing customers to create custom climate control systems by selecting from various evaporators, controls, louvers, and accessories to best fit their specific build requirements.
Over the years, Vintage Air has earned a reputation for innovation and quality, becoming a trusted name among automotive enthusiasts and professional builders alike. Their commitment to excellence is evident in their comprehensive product offerings and dedication to customer satisfaction.
| Download Name | File Size |
| rear_upper_strongarm_instructions_11246699.pdf | 410.82KB |
| Make | Model | Years |
| Buick | Regal | 1982 - 1987 |
