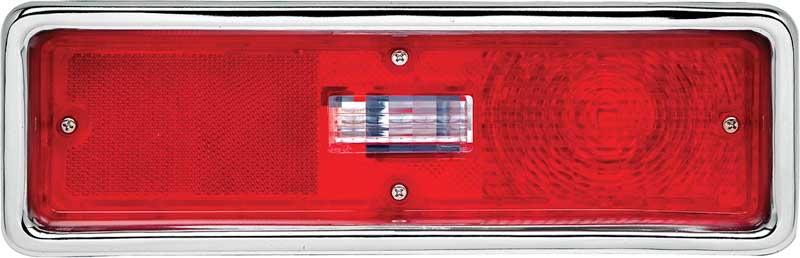

Reproduction of the original tail lamp assembly designed for use on all 1970, and early production 1971 Nova models (with rectangular shaped backup lens). Each tail lamp assembly is manufactured to factory specifications and designed to duplicate the original in every detail. Lenses are pre-assembled including the aluminum bezel. Comes complete with gasket. Lenses feature correct SAE and "Guide" markings as original. NOTE: For use with 1971 1st Design (early production) models.
Important: All 1970 & early production 1971 models feature a small rectangular shaped back-up light lens in the center of the lens. Later production 1971 & all 1972 models were produced with a larger square shaped back-up light lens. The later production lens required the upper and lower center screw holes to be slightly offset rather than centered. 1971 Owners: If you are unsure of which housing your vehicle is equipped with, please check the positioning of the upper and lower screw holes in the lenses, and match them to your housings.
Note: For late production 1971 model with square-shaped backup lens, refer to
For replacement Stop & Turn light socket and pig tails, order A11157
For replacement Reverse light socket and pig tails, order WE307
| Make | Model | Years |
| Chevrolet | Nova | 1970 - 1971 |
| Height | 14 in |
| Length | 4 in |
| Weight | 2 lbs |
| Width | 5 in |
