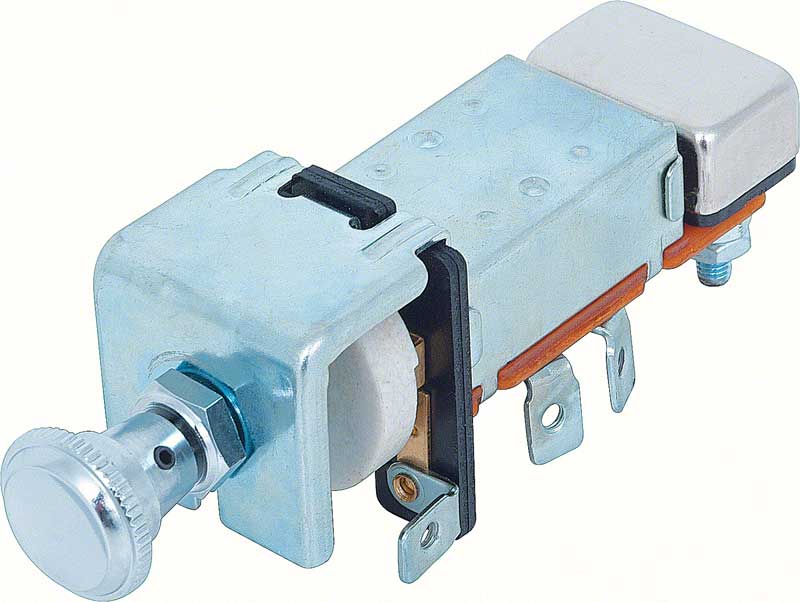

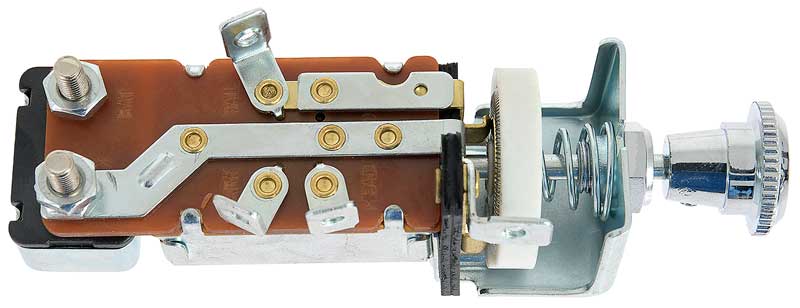

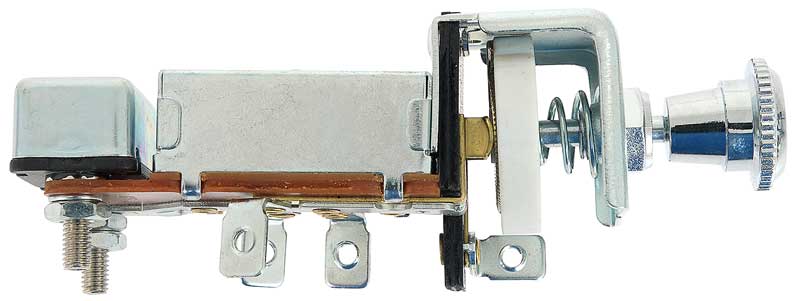

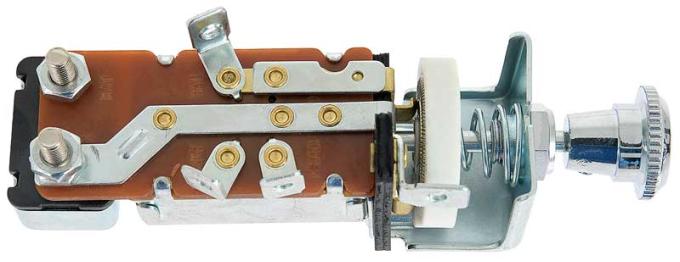

1940-55 GM, Headlamp Switch, with Shaft and Knob, 6-Volt, Universal Fit 1995041

Universal replacement headlight switch and knob designed for fitment on a variety of GM models with 6 volt system. Each switch includes the shaft and knob. Switch mounts in a 3/8" diameter hole. This switch is perfect for a hot rod, rat rod or custom. Can be used for just about any vehicle that needs a more modern headlamp switch. The shaft is not removable from this switch, but the knob can be removed using a 1/16" Allen wrench. If you wish to use your original headlight knob instead of the knob that comes with this switch, it must have 8-32 internal threads (or will need to be modified) to work with this switch. This switch does NOT control the interior lights.

• Universal Push Pull for Headlamp
• 5 Screw Terminals
• 3 Positions
• Rating: 20 Amps @ 6 Volts DC
• Push Pull Switch with Circuit Breaker
• 5.5 Ohm Rheostat - Turn to Dim Dashboard Light
• Three Position Switch = OFF-ON-ON
• Position 1 = Off
• Position 2 = Tail, Park, and Dash
• Position 3 = Tail, Dash, and Headlights
• 5 Screw Terminals (2 Stud Terminals)
• Stem 3/8" Long 3/8" Diameter
• Replaces GM 1994016, 1994022, 1995031, 1995035, 1995041, 1995045, 1995048, 1995052, D-1537

• 1950 - 1953 Buick Roadmaster
• 1949 - 1949 Buick Roadmaster Series 70
• 1950 - 1953 Buick Special
• 1949 - 1949 Buick Special Series 40
• 1950 - 1953 Buick Super
• 1949 - 1949 Buick Super Series 50

• 1950 - 1950 Cadillac Series 60 Fleetwood
• 1948 - 1949 Cadillac Series 60 Special Fleetwood
• 1948 - 1950 Cadillac Series 61
• 1948 - 1950 Cadillac Series 62
• 1948 - 1950 Cadillac Series 75 Fleetwood

• 1941 - 1946 Chevrolet Fleetline
• 1941 - 1946 Chevrolet Fleetmaster
• 1940 - 1942 Chevrolet Special Deluxe

• 1954 - 1954 Chevrolet 1500
• 1941 - 1941 Chevrolet AJ
• 1941 - 1941 Chevrolet AK
• 1941 - 1941 Chevrolet AL
• 1941 - 1941 Chevrolet AM
• 1941 - 1941 Chevrolet AN
• 1943 - 1943 Chevrolet BG
• 1942 - 1942 Chevrolet BJ
• 1942 - 1946 Chevrolet BK
• 1942 - 1945 Chevrolet BL
• 1942 - 1945 Chevrolet BM
• 1942 - 1945 Chevrolet BN
• 1946 - 1946 Chevrolet CK
• 1945 - 1946 Chevrolet DJ
• 1946 - 1946 Chevrolet DP
• 1946 - 1946 Chevrolet DR
• 1946 - 1946 Chevrolet DS
• 1946 - 1952 Chevrolet Fleetline Truck
• 1950 - 1950 Chevrolet Fleetline Truck Deluxe
• 1950 - 1950 Chevrolet Fleetline Truck Special
• 1946 - 1948 Chevrolet Fleetmaster Truck
• 1940 - 1940 Chevrolet KC
• 1940 - 1940 Chevrolet KD
• 1940 - 1940 Chevrolet KF
• 1940 - 1940 Chevrolet KP
• 1947 - 1955 Chevrolet Sedan Delivery
• 1947 - 1955 Chevrolet Truck Base
• 1947 - 1955 Chevrolet Truck 3800
• 1948 - 1955 Chevrolet Truck 3700
• 1947 - 1955 Chevrolet Truck 3600
• 1955 - 1955 Chevrolet Truck 3400
• 1955 - 1955 Chevrolet Truck 3200
• 1947 - 1955 Chevrolet Truck 3100
• 1955 - 1955 Chevrolet Truck 3500
• 1948 - 1954 Chevrolet Truck 3900
• 1940 - 1955 Chevrolet Truck

• 1951 - 1955 GMC 100
• 1947 - 1949 GMC 100-22
• 1951 - 1955 GMC 150
• 1947 - 1949 GMC 150-22
• 1951 - 1955 GMC 250
• 1940 - 1940 GMC AC100
• 1940 - 1940 GMC AC150
• 1940 - 1940 GMC AC250
• 1940 - 1940 GMC AC252
• 1940 - 1940 GMC AC300
• 1940 - 1942 GMC AF240
• 1940 - 1942 GMC AFP240
• 1941 - 1947 GMC CC100
• 1945 - 1947 GMC CC101
• 1945 - 1947 GMC CC102
• 1941 - 1947 GMC CC150
• 1941 - 1947 GMC CC250
• 1941 - 1947 GMC CC260
• 1941 - 1942 GMC CC300
• 1941 - 1947 GMC CCV100
• 1941 - 1946 GMC CCX250
• 1941 - 1946 GMC EC100
• 1945 - 1946 GMC EC101
• 1945 - 1945 GMC EC102
• 1942 - 1944 GMC EC150
• 1948 - 1949 GMC EF241
• 1948 - 1949 GMC EF242
• 1948 - 1950 GMC FC100
• 1948 - 1950 GMC FC101
• 1949 - 1950 GMC FC102
• 1948 - 1950 GMC FC150
• 1948 - 1950 GMC FC152
• 1950 - 1950 GMC FC250
• 1950 - 1950 GMC FC251
• 1950 - 1950 GMC FC252
• 1950 - 1950 GMC FC253
• 1940 - 1955 GMC Truck

• 1950 - 1952 Pontiac Catalina
• 1942 - 1952 Pontiac Chieftain
• 1948 - 1952 Pontiac Silver Streak
• 1942 - 1952 Pontiac Streamliner
• 1942 - 1952 Pontiac Torpedo

Vehicle Fitment:

Specifications:

Reviews:
