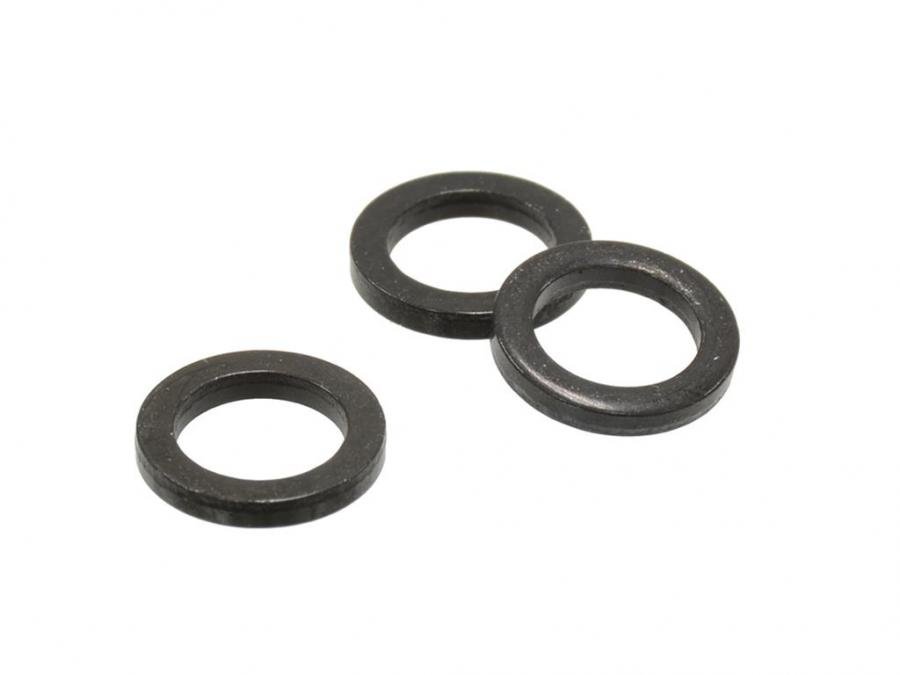

Precision 3-piece headlight motor shims designed for 1997-2004 Chevrolet Corvette to restore operation of the left headlamp door. These thin washers sit between the motor and mounting surface to fine-tune clearance, prevent binding, and eliminate wobble that causes uneven headlight movement or premature wear. Built for durability and easy installation, this shim set is an affordable restoration part that returns pop-up headlights to smooth, reliable operation.
Features:
- Fitment: 1997-2004 Chevrolet Corvette (C5 early years) — direct-fit headlight motor shims
- GM Service Bulletin Number: 00-08-42-002
- Three-piece shim set for incremental adjustment and precise alignment
- Precision-cut steel washers with a corrosion-resistant finish for long service life
- Restores proper motor-to-housing clearance, reducing binding and uneven travel
- Simple, reversible repair — ideal for restoration or replacement of worn mounting shims
- Quick installation with basic hand tools; no specialized parts required
Installation / Application:
- Difficulty: 2/5
- Estimated time: 30-60 minutes
Instructions:
The following information applies to the left front headlamp door motor/actuator only. It does not apply to and should not be performed on the right frontheadlamp door motor/actuator.
- Park vehicle on a level surface, set parking brake, and disconnect the negative battery terminal for safety.
- Open the hood and access the headlight motor by removing any plastic covers or trim that block the motor mounting area.
- Manually position the headlight to a service position if needed to gain clearance to the motor.
- Mark the motor orientation and note existing shim placement so you can replicate or adjust spacing.
- Carefully remove the motor mounting bolts and detach the motor from its mounting flange.

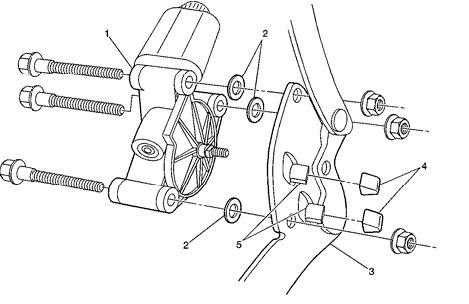

- Install one washer between the left headlamp door motor/actuator and the mounting bracket at each of the three attaching bolt locations.
- Reinstall the motor, tighten mounting bolts to the manufacturer's torque specification, and verify smooth, full-range headlight travel.
- If binding or play persists, repeat shim adjustments until proper alignment and movement are achieved.
- Reinstall any removed covers or trim, reconnect the battery, and perform a final operational check of the headlights.
