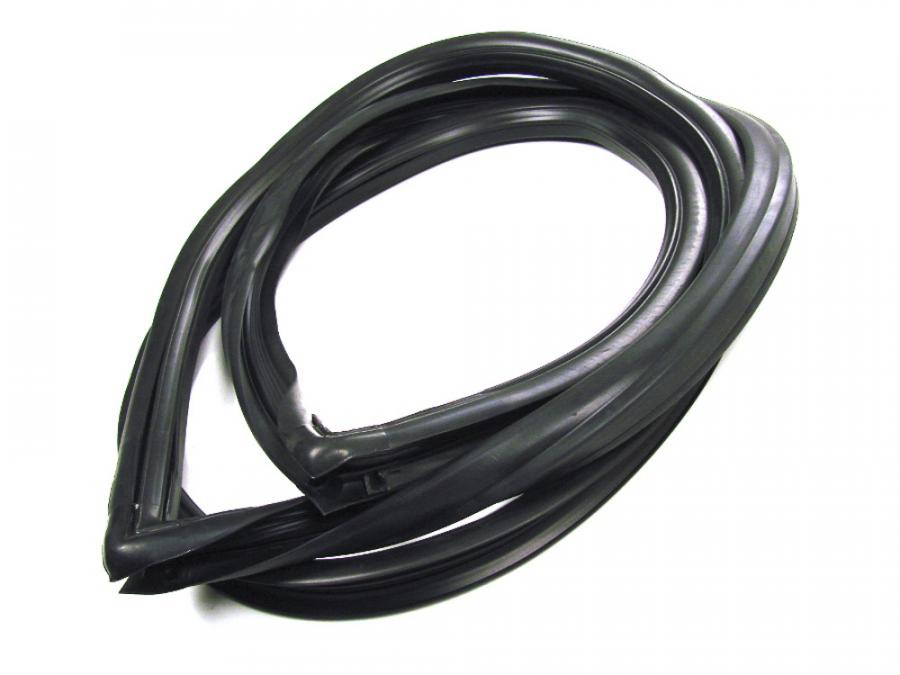

Precision Windshield Weatherstrip Seal With Trim Groove for Steel Trim WCR 685 is a direct-fit replacement weatherstrip designed for vehicles that use the WCR 685 windshield profile with steel exterior molding. Its resilient EPDM rubber construction resists UV, ozone and temperature extremes to provide lasting leak protection, reduce wind noise and cushion the glass from vibration. The integrated trim groove accepts steel trim for secure, factory-correct retention and improved appearance, making this seal ideal for restorations or routine replacement. Built for durability and ease of installation, it restores proper fit and helps protect the vehicle interior from water and drafts.
Features:
- Designed for windshields using the WCR 685 profile with steel exterior trim.
- Made from durable EPDM rubber for UV, ozone and temperature resistance.
- Integrated trim groove secures steel molding for factory-correct fit.
- Helps prevent water leaks, reduces wind noise and cushions windshield glass.
- Suitable for restoration projects or routine replacement of aged seals.
- Easy to seat and retain—provides reliable, long-lasting performance.
Installation / Application:
- Difficulty: 3/5
- Estimated time: 1–2 hours (may vary by vehicle and whether windshield removal is required)
Instructions:
- Park on a level surface and wear safety gear. If windshield removal is required, have a second person or follow vehicle-specific procedures for glass removal.
- Carefully remove the exterior steel trim molding using a trim tool or protected screwdriver to avoid scratching the paint. Set trim aside for reinstallation.
- Cut and remove the old weatherstrip. Use a utility knife and pry tools to fully extract any remnants from the body channel and from the glass bead.
- Clean the channel and glass seating area thoroughly with isopropyl alcohol to remove old adhesive, dirt and oils. Allow to dry.
- Test-fit the new weatherstrip along the windshield opening and over the glass to confirm orientation and fit. Note the trim groove alignment for the steel molding.
- Apply a light soapy water or silicone lubricant to the seal lip to ease installation (do not use petroleum-based products). Position the seal into the body channel or over the windshield bead as appropriate for your vehicle.
- Work the seal evenly around the opening, using a rubber mallet or block of wood to gently seat the seal into place. Avoid overstretching the rubber.
- Reinstall the steel trim into the seal's groove, ensuring it snaps into place with even pressure along the length. Use masking tape to hold sections if needed while seating.
- If the windshield was removed, reinstall it following manufacturer procedures and any required urethane or adhesive instructions. Inspect the seal for continuous contact and proper compression.
- Perform a water test or visual inspection for gaps. Re-trim or reseat any areas as needed for a watertight fit.
About Precision Replacement Parts
Since 1986 Precision Replacement Parts has been a trusted name in the Automotive Glass Industry.
Our knowledge and experience in manufacturing millions of extruded and molded EPDM Rubber, PVC and HDPE based plastics, and various stamped and extruded metal products for the classic and late model industries has allowed Precision to expand our services into multiple product markets.
Along with our own USA based production facility, Precision also partners with 25 different manufactures worldwide with a reputation as a global leader supplying OEM and replacement products to a number of different industries. Our partnerships along with our own in-house manufacturing and fabrication capability gives Precision a unique position in helping to meet the expanding needs of customers everywhere, providing them with a sustained competitive advantage.
Vehicle Fitment:
The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
| Make |
Model |
Years |
| Chevrolet |
Blazer |
1969 - 1970 |
| Chevrolet |
C10 Pickup |
1967 - 1970 |
| Chevrolet |
C10 Suburban |
1967 - 1970 |
| Chevrolet |
C20 Pickup |
1967 - 1970 |
| Chevrolet |
C20 Suburban |
1967 - 1970 |
| Chevrolet |
C30 Pickup |
1967 - 1970 |
| Chevrolet |
C50 |
1967 - 1970 |
| Chevrolet |
K10 Pickup |
1967 - 1970 |
| Chevrolet |
K10 Suburban |
1967 - 1970 |
| Chevrolet |
K20 Pickup |
1967 - 1970 |
| Chevrolet |
K20 Suburban |
1967 - 1970 |
| GMC |
C15/C1500 Pickup |
1967 - 1970 |
| GMC |
C15/C1500 Suburban |
1968 - 1970 |
| GMC |
C25/C2500 Pickup |
1967 - 1970 |
| GMC |
C25/C2500 Suburban |
1968 - 1970 |
| GMC |
C35/C3500 Pickup |
1967 - 1970 |
| GMC |
Jimmy |
1970 |
| GMC |
K15/K1500 Pickup |
1967 - 1970 |
| GMC |
K15/K1500 Suburban |
1967 - 1970 |
| GMC |
K25/K2500 Pickup |
1967 - 1970 |
| GMC |
K25/K2500 Suburban |
1968 - 1970 |
| GMC |
K35/K3500 Pickup |
1968 - 1970 |
